Horizontal Sidewall - Standard Response, Standard Coverage, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

165, 212, 280

Thread:

1/2"

Approval:

UL, C-UL, FM

Response:

Standard Response

SIN Numbers:

TY3311

Wrench:

W9

Tech Data Sheet:

View TFP120

Upright, Pendent, and Recessed Pendent Sprinklers - Quick Response, Standard Coverage, K-factor=2.8, 5.6, & 8.0

Hazard:

Light Hazard, Light Hazard/Ordinary Hazard

Temperature:

165, 212

Thread:

1/2", 3/4"

Approval:

UL, C-UL, NYC, FM, LPCB

Response:

Quick Response

SIN Numbers:

TY1121, TY1221, TY3121, TY3221, TY4121, TY4221

Wrench:

W9

Wrench [Recessed]:

W12

Tech Data Sheet:

View TFP130

Horizontal Sidewall - Quick Response, Standard Coverage, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

165, 212

Thread:

1/2"

Approval:

UL, C-UL, FM, NYC

Response:

Quick Response

SIN Numbers:

TY3321

Wrench:

W9

Tech Data Sheet:

View TFP140

Upright, Pendent, and Recessed Pendent Sprinklers - Standard Response, Standard Coverage, K-factor=2.8, 5.6 & 8.0

Hazard:

All

Temperature:

135, 155, 175, 200, 286, 360, Open

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, LPCB, NYC, VdS

Response:

Standard Response

SIN Numbers:

TY1151, TY1251, TY4851, TY4951, TY4151, TY4251

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP151

Upright, Pendent, and Recessed Pendent Sprinklers - Standard Response, Standard Coverage, K-factor=5.6

Hazard:

All

Temperature:

135, 155, 175, 200, 286, 360, Open

Thread:

1/2"

Approval:

UL, C-UL, FM, LPCB, VdS, CE

Response:

Standard Response

SIN Numbers:

TY315, TY325

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP152

Horizontal and Vertical Sidewall Sprinklers - Standard Response, Standard Coverage, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286, 360, Open

Thread:

1/2"

Approval:

UL, C-UL, FM, LPCB, NYC

Response:

Standard Response

SIN Numbers:

TY3451, TY3351

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP161

Upright, Pendent, and Recessed Pendent Sprinklers - Quick Response, Standard Coverage, K-Factor=2.8, 4.2, 5.6 & 8.0

Hazard:

Light Hazard, Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC, LPCB, VdS

Response:

Quick Response

SIN Numbers:

TY1131, TY1231, TY2131, TY2231, TY4831, TY4931, TY4131, TY4231

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP171

Upright, Pendent, and Recessed Pendent Sprinklers - Quick Response, Standard Coverage, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

1/2"

Approval:

UL, C-UL, FM, LPCB, VdS, CE

Response:

Quick Response

SIN Numbers:

TY313, TY323

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP172

Horizontal and Vertical Sidewall Sprinklers - Quick Response, Standard Coverage, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

1/2"

Approval:

UL, C-UL, FM, NYC, LPCB

Response:

Quick Response

SIN Numbers:

TY3431, TY3331

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP176

RFII Concealed Pendent Sprinklers - Quick & Standard Response, Standard Coverage, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard, All

Temperature:

155, 200

Thread:

1/2"

Approval:

UL, C-UL, NYC, VdS, LPCB, FM

Response:

Quick Response, Standard Response

SIN Numbers:

TY3531, TY3551

Wrench:

RFII

Tech Data Sheet:

View TFP181

RFII-MRI Non-Magnetic Model Concealed Pendent Sprinkler - Quick & Standard Response, Standard Coverage, K-factor=5.6

Hazard:

LH/OH, All

Temperature:

155, 200

Thread:

1/2"

Approval:

UL, C-UL

Response:

Standard Response, Quick Response

SIN Numbers:

TY3550, TY3530

Wrench:

RFII

Tech Data Sheet:

View TFP182

Extra Large Orifice Concealed Pendent Sprinklers - Quick Response, Standard Coverage, K-factor=11.2

Hazard:

Special

Temperature:

160, 212

Thread:

3/4"

Approval:

UL, C-UL

Response:

Quick Response

SIN Numbers:

TY5521

Wrench:

W18

Tech Data Sheet:

View TFP184

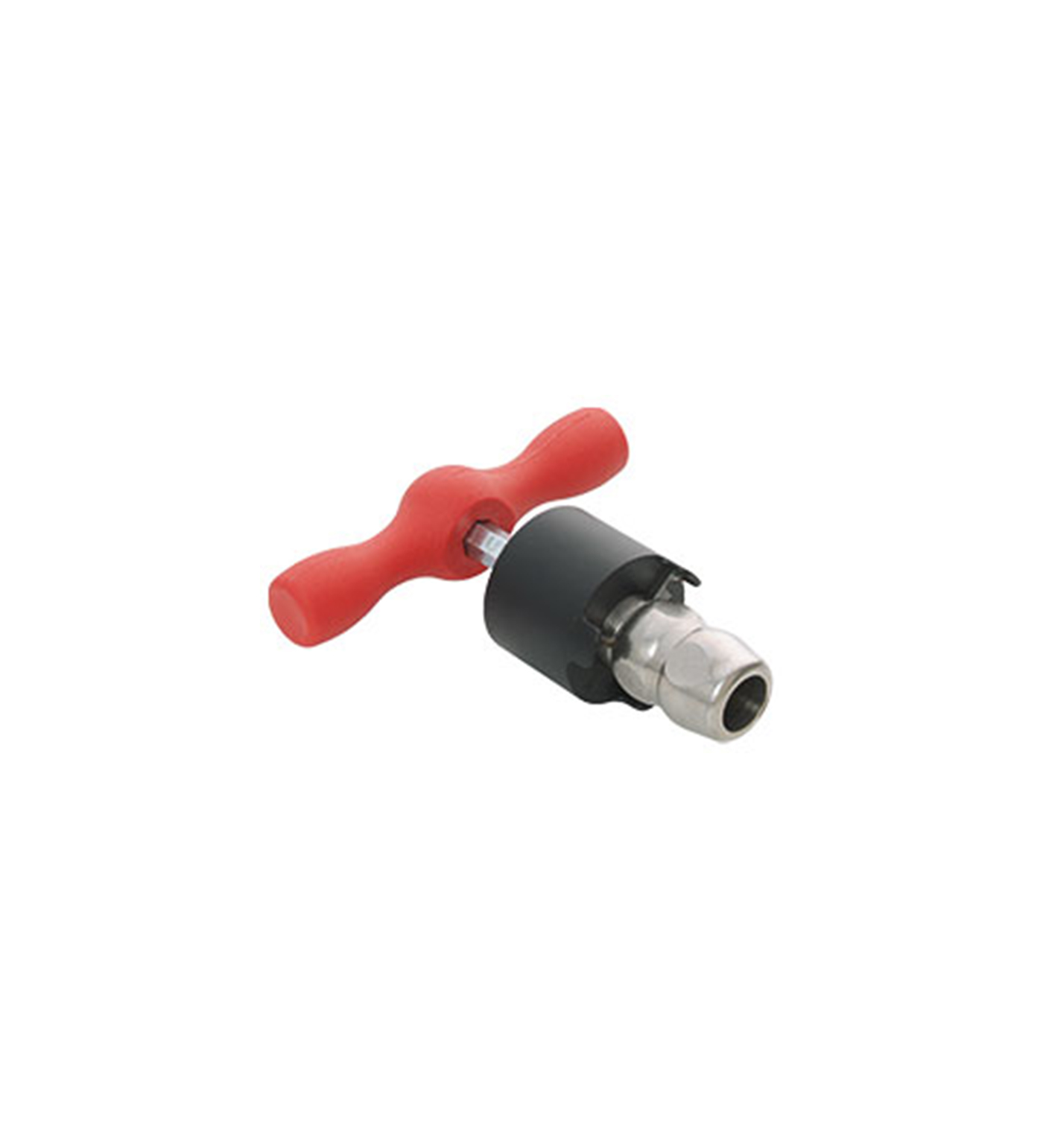

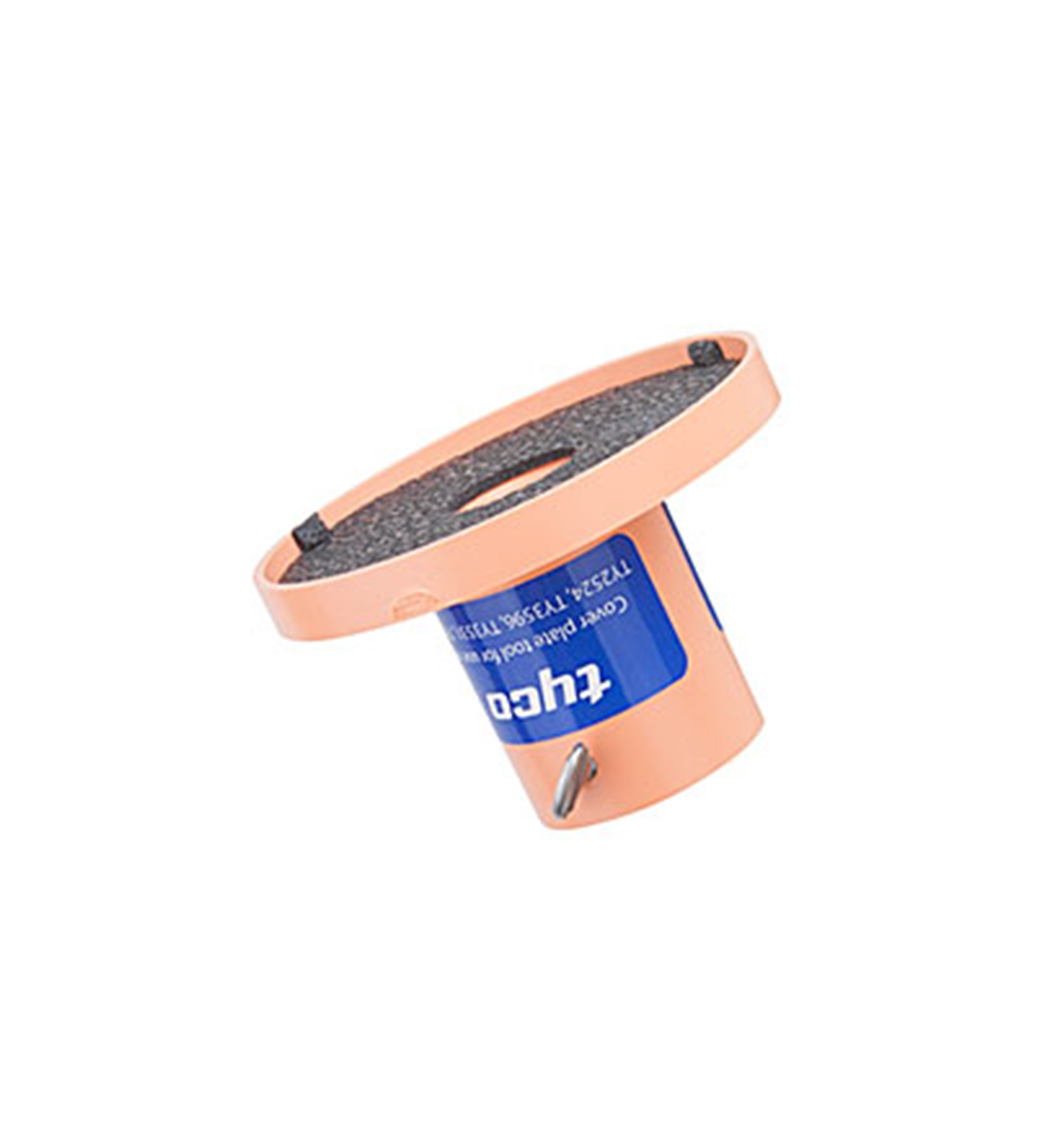

Cover Plate & Protective Cap Utility Tool for Concealed Sprinklers

• Install and Remove Cover Plates for LFII and RFII Concealed Sprinklers
• Also Used for Removing Protective Caps
• Designed for Additional Versatility
• Used with cover plates and protective caps for the following sprinklers: TY2524, TY3531, TY3532, TY3551, TY3596

Flush Sprinkler - Pendent Quick Response, Standard Coverage, K-factor=80 (metric)

Hazard:

Special

Temperature:

74 (C)

Thread:

3/8"

Approval:

VdS

Response:

Quick Response

SIN Numbers:

TY3200

Tech Data Sheet:

View TFP645

Upright and Pendent - Extended Coverage Light and Ordinary Hazard, K-factor=11.2 & 14.0

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286, Open

Thread:

3/4"

Approval:

UL, C-UL, NYC, FM

Response:

QR/SR

SIN Numbers:

TY5137, TY5237, TY6137, TY6237

Wrench:

W3

Wrench [Recessed]:

W22

Tech Data Sheet:

View TFP120

Extended Coverage (Light Hazard) - Pendent and Recessed Pendent Sprinklers, K-factor=8.0

Hazard:

Light Hazard

Temperature:

135, 155

Thread:

3/4"

Approval:

UL, C-UL, FM, NYC

Response:

QR/SR

SIN Numbers:

TY4232

Wrench:

W3

Wrench [Recessed]:

W23

Tech Data Sheet:

View TFP223

Extended Coverage (Light Hazard) - Pendent and Recessed Pendent Sprinklers, K-factor=5.6

Hazard:

Light Hazard

Temperature:

135, 155

Thread:

1/2"

Approval:

UL, C-UL, FM, NYC

Response:

Quick Response

SIN Numbers:

TY3232

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP228

Extended Coverage Ordinary Hazard - Horizontal Sidewall Sprinklers, Standard Response, K-factor=11.2

Hazard:

Ordinary Hazard

Temperature:

155, 200, 200

Thread:

3/4"

Approval:

UL, C-UL, NYC, C-ULL

Response:

Standard Response

SIN Numbers:

TY5332, TY5337

Wrench:

W3

Tech Data Sheet:

View TFP230

Extra Large Orifice Concealed Pendent Sprinklers - Extended Coverage, Quick and Standard Response, K-factor=11.2

Hazard:

Light Hazard

Temperature:

160, 212

Thread:

3/4"

Approval:

UL, C-UL, NYC

Response:

QR/SR

SIN Numbers:

TY5522

Wrench:

W18

Tech Data Sheet:

View TFP152

RFII Concealed Pendent Sprinklers - Extended Coverage, Quick Response, K-factor=5.6

Hazard:

Light Hazard

Temperature:

155, 200

Thread:

1/2"

Approval:

UL, C-UL, NYC

Response:

Quick Response

SIN Numbers:

TY3532

Wrench:

RFII

Tech Data Sheet:

View TFP260

RFII-MRI Non-Magnetic Model Concealed Pendent Sprinkler - Extended Coverage, Quick Response, K-factor=5.6

Hazard:

Light Hazard

Temperature:

155, 200

Thread:

1/2"

Approval:

UL, C-UL

Response:

Quick Response

SIN Numbers:

TY3537

Wrench:

RFII

Tech Data Sheet:

View TFP262

Concealed Horizontal Extended Coverage - Quick Response Light Hazard, Sidewall Sprinklers, K-factor=8.0

Hazard:

Light Hazard

Temperature:

155

Thread:

3/4"

Approval:

UL, C-UL, NYC

Response:

Quick Response

SIN Numbers:

TY4332

Wrench:

W7

Tech Data Sheet:

View TFP265

8.0 K-factor Flat Plate Concealed Horizontal Extended Coverage Quick Response Light Hazard Sidewall Sprinkler

Hazard:

Light Hazard

Temperature:

160°F (71°C) Sprinkler with 139°F (59°C) Cover

Thread:

3/4"

Approval:

UL, C-UL

Response:

Quick Response

SIN Numbers:

TY4522

Wrench:

W37

Tech Data Sheet:

View TFP270

Horizontal Sidewall, Extended Coverage - Quick Response, K-factor=5.6 & 8.0

Hazard:

Light Hazard

Temperature:

165

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Quick Response/ Standard Response

SIN Numbers:

TY3322, TY4322

Wrench:

W9

Tech Data Sheet:

View TFP280

Extended Coverage Horizontal Sidewall Sprinklers - Installations per VdS CEA 4001, Annex E, LH/OH1 Quick Response, K-factor=80 (metric)

• The Model EC-HS, 80 K-factor, Extended Coverage Horizontal Sidewall Sprinklers are extended coverage, decorative 3 mm glass bulb type spray sprinklers.
• They are to be installed per VdS CEA 4001 under smooth ceilings in Light or Ordinary Hazard 1, as well as in accordance with Annex E of VdS CEA 4001 (e.g., commercial occupancies such as churches, restaurant seating areas, hotels, educational facilities, offices, etc.).

Extended Coverage Horizontal Sidewall Sprinklers - Quick and Standard Response (Light Hazard), K-factor=5.6 & 8.0

Hazard:

Light Hazard

Temperature:

135, 155, 175

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

QR/SR

SIN Numbers:

TY3332, TY4332

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP296

Extended Coverage Horizontal Sidewall Sprinklers - Quick & Standard Response (Light Hazard), K-factor=5.6

Hazard:

Light Hazard

Temperature:

135, 155, 200

Thread:

1/2"

Approval:

UL, C-UL, FM, NYC

Response:

QR/SR

SIN Numbers:

TY3302

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP298

Early Suppression Fast Response (ESFR) Sprinkler, now with industry leading highest ceiling-only protection (48 feet) for the narrowest aisles (5 feet), 25.2 K-factor

Hazard:

Storage

Temperature:

165, 212

Thread:

1"

Approval:

UL, C-UL, FM, NYC, LPCB, VdS, CE

Response:

FR

SIN Numbers:

TY9226

Wrench:

W1

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP312

22.4 K-factor Pendent Sprinklers Early Suppression, Fast Response

Hazard:

Storage

Temperature:

165, 212

Thread:

1"

Approval:

UL, C-UL, FM

Response:

FR

SIN Numbers:

TY8223

Wrench:

W1

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP321

Early Suppression, Fast Response - Upright Sprinklers, K-factor=16.8

Hazard:

Storage

Temperature:

165, 212

Thread:

3/4"

Approval:

FM, CE

Response:

FR

SIN Numbers:

TY7126

Wrench:

W21

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP316

Model ESFR-17 Early Suppression, Fast Response Pendent Sprinklers 16.8 K-factor

Hazard:

Storage

Temperature:

165, 212

Thread:

3/4"

Approval:

UL, C-UL, FM

Response:

QR

SIN Numbers:

TY7226

Wrench:

W21

Tech Data Sheet:

View TFP315

Early Suppression, Fast Response Pendent Sprinklers 16.8 K-factor

Hazard:

Storage

Temperature:

165, 212

Thread:

3/4"

Approval:

UL, C-UL, FM

Response:

FR

SIN Numbers:

TY7223

Wrench:

W35

Tech Data Sheet:

View TFP317

Model ESFR-17 16.8 K-factor Pendent Sprinkler Early Suppression, Fast Response

Hazard:

Storage

Temperature:

155, 200

Thread:

3/4"

Approval:

UL, C-UL, FM

Response:

Quick Response

SIN Numbers:

TY7236

Wrench:

W35

Tech Data Sheet:

View TFP322

Dry Type Pendent Sprinklers - Early Suppression Fast Response 16.8 K-factor

Hazard:

Storage

Temperature:

165, 212

Thread:

1-1/4"

Approval:

UL, FM

Response:

FR

SIN Numbers:

TY7229

Wrench:

W26

Tech Data Sheet:

View TFP320

Upright Control Mode Specific Application Sprinkler - Standard Response, 155°F (68°C) &200°F (93°C), K-factor=16.8

Hazard:

Storage

Temperature:

155, 200

Thread:

3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Standard Response

SIN Numbers:

TY7153

Wrench:

W8

Tech Data Sheet:

View TFP330

Upright and Pendent Sprinklers - Standard Response, Standard Coverage, K-factor=16.8

Hazard:

Storage

Temperature:

155, 200, 286

Thread:

3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Standard Response

SIN Numbers:

TY7151, TY7251

Wrench:

W8

Tech Data Sheet:

View TFP332

14.0 K-factor Pendent Sprinklers Early Suppression, Fast Response

Hazard:

Storage

Temperature:

155, 200

Thread:

3/4"

Approval:

UL, C-UL, FM

Response:

FR

SIN Numbers:

TY6236

Wrench:

W34

Tech Data Sheet:

View TFP319

Pendent Sprinkler Electronic Control

Hazard:

Storage

Temperature:

Determined by Control Unit

Thread:

3/4"

Approval:

UL, C-UL

Response:

---

SIN Numbers:

TY720

Wrench:

W21

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP325

Large Drop Upright Sprinkler - Standard Response Control Mode Specific Application, K-factor=11.2

Hazard:

Storage

Temperature:

155, 200, 286

Thread:

3/4"

Approval:

UL, C-UL, NYC

Response:

Standard Response

SIN Numbers:

TY5153

Wrench:

W3

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP335

Pendent &Upright - Standard Coverage, Standard Response, K-factor=11.2

Hazard:

Storage

Temperature:

165, 212, 286

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Standard Response

SIN Numbers:

TY5811, TY5111, TY5211

Wrench:

W3

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP340

Pendent &Upright, Standard Coverage - Standard Response, K-factor=11.2

Hazard:

Storage

Temperature:

155, 200, 286

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Standard Response

SIN Numbers:

TY5851, TY5151, TY5251

Wrench:

W3

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP342

11.2 K-factor Upright and Pendent Sprinklers - Quick Response, Standard Coverage

Hazard:

Storage

Temperature:

155, 200, 286

Thread:

3/4"

Approval:

UL, C-UL, FM, NYC, LPCB, VdS

Response:

Quick Response

SIN Numbers:

TY5131, TY5231

Wrench:

W3

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP344

Intermediate Level, Pendent &Upright - Standard Response, K-factor=5.6 & 8.0

Hazard:

Storage

Temperature:

165, 212, 280

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM

Response:

Standard Response

SIN Numbers:

TY3113, TY3211, TY4113, TY4211

Wrench:

W9

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP350

Intermediate Level Sprinklers, Pendent &Upright - Standard Response, K-factor=5.6 & 8.0

Hazard:

Storage

Temperature:

135, 155, 175, 200, 286, 360

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Standard Response

SIN Numbers:

TY3153, TY3251, TY4153, TY4251

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP351

Upright and Pendent Intermediate Level Sprinklers - Standard Response, K-factor=5.6

Hazard:

Storage

Temperature:

135, 155, 175, 200, 286, 360

Thread:

1/2"

Approval:

UL, C-UL, FM

Response:

Standard Response

SIN Numbers:

TY315, TY325

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP352

Intermediate Level, Pendent &Upright - Quick Response, K-factor=5.6 & 8.0

Hazard:

Storage

Temperature:

165

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Quick Response

SIN Numbers:

TY3123, TY3221, TY4123, TY4221

Wrench:

W9

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP355

Intermediate Level, Pendent &Upright - Quick Response, K-factor=5.6 & 8.0

Hazard:

Storage

Temperature:

135, 155, 175, 200, 286

Thread:

1/2", 3/4"

Approval:

UL, C-UL, FM, NYC

Response:

Quick Response

SIN Numbers:

TY3133, TY3231, TY4133, TY4231

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP356

Upright and Pendent Intermediate Level Sprinklers - Quick Response, K-factor=5.6

Hazard:

Storage

Temperature:

135, 155, 175, 200, 286

Thread:

1/2"

Approval:

UL, C-UL, FM

Response:

Quick Response

SIN Numbers:

TY313, TY323

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP357

Sprinkler Guard for ESFR-25 Pendent Sprinklers

Hazard:

---

Temperature:

---

Thread:

---

Approval:

---

Response:

---

SIN Numbers:

---

Wrench:

---

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP784

Residential Sprinklers 5.8 K-factor Pendent and Recessed Pendent Wet Pipe Systems

Hazard:

Wet

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY3934

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP401

Pendent Wet Pipe Systems, K-factor=3.0

Hazard:

Wet

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY1234

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP402

Pendent Sprinkler, 4.9 K-factor, Wet Pipe Systems

Hazard:

Wet System

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY2236

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP403

Pendent/Recessed Pendent/Concealed - NFPA 13 Optimized Wet Pipe Systems, K-factor=6.9

Hazard:

Wet

Temperature:

155, 175

Thread:

3/4"

Approval:

UL, C-UL, FM, NYC, NSF

Response:

FR

SIN Numbers:

TY4234

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP408

Horizontal Sidewall Wet Pipe and Dry Pipe Systems, K-factor=4.2

Hazard:

Wet or Dry

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, NYC, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY1334

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP410

Horizontal Sidewall Wet Pipe Systems, K-factor=4.4

Hazard:

Wet

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY2334

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP412

Horizontal Sidewall, NFPA 13 Optimized Wet Pipe Systems, K-factor=5.6

Hazard:

Wet

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY3334

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP415

Horizontal Sidewall, NFPA 13 Optimized Wet Pipe Systems, K-factor=5.8

Hazard:

Wet

Temperature:

155, 175

Thread:

1/2"

Approval:

UL, C-UL, FM, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY4334

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP417

Concealed Pendent Sprinklers - Flat Plate Wet Pipe and Dry Pipe Systems, K-factor=4.9

Hazard:

Wet (Ordinary temp also protects)

Temperature:

160, 212

Thread:

1/2"

Approval:

UL, ULC, NYC, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY3596

Wrench:

W18

Tech Data Sheet:

View TFP442

Domed-Plate Concealed Pendent - Wet Pipe and Dry Pipe Systems, K-factor=4.9

Hazard:

Wet or Dry

Temperature:

155

Thread:

1/2"

Approval:

UL, C-UL, NYC

Response:

FR

SIN Numbers:

TY2234

Wrench:

W7

Tech Data Sheet:

View TFP450

Recessed Pendent, Dry Type - Wet Pipe and Dry Pipe Systems, K-factor=4.9

Hazard:

Wet or Dry

Temperature:

155, 175

Thread:

1"

Approval:

UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY2235

Wrench:

W7

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP460

Horizontal Sidewall, Dry Type - Wet Pipe and Dry Pipe Systems, K-factor=4.4

Hazard:

Wet or Dry

Temperature:

155

Thread:

1"

Approval:

UL, NSF/ANSI 61

Response:

FR

SIN Numbers:

TY2335

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP461

Residential Control Panel 1" or 1-1/2" (DN25 or DN40), 175 psi (12,1 bar)

Hazard:

---

Temperature:

---

Thread:

---

Approval:

---

Response:

---

SIN Numbers:

---

Wrench:

---

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP480

Residential Dry Pipe System

Hazard:

---

Temperature:

---

Thread:

---

Approval:

---

Response:

---

SIN Numbers:

---

Wrench:

---

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP485

Series LFII Residential Sprinkler Design Guide

Hazard:

---

Temperature:

---

Thread:

---

Approval:

---

Response:

---

SIN Numbers:

---

Wrench:

---

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP490

Pendent, Upright, and Horizontal Sidewall - Standard Response, Standard Coverage, K-factor=5.6K

Hazard:

All, Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286, 360

Thread:

1"

Approval:

UL, C-UL, FM, NYC, LPCB, CE, VdS

Response:

Standard Response

SIN Numbers:

TY3155, TY3255, TY3355

Wrench:

Pipe Wrench

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP500

Pendent, Upright, and Horizontal Sidewall - Quick Response, Standard Coverage, K-factor=5.6K

Hazard:

All, Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

3/4", 1"

Approval:

UL, C-UL, FM, NYC

Response:

Quick Response

SIN Numbers:

TY3935, TY3735, TY3135, TY3235, TY3335

Wrench:

Pipe Wrench

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP510

Concealed Pendent - Standard and Quick Response, Standard Coverage, K-factor=5.6

Hazard:

All, Light Hazard/Ordinary Hazard

Temperature:

155, 200

Thread:

1"

Approval:

UL, C-UL, NYC

Response:

Standard Response, Quick Response

SIN Numbers:

TY3555, TY3535

Wrench:

Pipe Wrench

Wrench [Recessed]:

RFII

Tech Data Sheet:

View TFP515

Concealed Pendent - Quick Response, Extended Coverage, K-factor=5.6

Hazard:

Light Hazard

Temperature:

155, 200

Thread:

1"

Approval:

UL, C-UL, NYC

Response:

Quick Response

SIN Numbers:

TY3539

Wrench:

Pipe Wrench

Wrench [Recessed]:

RFII

Tech Data Sheet:

View TFP518

Horizontal Sidewall - Standard and Quick Response, Extended Coverage, K-factor=5.6

Hazard:

Light Hazard

Temperature:

135, 155

Thread:

1"

Approval:

UL, C-UL, NYC

Response:

Standard Response, Quick Response

SIN Numbers:

TY3358, TY3338

Wrench:

Pipe Wrench

Wrench [Recessed]:

W17

Tech Data Sheet:

View TFP520

Pendent, Standard Coverage - Standard and Quick Response, K-factor=11.2

Hazard:

Light Hazard, Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

1"

Approval:

UL, C-UL, NYC

Response:

Standard Response, Quick Response

SIN Numbers:

TY5255, TY5235

Wrench:

Pipe Wrench

Wrench [Recessed]:

W17

Tech Data Sheet:

View TFP530

Pendent, Extended Coverage - Light and Ordinary Hazard, K-factor=11.2

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

1"

Approval:

UL, C-UL, NYC

Response:

QR/SR

SIN Numbers:

TY5238

Wrench:

Pipe Wrench

Wrench [Recessed]:

W17

Tech Data Sheet:

View TFP540

Horizontal Sidewall, Extended Coverage - Standard Response, K-factor=11.2

Hazard:

Ordinary Hazard/Extended Coverage

Temperature:

155, 200

Thread:

1"

Approval:

UL, C-UL

Response:

Standard Response

SIN Numbers:

TY5339

Wrench:

W8

Wrench [Recessed]:

W8

Tech Data Sheet:

View TFP550

tainless Steel Dry-Type Sprinklers - Pendent, Horizontal Sidewall, and Extended Coverage Horizontal Sidewall, Standard and Quick Response, K-factor=5.6

Hazard:

All, Light Hazard/Ordinary Hazard

Temperature:

135, 155, 175, 200, 286, 360

Thread:

1"

Approval:

UL, C-UL, LPCB, CE

Response:

Standard Response, Quick Response

SIN Numbers:

TY3250, TY3357, TY3230, TY3337, TY3339

Wrench:

W7

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP560

Dry Sprinkler Boot, For Use With TFP Dry Type Sprinklers

Hazard:

---

Temperature:

---

Thread:

---

Approval:

---

Response:

---

SIN Numbers:

---

Wrench:

---

Tech Data Sheet:

View TFP591

Window Sprinklers - Horizontal and Pendent Vertical Sidewall 5.6 K-factor

Hazard:

Specific App.

Temperature:

155, 200

Thread:

1/2"

Approval:

UL, C-UL, ULC, NYC, ICC

Response:

FR

SIN Numbers:

TY3388, TY3488

Wrench:

W20

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP620

Model CWS Specific Application Concealed Pendent Vertical Sidewall Window Sprinkler 5.6 K-factor

Hazard:

Specific App.

Temperature:

160, 212

Thread:

1/2"

Approval:

UL, C-UL

Response:

FR

SIN Numbers:

TY3498

Wrench:

W39

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP621

Combustible Concealed Space Sprinklers™, K-factor=2.8

Hazard:

Specific App.

Temperature:

175

Thread:

1/2"

Approval:

UL

Response:

FR

SIN Numbers:

TY1189

Wrench:

W20

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP630

Combustible Concealed Space Sprinklers - Upright, K-factor=4.2 and 5.6

Hazard:

Specific App.

Temperature:

175

Thread:

1/2"

Approval:

UL

Response:

FR

SIN Numbers:

TY2189, TY3189

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP632

Combustible Concealed Space Sprinklers - Specific Application, Upright, 4.2 and 5.6 K-factor

Hazard:

Specific App.

Temperature:

200

Thread:

1/2"

Approval:

UL

Response:

FR

SIN Numbers:

TY2199, TY3199

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP633

Flat Spray Sprinklers - Upright and Pendent, K-factor=57, 80, and 115 (metric)

Hazard:

Special

Temperature:

57, 68, 79, 93, 141 (C)

Thread:

3/8"

Approval:

LPCB, VdS

Response:

Quick Response

SIN Numbers:

TY1136

Wrench:

W6

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP635

Flush Sprinkler - Pendent Quick Response, Standard Coverage, K-factor=80 (metric)

Hazard:

Special

Temperature:

74 (C)

Thread:

3/8"

Approval:

VdS

Response:

Quick Response

SIN Numbers:

TY3200

Wrench:

---

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP645

Institutional, Pendent, Standard Coverage - Standard Response, K-factor=5.6

Hazard:

All

Temperature:

165, 212

Thread:

1/2"

Approval:

UL, C-UL, NYC

Response:

Standard Response

SIN Numbers:

TY3290

Wrench:

1509-3

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP650

5.6K Institutional Sprinklers Pendent and Horizontal Sidewall - Quick Response, Standard and Extended Coverage

Hazard:

All

Temperature:

165

Thread:

1/2"

Approval:

UL, C-UL

Response:

Quick Response

SIN Numbers:

TY3281, TY3381, TY3282, TY3382

Wrench:

W25

Wrench [Recessed]:

---

Tech Data Sheet:

View TFP651

Institutional, Horizontal Sidewall - Standard Coverage, Standard Response, K-factor=5.6

Hazard:

Light Hazard/Ordinary Hazard

Temperature:

165

Thread:

1/2"

Approval:

UL, C-UL, NYC

Response:

Standard Response

SIN Numbers:

TY3390

Wrench:

1509-3

Tech Data Sheet:

View TFP654

RAVEN Studio Sprinklers - 5.6K Pendent and Horizontal Sidewall - Quick Response, Standard and Extended Coverage

Hazard:

Light Hazard/Ordinary Hazard, Light Hazard

Temperature:

165

Thread:

1/2"

Approval:

UL, ULC

Response:

Quick Response

SIN Numbers:

TY1281, TY1381, TY1282, TY1382

Wrench:

W25

Tech Data Sheet:

View TFP658

Conventional (Old Style) Sprinklers - Standard Response, K-factor=5.6 and 8.0

Hazard:

Ordinary and Extra High Hazard

Temperature:

135, 155, 175, 200, 286, 360

Thread:

3/4"

Approval:

UL, C-UL, NYC, LPCB, VdS

Response:

Standard Response

SIN Numbers:

TY4651

Wrench:

W6

Tech Data Sheet:

View TFP661

Conventional (Old Style) Sprinklers - Standard Response, K-factor=5.6

Hazard:

Ordinary and Extra High Hazard

Temperature:

135, 155, 175, 200, 286, 360

Thread:

1/2"

Approval:

UL, C-UL, VdS, LPCB-(TY3650 Only)

Response:

Standard Response

SIN Numbers:

TY365

Wrench:

W6

Tech Data Sheet:

View TFP662

Conventional Sprinklers - Special Response, Standard Coverage, K-factor=80 &115 (metric)

Hazard:

Special

Temperature:

57, 68, 79, 93, 141, 182 (C)

Thread:

3/4", 1/2"

Approval:

VdS

Response:

Standard Response

SIN Numbers:

TY4641, TY3641

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP663

Conventional (Old Style) Sprinklers - Quick Response, K-factor=5.6 & 8.0

Hazard:

Ordinary and Extra High Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

3/4"

Approval:

UL, C-UL, NYC, LPCB, VdS

Response:

Quick Response

SIN Numbers:

TY4631

Wrench:

W6

Tech Data Sheet:

View TFP666

Conventional (Old Style) Sprinklers - Quick Response, K-factor=5.6

Hazard:

Ordinary and Extra High Hazard

Temperature:

135, 155, 175, 200, 286

Thread:

1/2"

Approval:

UL, C-UL, VdS, LPCB-(TY3630 Only)

Response:

Quick Response

SIN Numbers:

TY363

Wrench:

W6

Tech Data Sheet:

View TFP667

Sprinklers Alternate Materials of Construction - Stainless Steel, SMO, and Titanium

Hazard:

All

Temperature:

135, 155, 175, 200, 286, 360

Thread:

1/2", 3/4"

Approval:

UL, C-UL, LPCB, Lloyds, LPCB

Response:

Standard Response, Quick Response

SIN Numbers:

TY8191, TY8181, TY8281, TY8681, TY8381, TY8481, TY8182, TY8282, TY8682, TY8382, TY8482, TY8183, TY8283, TY8683, TY8383, TY8493, TY8393, TY8693, TY8291, TY8691, TY8391, TY8491, TY8192, TY8292, TY8692, TY8392, TY8293, TY8193, TY8483, TY8492, TY9181, TY9281, TY9291, TY9191, TY9681, TY9691

Wrench:

W6

Wrench [Recessed]:

W7

Tech Data Sheet:

View TFP680

High Temperature, Pendent & Upright - Standard Response, K-factor=5.6 &8.0

Hazard:

All

Temperature:

400, 500, 650

Thread:

1/2", 3/4"

Approval:

FM, UL, C-UL, LPCB, UL

Response:

Standard Response

SIN Numbers:

TY3191, TY3296, TY4191, TY4292

Wrench:

W11

Tech Data Sheet:

View TFP690

Poly-Stainless Sprinklers - TY-B and TY-FRB

Hazard:

---

Temperature:

---

Thread:

---

Approval:

---

Response:

---

SIN Numbers:

---

Wrench:

---

Tech Data Sheet:

TFP151 TY-B - Upright and Pendent

TFP161 TY-B - Horizontal Sidewall

TFP171 TY-FRB - Upright and Pendent

TFP176 TY-FRB - Horizontal Sidewall

Tech Data Sheet:

View TFP710

Flexible Sprinkler Hose Assembly

Tech Data Sheet:

View TFP720

Tech Data Sheet:

View TFP725

for Automatic Sprinkler Recessed Installation

Tech Data Sheet:

View TFP770

Style 65 - One-Piece Flush Escutcheons - Style 401 - Two-Piece Deep Sprinkler Escutcheons

Tech Data Sheet:

View TFP777

Two-Piece Flush Escutcheon, 3/4" NPT

Tech Data Sheet:

View TFP778

Sprinkler Guards, Shields, and Intermediate Level Accessories

Tech Data Sheet:

View TFP780

Model GUMC/GUWSU Sprinkler Guards For Use With Series TY-B/TY-FRB Sprinklers

Tech Data Sheet:

View TFP781

Sprinkler Guard for ESFR-25 Pendent Sprinklers

Tech Data Sheet:

View TFP784

3, 6, or 12 Capacity

Tech Data Sheet:

View TFP785

Directional Spray Nozzles, Open, Medium Velocity

Tech Data Sheet:

View TFP802

Directional Spray Nozzles, Open, Medium Velocity

Tech Data Sheet:

View TFP806

Directional Spray Nozzles, Open Medium Velocity

Tech Data Sheet:

View TFP807

Corrosion Resistant Duct Nozzle, Open Medium Velocity

Tech Data Sheet:

View TFP808

Type MV-R Reverse Action and Type MV-T Tank Top Open Nozzles Medium Velocity

Tech Data Sheet:

View TFP809

Mulsifyre Directional Spray Nozzles, Open, High Velocity

Tech Data Sheet:

View TFP810

Flush Sprinkler - Pendent Quick Response, Standard Coverage, K-factor=80 (metric)

Tech Data Sheet:

View TFP811

Velocity Directional Spray Nozzles, Open, Non-Automatic

Tech Data Sheet:

View TFP815

Crossflow

Tech Data Sheet:

View TFP830

Exposure Protection Sprinklers Window Type

Tech Data Sheet:

View TFP835

Upright and Pendent Foam-Water Sprinklers, K=3.0

Tech Data Sheet:

View TFP840

Conventional (Old Style) Sprinklers - Standard Response, K-factor=5.6 and 8.0

Tech Data Sheet:

View TFP852

Horizontal Spray Nozzle, Open K-factor 25.2 (K360)

Tech Data Sheet:

View TFP850

For The Protection of Ventilation Ductwork Handling Corrosive Gases

Tech Data Sheet:

View TFP870

Open Sprinklers and Protectospray Nozzles

Tech Data Sheet:

View TFP890

Retard Chamber For Variable Pressure Wet Pipe Sprinkler Systems 300 psi (20,7 bar)

Features :

• The Model RC-1 Retard Chamber is required in installations that will be subject to pressure variations, as are generally associated with public water supplies, in order to help prevent false alarms
• Intended for use in a wet type automatic sprinkler system riser
• Maximum rated working pressure is 300 psi (20,7 bar)
• Listings and Approvals: UL, ULC, & FM for use with: Model AV-1-300 Alarm Check Valves
• UL, ULC, FM, VdS, & LPCB for use with the following Alarm Check Valves: Model AV-1-175, Gem Model F20/F200/F2001, Gem Model A, Star Model S30/S300/S3001

Tech Data Sheet:

View TFP920

Water Motor Alarm - Hydraulically Operated Mechanical Sprinkler Alarm

Features :

• Hydraulically operated outdoor alarm for use with appropriate fire protection system valves (alarm, dry, deluge)
• Supplied by dedicated outlet in valve trim line or retard chamber
• Uses energy-efficient lightweight impeller design capable of producing very high sound level
• Corrosion-resistant aluminum alloy gong, gong-mount, and water motor housing
• Polymer bearings do not require lubrication
• Must be mounted to a rigid wall surface
• Can accommodate range of wall thicknesses from 2" to 18" (50 to 450 mm)
• Furnished with approved 3/4" (20 mm) Y-strainer for use in alarm line
• Maximum rated working pressure is 300 psi (20,7 bar)
• Listings and Approvals: UL, ULC, FM, VdS, & LPCB

Tech Data Sheet:

View TFP921

Riser Check ValvE - 2" through 8"

Features :

• Sizes 2" (DN50) through 12" (DN300)
• Intended for use in a wet type automatic sprinkler system riser
• Furnished with grooved ends that are compatible with grooved pipe and couplings
• Can be installed with ANSI class 150 or 300 Flanges utilizing flange adapters
• Designed with a removable cover for ease of field maintenance
• Standard seal is grade "E" EPDM
• Maximum rated working pressure is 300 psi (20,7 bar)
• Listings and Approvals: UL, C-UL, & FM

Tech Data Sheet:

View TFP950

Model RM-1 Riser Manifold Commercial and Residential

Features :

• Proprietary Flow Switch Connection with flat surface for secure sealing and positioning
• Robust Grooved Test & Drain Connection - Combining two valves in one with a grooved fitting to ensure a more secure connection
• Pressure Gauge - Rated for 300psi and included with all models
• New Manifold Casting - Helps meet NFPA 13, 13D & 13R requirements
• COMMERCIAL
• Sizes: 1-1/2nd GxG:2″, 2-1/2″, 3″, 4″, 6″
• Includes test & drain valve, flowswitch and pressure gauge
• 300 psi working pressure
• RESIDENTIAL
• Sizes: 1″ FTxFT, 1-1/2″ MTxFT, 2″ GxG
• Includes Drain valve, flow switch and pressure gauge
• 300 psi working pressure

Tech Data Sheet:

View TFP963

Residential Shut-Off Valve, Dual-Purpose Water Supply, Domestic and Fire Sprinkler System

Features :

• 1" (DN25) size is designed for NFPA 13D system needs. The 2" (DN50) is designed for either NFPA 13D or NFPA 13R.
• During the design of a residential sprinkler system, domestic water use should be taken into consideration unless the domestic supply can be stopped when a sprinkler operates
• When a sprinkler operates, water supply is automatically diverted from the domestic system to the sprinkler system
• Eliminates the need for pumps, pressurized storage tanks, or electrically operated domestic shutoff valves
• Valve automatically resets after the fire protection system is returned to normal service
• Maximum rated working pressure is 175 psi (12,1 bar)
• Listings and Approvals: UL, C-UL, & NSF

Tech Data Sheet:

View TFP980

Model AV-1-300 Alarm Valve - With and Without Model RC-1 Retard Chamber European Conformity Valve Trim

Features :

• Sizes DN65 thru DN200 (2-1/2" thru 8")
• AV-1 Alarm Valves may be installed vertically or horizontally
• Groove x Groove, Flange x Flange, Flange x Groove Alarm Valves are divided seat ring, rubber-faced clapper, check type, water flow alarm valves
• For use in wet pipe (automatic sprinkler) fire protection systems
• Automatically actuates electrically and/or hydraulically operated alarms when there is a steady flow equivalent to the discharge rate for one or more sprinklers
• Optional Retard Chamber used in installations subject to variable pressure (generally associated with public water supplies) to help prevent false alarms
• Available pre-assembled with modular trim to provide a quick and convenient method for trimming valve risers. Contact TFP for details
• Working water pressure range is 1,4 to 20,7 bar (20 to 300 psi )
• Listings and Approvals: FM, VdS and LPCB

Tech Data Sheet:

View TFP990

Model DPV-1 Dry Pipe Valve, DN100 and DN150 - Model ACC-1 Dry Pipe Valve Accelerator, European Conformity Valve Trim, 16 bar

Features :

• The TYCO Model DPV-1 Dry Pipe Valves are differential valves used to automatically control the flow of water into dry pipe fire protection sprinkler systems upon operation of one or more automatic sprinklers.
• The Model DPV-1 Dry Pipe Valve also provides for actuation of fire alarms upon system operation.
• Features for the Model DPV-1 Dry Pipe Valve are as follows:
• External reset,
• 16 bar pressure rating,
• Unique offset single clapper design enabling a simple compact valve to minimize installation labor,
• Ductile iron construction to ensure a lightweight valve to minimize shipping cost,
• A variety of inlet and outlet connections,
• Simple reset procedure through the elimination of priming water

Tech Data Sheet:

View TFP1090

Electronic Dry Pipe Accelerator Quick-Opening Device for Dry Pipe Systems

Electronic doesn't mean complex - VIZOR has just one moving part, compared to the many complex parts of a traditional mechanical accelerator.

For VIZOR, electronic means smart. The accelerator takes two pressure readings every second, allowing it to differentiate between normal system pressure loss over time and the operation of a sprinkler.

Features :

• Press once to test, press three times to reset
• The VIZOR Accelerator's unique air-pressure monitoring technology triggers on detection of a sustained drop in air pressure.
• The energized solenoid valve opens to permit system air pressure into the intermediate chamber of the dry pipe valve.
• The accelerator immediately energizes its internal solenoid valve.
• The pressurized intermediate chamber trips the dry pipe valve to quickly flow water into the sprinkler piping.

Tech Data Sheet:

View TFP1105

Dry Pipe Valve Accelerator

Features :

• Designed for use with Model DPV-1 dry pipe valves
• Speeds operation of the dry pipe valve upon loss of air pressure
• Automatically adjusts to small or slow changes in system pressure but trips upon a rapid and steady drop in pressure
• Designed to trip when system air pressure drops at a rate exceeding approximately 1 psi/minute (0.07 bar/min)
• Upon tripping, it transmits system air pressure to the intermediate chamber of the dry pipe valve, which neutralizes the differential pressure holding the valve closed and opens the waterway clapper
• Rated for use at a maximum water supply pressure of 250 psi (17,2 bar) and a maximum system air (or nitrogen) pressure of 70 psi (4,8 bar)
• Listings and Approvals: UL, ULC, FM, and LPCB

Tech Data Sheet:

View TFP1112

Deluge Valve - Vertical or Horizontal, Diaphragm Style, 250 psi, 1-1/2" thru 8"

Features :

• The Model DV-5 Deluge Valves are diaphragm type valves designed for vertical or horizontal installation and for fire protection system service.
• They are used as "automatic water control valves" in deluge, preaction, and special types of fire protection systems such as foam-water and double interlock systems.
• The diaphragm style design of the DV-5 Valve allows external resetting - providing for easy resetting of a deluge or preaction system without having to open a valve handhole cover to manually reposition a clapper and/or latch mechanism.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1305

Aluminum Bronze Deluge Valve - Diaphragm Style, 250 psi, 2" thru 8"

Features :

• The Tyco Aluminum Bronze Model DV-5 Deluge Valves are available to provide an alternative materials of construction to that of the standard nylon coated ductile iron Model DV-5 deluge Valve described in Technical Data Sheet TFP1305, TFP1335, and TFP1338.
• The alternate materials of construction are offered for use in corrosive environments where the standard nylon coated ductile iron would not be suitable, i.e. situations where the system is continuously charged with sea water.
• Listings and Approvals: FM and VdS

Tech Data Sheet:

View TFP1305A

DV-5 Deluge Valve, Diaphragm Style, 1-1/2" thru 8" (DN40 thru DN200), Deluge System - Wet Pilot Actuation

Features :

• Wet Pilot Actuation
• Opening of a wet pilot sprinkler, releases water from the Diaphragm Chamber faster than it can be replenished through the 1/8 inch (3,2 mm) restriction provided by the Model ASV-1 Automatic Shut-Off Valve in the diaphragm supply connections.
• This results in a rapid pressure drop in the Diaphragm Chamber and the force differential applied through the Diaphragm that holds it in the set position is reduced below the valve trip point. The water supply pressure then forces the Diaphragm open permitting water to flow into the system piping, as well as through the Alarm Port to actuate the system alarms.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1310

DV-5 Deluge Valve, Diaphragm Style, 1-1/2" thru 8" (DN40 thru DN200), Deluge System - Dry Pilot Actuation

Features :

• Dry Pilot Actuation
• Opening of a dry pilot sprinkler, releases pneumatic pressure from the pilot line. In turn, the Dry Pilot Actuator opens and releases water from the Diaphragm Chamber faster than it can be replenished through the 1/8 inch (3,2 mm) restriction provided by the Model ASV-1 Automatic Shut-Off Valve in the diaphragm supply connections.
• This results in a rapid pressure drop in the Diaphragm Chamber and the force differential applied through the Diaphragm that holds it in the set position is reduced below the valve trip point. The water supply pressure then forces the Diaphragm open permitting water to flow into the system piping, as well as through the Alarm Port to actuate the system alarms.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1315

DV-5 Deluge Valve, Diaphragm Style, 1-1/2" thru 8" (DN40 thru DN200), Deluge System - Electric Actuation

Features :

• Electric Actuation
• Operation of an electrical device such as a heat sensitive thermostat, smoke detector, or electrical manual control station signals the deluge valve releasing panel to energize the Solenoid Valve. In turn, the energized Solenoid Valve opens to release water from the Diaphragm Chamber faster than it can be replenished through the 1/8 inch (3,2 mm) restriction provided by the Model ASV-1 Automatic Shut-Off Valve in the diaphragm supply connections.
• This results in a rapid pressure drop in the Diaphragm Chamber and the force differential applied through the Diaphragm that holds it in the set position is reduced below the valve trip point. The water supply pressure then forces the Diaphragm open permitting water to flow into the system piping, as well as through the Alarm Port to actuate the system alarms.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1320

Deluge Valve with Remote-Resetting Trim 2" to 8" (DN50 to DN200)

Features :

• The TYCO Model DV-5 Deluge Valve with Remote-Resetting Trim is a quick-opening, hydraulically operated, differential-type valve designed for fire protection system service.
• For use as an automatic water control valve in a deluge fire protection system, this diaphragm-style valve can be opened and closed during a full-flow condition from a remote location.
• Remote-resetting feature provides the ability to reset the valve from one or more locations.
• Compact, space-saving design reduces valve room footprint and construction costs.
• Electric actuation is compatible with all types of automatic and manual release options.
• Actuation of fire alarms upon system operation is provided.
• Listings and Approvals: UL and VdS.

Tech Data Sheet:

View TFP1331

Deluge Valve with Remote-Resetting - Pressure-Reducing Trim 4" and 6" (DN100 and DN150)

Features :

• The TYCO Model DV-5 Deluge Valve with Remote-Resetting, Pressure-Reducing Trim is a diaphragm-style valve that depends upon water pressure in the Diaphragm Chamber to hold the Diaphragm closed against water supply pressure.
• Pressure-reducing function maintains pre-set outlet pressure.
• Remote-resetting feature provides the ability to reset the valve from one or more locations.
• Compact, space-saving design reduces valve room footprint and construction costs.
• Listings and Approvals: UL

Tech Data Sheet:

View TFP1112

Multiple Jet Controls - DN20, DN25, DN40, and DN50, 12 bar BSPT Inlet & Outlets Threads

Features :

• The TYCO Series MJC Multiple Jet Controls are control valves with self-contained heat actuating units.
• They are designed for use as the system control valve for fire protection systems of limited size, where the MJCs are located within the protected area.
• The MJCs are typically used as an auxiliary deluge valve to control the flow of water to specific areas within a larger wet pipe, dry pipe, or deluge system. As such they can be used with supply piping from either a wet pipe system or a dry pipe or deluge system. In all cases, waterflow alarms are provided by the main automatic control valve for the system that supplies the supply line to the Series MJC Multiple Jet Controls (e.g., alarm valves, dry pipe valves, or deluge valves).
• Listings and Approvals: LPCB

Tech Data Sheet:

View TFP1346

Dry Pilot Actuator For Deluge and Preaction Systems Dry Pilot Release Service

Features :

• Dry Pilot Actuator is an auxiliary releasing device.
• When the Model DP-1 actuates, it permits water pressure to be released from the deluge or preaction valve differential chamber, thereby allowing the deluge or preaction valve to open.
• Designed for Preaction Valves having double interlock electric/pneumatic release.
• Rated for use at a maximum water supply pressure of 250 psi (17,2 bar) and a maximum system air (or nitrogen) pressure of 50 psi (3,4 bar).
• Listings and Approvals: UL, ULC, FM, and LPCB.

Tech Data Sheet:

View TFP1380

Manual Control Station - For Deluge And Preaction Systems Manual Release Service

Features :

• Provides a tamper resistant means for emergency release
• Interconnection with the valves may be direct via hydraulic (wet) pilot line or indirect via pneumatic (dry) pilot line to a Model DP-1 Dry Pilot Actuator
• Rated for use in services up to 250 psi (17.2 bar)
• Listings and Approvals: UL, C-UL and FM

Tech Data Sheet:

View TFP1382

Automatic Shut-Off Valve Trim Component - For Model DV-5 Deluge Valve Used In Deluge and Preaction Systems

Features :

• Intended for use with the Model DV-5 Deluge Valve in deluge and preaction systems
• Prevents inadvertent resetting of the DV-5 Valve
• Maximum Working Water Pressure: 250 psi (17,2 bar)
• Listings and Approvals: UL, C-UL, & FM

Tech Data Sheet:

View TFP1384

Fail-Safe Valve - for use with DV-5 Deluge Valves Used in Deluge and Preaction Systems

Features :

• Intended for use with the Model DV-5 Deluge Valve in certain types of trim arrangements for deluge and preaction systems
• Prevents inadvertent resetting of the DV-5 Valve
• Maximum Working Water Pressure: 250 psi (17,2 bar)
• Listings and Approvals: UL, C-UL, & FM

Tech Data Sheet:

View TFP1386

Fixed-Temperature Release - For Deluge and Preaction Systems, Wet or Dry Pilot Release Service

Features :

• Fixed-temperature, heat detector intended for wet or dry pilot release service
• Can be used for pilot line service, instead of standard sprinklers, to activate deluge and preaction systems equipped with either wet or dry pilot line detection
• Corrosion resistant assembly option for outdoor applications (Teflon® coated)
• Maximum 40 ft. x 40 ft. spacing

Tech Data Sheet:

View TFP1388

DV-5A Automatic Water Control Valve Deluge Fire Protection Systems 1-1/2 Inch to 8 Inch (DN40 to DN200)

Features :

• TYCO DV-5A Automatic Water Control Valves are diaphragm type valves that can be used in deluge fire protection systems
• Easy external resetting
• Offered Pre-trimmed
• Approvals - UL and C-UL Listed FM Approved VdS Approved* LPCB Approved
• Corrosion resistant
• The maximum pressure rating is as follows:
• Wet Pilot Actuation Trim is 300 psi (20,7 bar)
• Dry Pilot Actuation Trim is 250 psi (17,2 bar)
• Electric Actuation Trim is dependent on separately ordered solenoid valve. (Refer TFP2180)

Tech Data Sheet:

View TFP1306

DV-5A Automatic Water Control Valve Remote-Resetting Deluge Fire Protection Systems 1-1/2 Inch to 8 Inch (DN40 to DN200)

Features :

• TYCO DV-5A Automatic Water Control Valves are diaphragm type valves that can be used in remote-resetting deluge fire protection systems.
• Remote-resetting feature provides the ability to reset the valve from one or more locations.
• Offered Pre-trimmed.
• Compact, space-saving design reduces valve room footprint and construction costs.
• Electric actuation is compatible with many types of automatic and manual release options.
• Approvals - UL and C-UL Listed FM Approved VdS Approved
• The Maximum pressure rating of Deluge Remote-Resetting Trim is 232 psi (16 bar) dependent on separately ordered solenoid valve.
• Corrosion resistant.

Tech Data Sheet:

View TFP1325

DV-5A Automatic Water Control Valve Remote-Resetting, Pressure-Reducing Deluge Fire Protection Systems

Features :

• TYCO DV-5A Automatic Water Control Valves are diaphragm type valves that can be used in remote-resetting deluge fire protection systems.
• Pressure-Reducing function main�tains pre-set outlet pressure.
• Compact, space-saving design reduces valve room footprint and construction costs.
• Electric actuation is compatible with many types of automatic and manual release options.
• Actuation of fire alarms upon system operation is provided.
• Approvals - UL and C-UL
• The Maximum pressure rating of Deluge Remote-Resetting Trim is 250 psi (16 bar) dependent on separately ordered solenoid valve.
• Corrosion resistant.

Tech Data Sheet:

View TFP1326

Multiple Jet Controls - DN20, DN25, DN40, and DN50, 12 bar BSPT Inlet & Outlets Threads

Features :

• The TYCO Series MJC Multiple Jet Controls are control valves with self-contained heat actuating units.
• They are designed for use as the system control valve for fire protection systems of limited size, where the MJCs are located within the protected area.
• The MJCs are typically used as an auxiliary deluge valve to control the flow of water to specific areas within a larger wet pipe, dry pipe, or deluge system. As such they can be used with supply piping from either a wet pipe system or a dry pipe or deluge system. In all cases, waterflow alarms are provided by the main automatic control valve for the system that supplies the supply line to the Series MJC Multiple Jet Controls (e.g., alarm valves, dry pipe valves, or deluge valves).
• Listings and Approvals: LPCB

Tech Data Sheet:

View TFP1346

Dry Pilot Actuator For Deluge and Preaction Systems Dry Pilot Release Service

Features :

• Dry Pilot Actuator is an auxiliary releasing device
• When the Model DP-1 actuates, it permits water pressure to be released from the deluge or preaction valve differential chamber, thereby allowing the deluge or preaction valve to open
• Designed for Preaction Valves having double interlock electric/pneumatic release
• Rated for use at a maximum water supply pressure of 250 psi (17,2 bar) and a maximum system air (or nitrogen) pressure of 50 psi (3,4 bar)
• Listings and Approvals: UL, ULC, FM, and LPCB

Tech Data Sheet:

View TFP1380

Manual Control Station - For Deluge And Preaction Systems Manual Release Service

Features :

• Provides a tamper resistant means for emergency release
• Interconnection with the valves may be direct via hydraulic (wet) pilot line or indirect via pneumatic (dry) pilot line to a Model DP-1 Dry Pilot Actuator
• Rated for use in services up to 250 psi (17.2 bar)
• Listings and Approvals: UL, C-UL and FM

Tech Data Sheet:

View TFP1382

Model MRA-1 Manual Reset Actuator Trim Component For DV-5A Automatic Water Control Valves

Features :

• The TYCO Model MRA-1 Manual Reset Actuator is designed for use with the TYCO DV-5A Automatic Water Control Valve
• Supplied as a trim component for the DV-5A Valve, the Model MRA-1 Manual Reset Actuator is used to "hydraulically latch" the DV-5A Valve in the tripped position upon activation of the DV-5A.

Tech Data Sheet:

View TFP1387

Fixed-Temperature Release - For Deluge and Preaction Systems Wet or Dry Pilot Release Service

Features :

• Fixed-temperature, heat detector intended for wet or dry pilot release service
• Can be used for pilot line service, instead of standard sprinklers, to activate deluge and preaction systems equipped with either wet or dry pilot line detection
• Corrosion resistant assembly option for outdoor applications (Teflon® coated)
• Maximum 40 ft. x 40 ft. spacing

Tech Data Sheet:

View TFP1388

Preaction System with DV-5 Deluge Valve Single Interlock, Supervised - Dry Pilot Actuation 1-1/2" thru 8" (DN40 thru DN200)

Features :

• Single Interlock, Supervised - Dry Pilot Actuation
• The Model DV-5 Supervised Single Interlock Preaction System with Dry Pilot Actuation utilizes automatic sprinklers and a supplemental detection system.
• The supplemental detection system is comprised of dry pilot lines and pilot sprinklers. Actuation of the detection system automatically operates (releases) the Model DV-5 Deluge Valve, allowing water to flow into the sprinkler piping system and to be discharged from any sprinklers that may be open.
• Listings and Approvals: UL and C-UL

Tech Data Sheet:

View TFP1415

Preaction System with DV-5 Deluge Valve Single Interlock, Supervised - Electric Actuation 1-1/2" thru 8" (DN40 thru DN200)

Features :

• Single Interlock, Supervised - Electric Actuation
• The Model DV-5 Supervised Single Interlock Preaction System with Electric Actuation utilizes automatic sprinklers and a supplemental detection system.
• The supplemental detection system is typically comprised of 24 VDC heat detectors, smoke detectors, manual pull stations, etc. Actuation of the detection system automatically operates (releases) the Model DV-5 Deluge Valve, allowing water to flow into the sprinkler piping system and to be discharged from any sprinklers that may be open.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1420

Preaction System with DV-5 Deluge Valve, Double Interlock - Electric/Pneumatic Actuation 1-1/2" thru 8" (DN40 and DN200)

Features :

• Double Interlock - Electric/Pneumatic Actuation
• The Model DV-5 Double Interlock Preaction System with Electric/Pneumatic Actuation is designed for use in applications, such as refrigerated areas, requiring the maximum degree of protection against inadvertent flooding of the sprinkler system piping.
• The Model DV-5 Double Interlock Preaction System with Electric/Pneumatic Actuation utilizes a Model DV-5 Deluge Valve and a Riser Check Valve. The Riser Check Valve isolates the Deluge Valve from the system air pressure. The releasing trim for the Deluge Valve utilizes a Solenoid Valve and a Dry Pilot Actuator in a series configuration. The system air pressure holds the Dry Plot Actuator closed, whereas the Solenoid Valve remains closed until it is electrically energized by a Deluge Valve Releasing Panel. The Releasing Panel is operated by either a fire detection device or manual electric pull station.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1460

Preaction System with DV-5 Deluge Valve Double Interlock - Electric/Electric Actuation 1-1/2" thru 8" (DN40 thru DN200)

Features :

• Double Interlock - Electric/Electric Actuation
• The Tyco Model DV-5 Double Interlock Preaction System with Electric/ Electric Actuation is designed for use in applications, such as refrigerated areas, requiring the maximum degree of protection against inadvertent flooding of the sprinkler system piping.
• The Model DV-5 Double Interlock Preaction System with Electric/Electric Actuation utilizes a Model DV-5 Deluge Valve and a Riser Check Valve. The Riser Check Valve isolates the Deluge Valve from the system air pressure. The releasing trim for the Deluge Valve utilizes a Solenoid Valve that is operated by energizing the releasing circuit of a Cross-Zone Deluge Valve Releasing Panel.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1465

Preaction Type A Valve - EN12845 Compliance DN40 to DN200, 16 Bar (European Conformity)

Features :

• Fire protection systems controlled by the TYCO Model DV-5 Preaction Type A Valve utilize automatic sprinklers and a supplemental detection system.
• The supplemental detection system is typically comprised of 24 VDC heat detectors, smoke detectors, and manual pull stations.
• Actuation of the detection system automatically operates (releases) the Model DV-5 Deluge Valve, allowing water to flow into the sprinkler piping system and to be discharged from any sprinklers that may subsequently open. In the event of loss of power, the Model DV-5 Deluge Valve with Preaction Type A Trim will act as a regular dry-pipe valve station.
• The Preaction Type A assembly is rated for a maximum service pressure of 16 bar.
• These Model DV-5 Preaction Type A Valves have been designed in accordance with the EN12845 Standard describing Preaction Type A Trim criteria. This standard defines operation as a dry pipe system activated by an automatic fire detection system but not operation of sprinklers
• Listings and Approvals: VdS

Tech Data Sheet:

View TFP1484

Model DPV-1 Preaction Type B Valves EN12845 Compliance

Features :

• The TYCO Model DPV-1 Preaction Type B Valves automatically control the flow of water into preaction fire protection sprinkler systems upon operation of a fire detection system or operation of one or more automatic sprinklers.
• Preaction Type B Systems are used in unheated warehouses, parking garages, attic spaces, loading docks, and other areas exposed to freezing temperatures, where water filled pipe cannot be utilized.
• The Model DPV-1 Preaction Type B Valves also provide for actuation of fire alarms upon system operation.

Tech Data Sheet:

View TFP1486

Model BFV-300 Butterfly Valve, Wafer Style

Features :

• Save time with fast and simple connections to deluge valve.
• Traveling nut gearbox allows for a compact design that is easier to handle, install
• QR code scanning provides instant access to online product and technical information.
• Options include supervisory open version to isolate the alarm valve and supervisory closed version for by-pass
• Directly replace other butterfly valves.
• Grooved or wafer connection for installation on a range of systems.

Tech Data Sheet:

View TFP1511 (Grooved End)

Tech Data Sheet:

View TFP1516 (Wafer End)

Outside Screw and Yoke (OS&Y)

Features :

• TYCO TJ Series Resilient-Seated Gate Valves are offered in multiple end connection configurations including: Flange by Flange, Flange by Groove, and Groove by Groove
• Tapping bossed for up and downstream connection to valve trims
• Ductile iron wedge gate, fully encapsulated with EPDM rubber
• Corrosion-resistant components
• UL and ULC Listed, FM Approved and Available Globally

Tech Data Sheet:

View TFP1541

Non Rising Stem (NRS), Indicator Post

Features :

• TYCO TJ Series Resilient-Seated Gate Valves are offered in multiple end connection configurations including: Flange by Flange, Flange by Groove, and Groove by Groove
• Tapping bossed for up and downstream connection to valve trims
• Ductile iron wedge gate, fully encapsulated with EPDM rubber
• Corrosion-resistant components

Tech Data Sheet:

View TFP1546

Outside Screw and Yoke

Features :

• TYCO Resilient-Seated Gate Valves are offered in multiple end connection configurations including: Flange by Flange, Flange by Groove, and Groove by Groove
• Ductile iron wedge gate, fully encapsulated with EPDM rubber
• Lower operating torque, designed for a higher life cycle
• Replaceable or repairable stem seals
• Multiple configurations and operation modes
• Tapping bossed on Flange x Flange body for up and downstream connection to valve trims
• UL Listed, FM Approved

Tech Data Sheet:

View TFP1540

with Vertical or Cross Wall Post Indicator

Features :

• TYCO Resilient-Seated Gate Valves with Vertical and Cross Wall Indicators are used in fire protection systems for on/off operation. End connection configurations including Flange by Flange, Flange by Groove, and Groove by Groove are available.
• The ductile iron body weighs approximately 50% less than conventional cast iron valves, which allows easier handling on site and reduced shipping costs.
• The fully encapsulated EPDM ductile iron wedge ensures drop-tight sealing.
• This valve is one of the lightest, most durable gate valves on the market today. Its design features and material selection criteria fulfill the need for a reliable, long life and easy to operate gate valve.
• Listings and Approvals: UL and FM

Tech Data Sheet:

View TFP1545

Butterfly Valve Wafer Style

Features :

• The TYCO Model BFV-250 Wafer Style Butterfly Valves are indicating type valves designed for use in fire protection systems where a visual indication is required as to whether the valve is open or closed.
• They are used, for example, as system, sectional and pump water control valves, and are suitable for installation between ANSI Class 125/150 flanges as well as PN10/16 flanges without the need for flange gaskets.
• For applications requiring supervision of the open position of the valve, the Gear Operators for the Model BFV-250 Butterfly Valves are provided with two sets of factory installed internal switches each having SPDT contacts.
• Maximum Working Temperature : 212°F (100°C) in accordance with UL 1091

Tech Data Sheet:

View TFP1517

Grooved End Swing Check Valves - 2" to 12" (DN50 to DN300)

Features :

• The TYCO Model CV-1F Grooved End Swing Check Valve is a compact and rugged swing-type unit that allows water flow in one direction and prevents flow in the opposite direction.
• A resilient elastomer seal facing on the spring-loaded clapper ensures a leak-tight seal and non-sticking operation.
• The Model CV-1F Check Valves are designed to minimize water hammer caused by flow reversal.
• The Model CV-1F Grooved End Swing Check Valve is furnished with grooved ends and can be installed using GRINNELL Grooved Couplings or GRINNELL Figure 71 Flange Adapters.
• The Model CV-1F Check Valves have been designed with a removable cover for ease of field maintenance. These valves can be installed horizontally (with cover in the upward position) or vertically with the flow in the upward direction.
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1550

Grooved End Swing Check Valves

Features :

• Compact, light-weight design allows for easy installation
• 4-inch size
• 300 psi working pressure
• Grooved ends can be installed using GRINNELL Grooved Couplings or GRINNELL Figure 71 Flange Adapters
• Listings and Approvals: UL, C-UL, and FM

Tech Data Sheet:

View TFP1552

Pressure Reducing Valve - Pilot Operated, Globe and Angle Body Styles

Features :

• The PRV-1 is intended to automatically maintain the outlet "set pressure" (static and residual) within a close range, regardless of fluctuations in the higher pressure inlet line or varying flow rates.
• Can be installed either vertically or horizontally
• Available with threaded, flanged, and cut groove inlet and outlet connections
• Grooved connections are suitable for use with grooved pipe couplings that are listed or approved for fire protection service
• One piece, one moving part diaphragm
• In-line service (for maintenance)
• Pilot valve provides for any outlet "set pressure", i.e., 80 to 225 psi (5,5 to 15,5 bar)
• Rated for use at a maximum pressure of 250 psi (17,2 bar)
• Factory outlet "set pressure" of 125 psi (8,6 bar)
• Field outlet "set pressure" range of 80 to 225 psi (5,5 to 15,5 bar)
• Listings and Approvals: UL, & FM

Tech Data Sheet:

View TFP1580

Pressure Relief Valve, Pilot-Operated, Globe and Angle Body Styles

Features :

• Globe or angle pattern
• Installation in any orientation
• One-piece, one-moving-part diaphragm
• Ceramic enamel-coated interior
• Standard nylon-coated exterior
• Accurate pressure control
• In-line service
• No need to bleed trapped air from the diaphragm chamber
• Rated for use at a Maximum Inlet Pressure of 250 psi (17,2 bar)
• Listings and Approvals: UL & FM

Tech Data Sheet:

View TFP1585

Signs For Sprinkler Systems and Devices NFPA 13 Signing Requirements

Features :

• Designed to provide information to the end user about the sprinkler system and its components
• Available with a variety of wording combinations to meet the signage requirements of NFPA 13

Tech Data Sheet:

View TFP1615

Automatic Supervisory Air Supply

Features :

• Supplies and maintains air in single interlock preaction fire protection systems having a nominal supervisory air pressure of 10 psi (0.7 bar)
• Can be mounted on the floor, on a wall, or to the system riser using optional brackets
• Listings and Approvals: UL

Tech Data Sheet:

View TFP1620

Automatic Drain Valve Trim Component for Dry Pipe, Deluge, and Preaction Valves

Features :

• Designed for use with Tyco Dry Pipe, Deluge, and Preaction Valves
• Provided as a trim component for these valves, the Model AD-1 Automatic Drain Valve is used to automatically drain the normally dry alarm lines
• Maximum Pressure 250 psi (17,2 bar)
• Listings and Approvals: UL, C-UL, FM, NYC under MEA 172-02-E

Tech Data Sheet:

View TFP1630

Automatic Drain Valve 1/2 Inch NPT

Features :

• Designed to automatically drain water from fire protection equipment supply connections that are to be maintained normally dry
• Installed vertically and utilized with an open drain
• Maximum Working Pressure: 175 psi (12,1 bar)
• Listings and Approvals: UL & FM

Tech Data Sheet:

View TFP1632

Model AD-3 Automatic Drain Valve Trim Component for DV-5A Automatic Water Control Valves

Features :

• The Tyco Model AD-3 Automatic Drain Valve is designed for use with TYCO DV-5A Automatic Water Control Valves.
• Provided as a trim component for these valves, the Model AD-3 Automatic Drain Valve is used to automatically drain the normally dry alarm lines.

Tech Data Sheet:

View TFP1633

Sight Flow Connection - 1" and 2" (DN25 and DN50) 175 psi (12,1 bar)

Features :

• Designed for use in fi re protection systems as a means for visibly checking that water is flowing and filling the pipe at that point
• May be installed vertically or horizontally
• Maximum Working Pressure: 175 psi (12,1 bar)
• Listings and Approvals: UL & FM

Tech Data Sheet:

View TFP1635

Pipe Line Strainers

Features :

• Model A available sizes: 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200) and 10" (DN250)
• Available sizes: 6" x 6" (150 mm x 150 mm), 8" x 8" (200 mm x 200 mm), 8" with 2 - 6" outlets (200 mm with 2 - 150 mm outlets), 10" x 8" with 2 - 8" outlets (250 mm with 2 - 200 mm outlets)
• Compact, lightweight, welded assembly with flanged inlet, outlet and flushing connection
• Corrosion resistant Type 304 stainless steel screen especially designed for low pressure loss
• Rated for use in services up to 175 psi (12,1 bar)
• Listings and Approvals: UL, C-UL and FM

Tech Data Sheet:

View TFP1640

Pipe Line Strainers

Features :

• Model B-1 available sizes: 3" (DN80), 4" (DN100), 6" (DN150), and 8" (DN200)
• Available sizes: 6" x 6" (150 mm x 150 mm), 8" x 8" (200 mm x 200 mm), 8" with 2 - 6" outlets (200 mm with 2 - 150 mm outlets), 10" x 8" with 2 - 8" outlets (250 mm with 2 - 200 mm outlets)
• Compact, lightweight, welded assembly with flanged inlet, outlet and flushing connection
• Corrosion resistant Type 304 stainless steel screen especially designed for low pressure loss
• Rated for use in services up to 175 psi (12,1 bar)
• Listings and Approvals: UL, C-UL and FM

Tech Data Sheet:

View TFP1642

Pipe Line Strainers

Features :

• Available sizes: 6" x 6" (DN150 x DN150), 8" x 8" (DN200 x DN200), 8" (DN200) with 2 - 6" outlets (2 - 150 mm), 10" (DN250) x 8" (DN200) with 2 - 8" outlets (2 - 200 mm)
• Compact lightweight welded hot dipped galvanized assembly with flanged inlet, outlet and flushing connection
• Corrosion resistant Type 304 stainless steel screen especially designed for low pressure loss
• Rated for use in services up to 250 psi (17.2 bar)
• Listings and Approvals: UL, C-UL and FM

Tech Data Sheet:

View TFP1644

Sectional Test & Drain for Use with Field-fabricated Sectional Control Arrangements

Features :

• The Model F350 Sectional Test & Drain with an integral sight glass assembly, provides a simplified means for testing of waterflow alarm devices and draining of feed mains.
• A typical application is in a multi-story building where waterflow alarm devices are required on each floor at each riser.
• Visual flow indicator for both alarm test (partial flow) and flow test (full flow conditions) vibrates to provide a positive indication of flow even in dimly lit areas.
• A unique, self-cleaning sight glass assembly that provides a positive indication of flow, even in dimly lit areas without a flashlight
• Listings and Approvals: UL and FM

Tech Data Sheet:

View TFP1650

LFP® Antifreeze for Fire Sprinkler Systems

Features :

• UL Listed - first and only agency listed antifreeze solution
• Meets NFPA 13, 13R, 13D and 25 requirements for use of listed antifreeze
• Minimum use temperature of -10°F (23,3°C)
• FBC™ System Compatible for use with BlazeMaster® CPVC pipe and fittings
• Compatible with most fire sprinkler system materials
• Pre-mixed solution
• Non-toxic*

Tech Data Sheet:

View TFP1680

EAS-1 - Electronically Activated Sprinkler System For Storage Applications

Features :

• Performance-based fire sprinkler system specifically engineered to address highly challenging storage fire hazards
• Features addressable heat sensors connected to an electronic control system that continuously analyzes temperature information within the protected area
• Provides better protection with less water by locating fire origin and responding with only the appropriate sprinklers
• Eliminates the need for in-rack sprinklers
• Allows the existing fire sprinkler system infrastructure to be used to avoid replacing pipe and adding fire pumps
• All system components are UL and UL-C Listed

More Information:

View TFP360

Tech Data Sheet:

View AP4098-SMRT

Tech Data Sheet:

View AP4100

Tech Data Sheet:

View TFP325

All-CPVC sprinkler head adapter with no need for thread tape or sealant

Features :

• All-CPVC sprinkler head adapter manufactured with Lubrizol BlazeMaster® CPVC compound
• Fast and easy installation with no need for thread tape or sealant
• No brass means no dezincification and no lead complies with growing state and federal low-lead requirements
• Available in various styles in 3/4" and 1" sizes
• UL, FM, NSF, and LPCB approved

Tech Data Sheet:

View TFP1925

CPVC fire sprinkler pipe in sizes 3/4" through 3"

Features :

• Manufactured with Lubrizol BLAZEMASTER® compound
• Offering includes easy-to-install Rapid Seal all-CPVC sprinkler head adapter available in various styles in 3/4" and 1" sizes
• Fittings available in a wide range of designs and sizes 3/4" through 3"
• UL Listed for use in NFPA 13 (light hazard), NFPA 13R, and NFPA 13D occupancies, as well as air plenums

Tech Data Sheet:

View TFP1915

CPVC Hangers Head Set

Features :

• "No Block Hanger" is a two hole strap that eliminates blocking to the beam when hanging CPVC pipe
• Positions the face of the pipe 1-1/2" off the face of the joist
• Headset hanger is designed to hang CPVC pipe and for the proper placement of the sprinkler before the ceiling is installed
• Provides vertical restraint, eliminating need for additional hangers
• BLAZEMASTER Caulk and Walk® Firestop
• One-Step CPVC Cement specifically formulated for use with BlazeMaster pipe and fittings

Tech Data Sheet:

View TFP1920

One Step Solvent Cement SDS

Features :

• One-step CPVC cement specifically formulated for use with BlazeMaster® pipe and fittings
• Review solvent cementing instructions in the IH-1900 Handbook prior to installation
• Product is stable and non-reactive under normal conditions of use, storage and transport

Tech Data Sheet:

View TFP1994

Air Maintenance Devices, Compressor Control Type with Field-Adjutable Pressure Switch

Features :

• Field adjustable
• Used in conjunction with a small, non-tank-mounted air compressor
• Monitors sprinkler system or dry pilot line detection for deluge system air pressure and automatically cycles the compressor to maintain system pressure within preset limits
• Listings and Approvals: UL, C-UL, & FM Approved & NYC Approved under MEA 206-02-E

Tech Data Sheet:

View TFP1231

Nitrogen Maintenance Devices - High Pressure (Cylinder) Reducing Type

Features :

• Field adjustable
• Used in conjunction with a cylinder of high pressure nitrogen to control the nitrogen pressure in a sprinkler system or a dry pilot line detection for deluge systems
• Listings and Approvals: UL, C-UL, & FM Approved & NYC Approved under MEA 206-02-E

Tech Data Sheet:

View TFP1241

Model NG-1 Wall-Mounted Nitrogen Generators - Pre-Engineered Plug-and-Play Nitrogen Generators - Wall Mounted

Features :

• Minimal footprint allowing for easy installation in riser room
• No nitrogen tank or refrigerated dryers required
• Fill-and-purge breathing method allows vent to be installed on riser
• Nitrogen Membrane: Capable of 98%+ Nitrogen Purity
• Integral oil-less compressor
• Available in either 120VAC/60Hz or 230 VAC/50Hz
• Compatible with both new and existing fire sprinkler systems
• Approvals: FM, CE, UL508A Listed Industrial Control Panel

Tech Data Sheet:

View TFP1251

Model NG-1 Skid-Mounted Nitrogen Generator - Pre-Engineered Plug-and-Play Nitrogen Generator - Skid Mounted

Features :

• Designed on single skid for easy installation
• No nitrogen tank or refrigerated dryers required
• Fill-and-purge breathing method allows vent to be installed on riser
• Nitrogen Membrane: Capable of 98%+ Nitrogen Purity
• Integral oil-less compressor
• Available in either 120VAC/60Hz or 230 VAC/50Hz
• Compatible with both new and existing fire sprinkler systems
• Approvals: FM, CE, UL508A Listed Industrial Control Panel

Tech Data Sheet:

View TFP1252

Model NG-1 Stand-Alone Nitrogen Generators - Engineered Nitrogen Generators - Stand-Alone

Features :

• Designed to support projects with larger system capacities
• No nitrogen tank or refrigerated dryers required
• Fill-and-purge breathing method allows vent to be installed on riser
• Nitrogen Membrane: Capable of 98%+ Nitrogen Purity
• Paired with oil-lubricated oil compressor
• Available in either 120VAC/60Hz or 230 VAC/50Hz
• Compatible with both new and existing fire sprinkler systems
• Approvals: FM, CE, UL508A Listed Industrial Control Panel

Tech Data Sheet:

View TFP1253

Model TILD In-Line Corrosion Detector - Corrosion Detector - Installed In-Line for Real-Time Monitoring

Features :

• Can be installed in dry or wet pipe systems
• Monitor locally with included Remote Test Station or remotely via the building monitoring system
• Available in galvanized or black steel; schedule 10 or 40
• 1-1/4" to 8" (DN32 to DN200)
• Roll-grooved ends for easy installation
• Listings: UL

Tech Data Sheet:

View TFP1261

Model TAV-D Manual Air Vent - Dry Systems, Oxygen Removal Vent for Dry/Preaction Systems - Manual Shut-off

Features :

• Designed for use with the NG-1 Nitrogen Generators
• Can be installed directly on system riser
• Must be manually closed after 14-day nitrogen fill-and-purge process
• Nitrogen gas sampling port for use with THGA or TSGA Gas Analyzers
• Includes failsafe back-pressure regulator
• Automatic float shut-off in event of a system trip
• Support hanger not required

Tech Data Sheet:

View TFP1262

Model TSV-D Smart Air Vent - Dry Systems, Oxygen Removal Vent for Dry/Preaction Systems - Electronic Shut-off

Features :

• Designed for use with the NG-1 Nitrogen Generators
• Can be installed directly on system riser
• Will automatically shut off after 14-day nitrogen fill-and-purge process
• Includes electronic control box
• Includes failsafe back-pressure regulator
• Automatic float shut-off in event of a system trip
• Support hanger not required

Tech Data Sheet:

View TFP1263

Model TAV-W Automatic Air Vent - Wet Systems, Oxygen Removal Vent for Wet Systems

Features :

• Remove trapped air from wet fire sprinkler systems
• Redundant float valve design to eliminate risk of leaks � no need to plumb to drain
• High-visibility pressure gauge easily seen from floor to confirm functionality
• Entire vent assembly is FM Approved and UL Listed
• Can be upgraded for Wet Pipe Nitrogen Inerting
• Approvals: FM, UL

Tech Data Sheet:

View TFP1264

Model TAV-WN Air Vent, Wet - Nitrogen, Oxygen Removal Vent for Wet Systems - Wet Pipe Nitrogen Inerting

Features :

• Remove trapped air from wet fire sprinkler systems
• Includes TNIP Nitrogen Inerting Port for Wet Pipe Nitrogen Inerting process
• Redundant float valve design to eliminate risk of leaks � no need to plumb to drain
• High-visibility pressure gauge easily seen from floor to confirm functionality
• Can be used with TRIS Remote Inerting Station (sold separately) during WPNI process
• Approvals: FM, UL

Tech Data Sheet:

View TFP1265

Model TNIP Nitrogen Injection Port - Nitrogen Injection Port for use during Wet Pipe Nitrogen Inerting Process

Features :

• For use during the Wet Pipe Nitrogen Inerting Process
• Installed on riser on the system side of the main control valve
• Also available with TAV-WN Automatic Air Vent

Tech Data Sheet:

View TFP1265

Model TRIS Remote Inerting Station - Control Station for Remote Monitoring of TAV-WN Air Vent

Features :

• For use during the Wet Pipe Nitrogen Inerting Process
• Provides remote monitoring and control options for the TAV-WN Automatic Air Vent

Tech Data Sheet:

View TFP1265

Model TNIK Nitrogen Inerting Kit, Start-up Kit for Using Nitrogen Cylinders during Wet Pipe Nitrogen Inerting Process

Features :

• For use with pressurized nitrogen gas cylinders as part of Wet Pipe Nitrogen Inerting process
• Includes 3/8" rubber hose, nitrogen cylinder regulator, and industrial brass couplers

Tech Data Sheet:

View TFP1266

Model THGA Handheld Gas Analyzer - Handheld Gas Analyzer for use with Dry or Wet Pipe Nitrogen Inerting

Features :

• Displays nitrogen purity of the gas stream being sampled
• Lithium battery powered
• One-touch calibration
• Includes tubing and quick connect fitting compatible with TYCO Nitrogen products
• Also available as part of TGSK Gas Sampling Kit

Tech Data Sheet:

View TFP1267

Model TGSP Gas Sampling Port - Gas Sampling Port for Dry Pipe Nitrogen Inerting Monitoring

Features :

• For use with THGA Handheld Gas Analyzer
• Equipped with 1/2" isolation valve
• 1/4" quick connect socket
• All industrial brass components
• Also available as part of TGSK Gas Sampling Kit

Tech Data Sheet:

View TFP1267

Model TGSK Gas Sampling Kit - Gas Sampling Components to monitor Dry Pipe Nitrogen Inerting

Features :

• Monitor the nitrogen concentration in a sprinkler system equipped with a TYCO Nitrogen Generator
• Includes the THGA Handheld Gas Analyzer and TGSP Gas Sampling Port

Tech Data Sheet:

View TFP1267

Model TNIM Nitrogen Inerting Manifold - Inerting Manifold for the Wet Pipe Nitrogen Inerting Process

Features :

• Designed to be installed in-line between the house/plant nitrogen supply and the wet pipe sprinkler system riser
• For use with TNIP Nitrogen Inerting Port
• Includes gas sampling port to verify nitrogen concentration at the inlet supply
• Single pressure regulator to regulate nitrogen delivery pressure to the discharge connection

Tech Data Sheet:

View TFP1268

Model TNIC Nitrogen Interface Controller - Interface Controller for Dry Pipe Inerting Process

Features :

• Use with house/plant nitrogen source for controlling oxygen corrosion in dry/preaction systems
• Can be used with TYCO NG-1 Nitrogen Generators to control multiple systems operating at different pressures

Tech Data Sheet:

View TFP1269

Model TSGA SMART Gas Analyzer - Electronic Gas Analyzer for use with Dry or Preaction Systems

Features :

• Continuous real-time monitoring of Nitrogen/Oxygen concentration levels
• Can be monitored by building information management or fire alarm systems
• Pair with either TAV-D Manual Air Vent or TSV-D Smart Air Vent

Tech Data Sheet:

View TFP1270

Model TNST-200 Nitrogen Storage Tank - Nitrogen Storage Tank for Wet Pipe Nitrogen Inerting Process

Features :

• Designed for use with TYCO NG-1 Nitrogen Generators during the Wet Pipe Nitrogen Inerting process
• Install in-line between the Nitrogen Generator and the wet pipe sprinkler system riser
• 203-gal. / 768 L capacity
• 200 psi / 13.8 bar working pressure

Tech Data Sheet:

View TFP1272

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For the connection of the sprinkler ceiling to the extinguishing water supply system according to VdS approval no. G 4060066.
• Male thread according to DIN EN 10226-1 for sealing.
• Sizes: 32 x 1" MT and 50 x 1-1/2" MT
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-02

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop
• For the connection of the sprinkler ceiling to the extinguishing water supply system according to VdS approval no. G 4060066
• Cylindrical female thread according to DIN EN 10226-1
• Sizes: 32 x 1" FT and 50 x 1-1/2" FT
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-03

Features :

• Tin-plated brass, with fixed press sleeves and pressing jaw stops.
• For use in the installation of pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Sizes: 32 x 32 and 50 x 50
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-04

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For the connection of the sprinkler ceiling to the extinguishing water supply system according to VdS approval no. G 4060066.
• Male thread according to DIN EN 10226-1 for sealing.
• Sizes: 32 x 1" MT
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-05

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For the connection of the sprinkler ceiling to the extinguishing water supply system according to VdS approval no. G 4060066.
• Cylindrical female thread according to DIN EN 10226-1.
• Sizes: 32 x 1" FT and 50 x 1-1/2" FT.
• Approvals: VdS approval no. G 4060066.

Tech Data Sheet:

View MLC-S-06

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For use in the installation of pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Sizes: 50 x 50
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-07

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For use in the installation of pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Sizes: 32 x 32 x 32 and 50 x 50 x 50
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-08

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For use in the installation of pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Sizes: 50 x 32 x 50
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-09

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For use in the installation of pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Sizes: 32 x 32 and 50 x 50
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-10

Features :

• Tin-plated brass, with fixed press sleeve and pressing jaw stop.
• For use in the installation of pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Sizes: 50 x 32
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-11

Features :

• Tin-plated brass, with fixed press sleeve and red pressing jaw stop.
• 1 MT male thread for the connection of Tyco sprinkler boxes to the Tyco MLCP-S sprinkler pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Cylindrical female thread according to DIN EN 10226-1.
• Sizes: 32 x 1" MT & 1/2 FT or 32 x 1" MT & 3/4 FT
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-12

Features :

• Tin-plated brass, with fixed press sleeve and red pressing jaw stop.
• 3/4" FT female thread for the connection of Tyco sprinkler boxes to the Tyco MLCP-S sprinkler pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Cylindrical female thread according to DIN EN 10226-1.
• Sizes: 32 x 3/4" FT and 50 x 3/4" FT
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-13

Features :

• Tin-plated brass, with fixed press sleeve and red pressing jaw stop.
• 3/4" FT female thread for the connection of Tyco sprinkler boxes to the Tyco MLCP-S sprinkler pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Cylindrical female thread according to DIN EN 10226-1.
• Sizes: 50 x 3/4" FT x 50
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-14

Features :

• Tin-plated brass, with fixed press sleeve and red pressing jaw stop.
• 1" MT male thread for the connection of Tyco sprinkler boxes to the Tyco MLCP-S sprinkler pipes in sprinkler ceilings according to VdS approval no. G 4060066.
• Cylindrical female thread according to DIN EN 10226-1.
• Sizes: 32 x 1" MT / 1/2" FT x 32 and 32 x 1" MT / 3/4" FT x 32
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-15

Features :

• Tin-plated brass, with fixed press sleeve.
• Repair and compensating press fitting with extended inner insert.
• Adjusting range 48 mm
• Sizes: 32 x 32mm
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-17

Features :

• For Tyco pipes, outside diameter 25 - 63mm
• Sizes: 25 - 63mm
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-18

Features :

• For the deburring of Tyco MLC / Tyco Velta PE-Xa pipes. Complete with handle.
• Suitable for attachment to power drill with max. 500 rpm (remove handle).
• Sizes: 32 and 50mm
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-19

Features :

• For Tyco MLC pipes, diameter 14 - 32mm.
• Sizes: 32mm

Tech Data Sheet:

View MLC-S-20

Features :

• For the production of uniform bends in Tyco MLC pipes.
• Complete with case and bending inserts.
• Sizes: 16, 20, 25, 32mm

Tech Data Sheet:

View MLC-S-21

Features :

• In plastic case, including battery pack and charger.
• Pressing jaws not included.
• Sizes: 14 - 110mm
• Approvals: VdS approval no. G 4060066
• Pressing Force: min. 32 kN
• Pressing Time: approx. 7 sec.

Tech Data Sheet:

View MLC-S-22

Features :

• In plastic case. Pressing jaws not included.
• Sizes: 14 - 110mm.
• Approvals: VdS approval no. G 4060066.
• Pressing Force: min. 32 kN
• Pressing Time: approx. 7 sec.

Tech Data Sheet:

View MLC-S-23

Features :

• Tyco MLC KSP0 pressing jaws for Tyco MLC press fittings
• Sizes: 32 and 50mm
• Approvals: VdS approval no. G 4060066

Tech Data Sheet:

View MLC-S-24

Features :

• In plastic case, including battery, charger and pressing jaws for dimensions 16 / 20 / 25 / 32.
• Suitable for dimensions 14 - 32mm.
• Sizes: 14 to 32mm
• Pressing Force: min. 15 kN (linear)
• Pressing Time: approx. 4 sec.

Tech Data Sheet:

View MLC-S-25

Features :

• Tyco MLC Mini KSP0 pressing jaws for Tyco MLC press fittings 32 mm.
• Sizes: 32mm

Tech Data Sheet:

View MLC-S-26

Features :

• This Stainless Steel Cup is used in conjuction with the LFII recessed or flush pendent sprinkler.
• Fixing this cup can be done with the Metal Plate shown below.
• This is a non-re-useable cup.
• The Stainless Steel Metal Plate is mounted between the Metal Cup and the Sprinkler fitting.
• This assembly can be fixed to the timber with nails.
• Sizes: 1" ISO

Tech Data Sheet:

View MLC-S-27

Features :

• The Installation Cup is used in conjunction with the FSC (Flush Sprinkler for Concrete).
• The corresponding plug is used for fixing (with nails) the position of the cup.
• For more information on the usage of the Installation Cup see TFP645
• The Installation Cup is re-useable.
• The plug is also available separately (PN 913131004).
• Sizes: 1" ISO

Tech Data Sheet:

View MLC-S-28

Features :

• The Removal Wrench is used for removing the Installation Cup.
• The tool can be used in combination with a 1/2" Socket Drive or a 27mm Wrench.
• Sizes: 27mm Wrench

Tech Data Sheet:

View MLC-S-29
