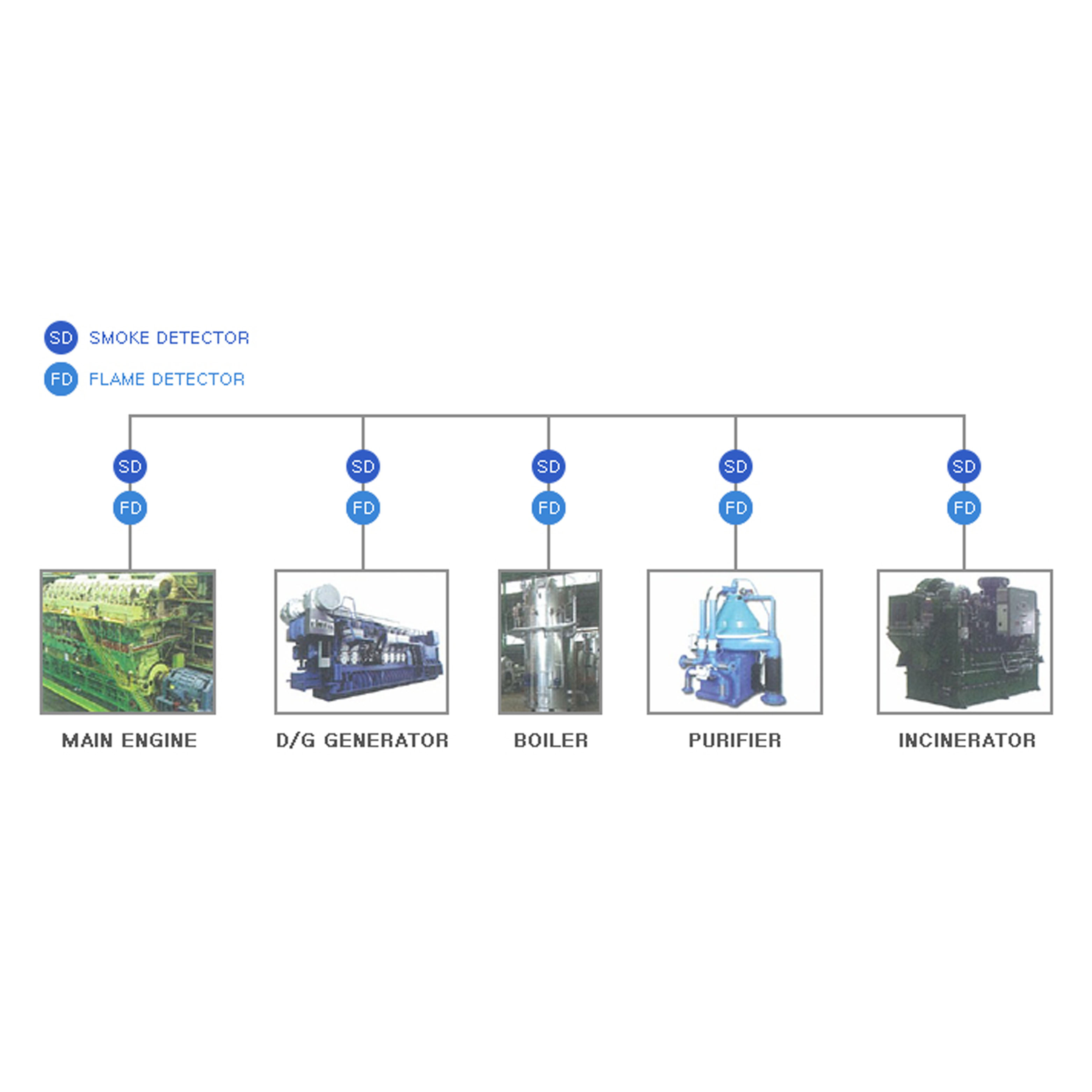

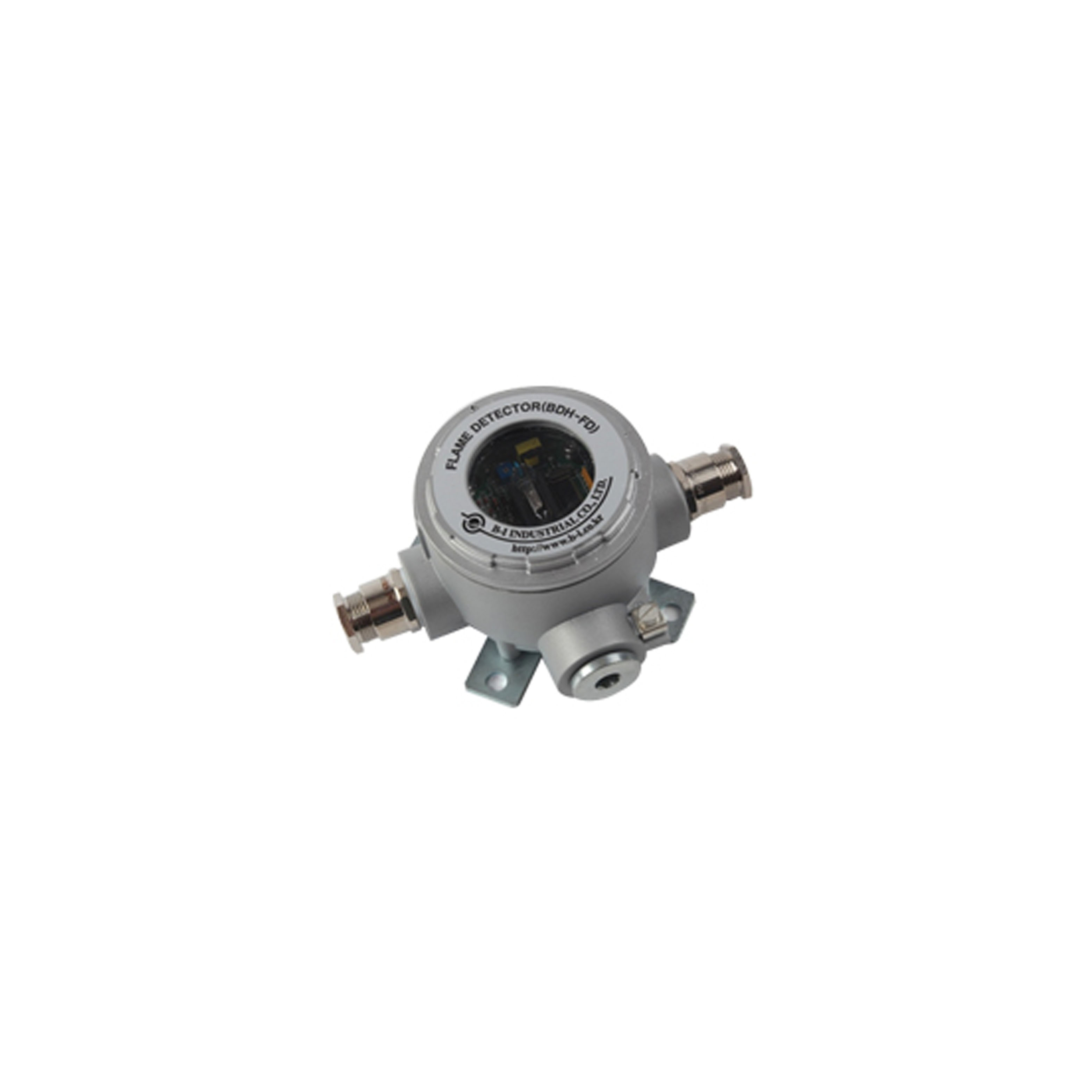

The BDH-FD UV-Flame Detector was designed to meet strict industry performance requirements. The detector also incorporates a special logic circuit that helps prevent fault alarms caused by solar radiation. So, fault alarms are considerably reduced. This detector is packaged in a compact, lightweight housing for easy installation. Our Flame Detector can be connected to a network by RS 485 serial communication wiring with other interface unit. It is specially designed as a general purpose flame detector for industrial applications to withstand "harsh" environmental conditions, including high temperatures, humidity, vibrations, and etc.

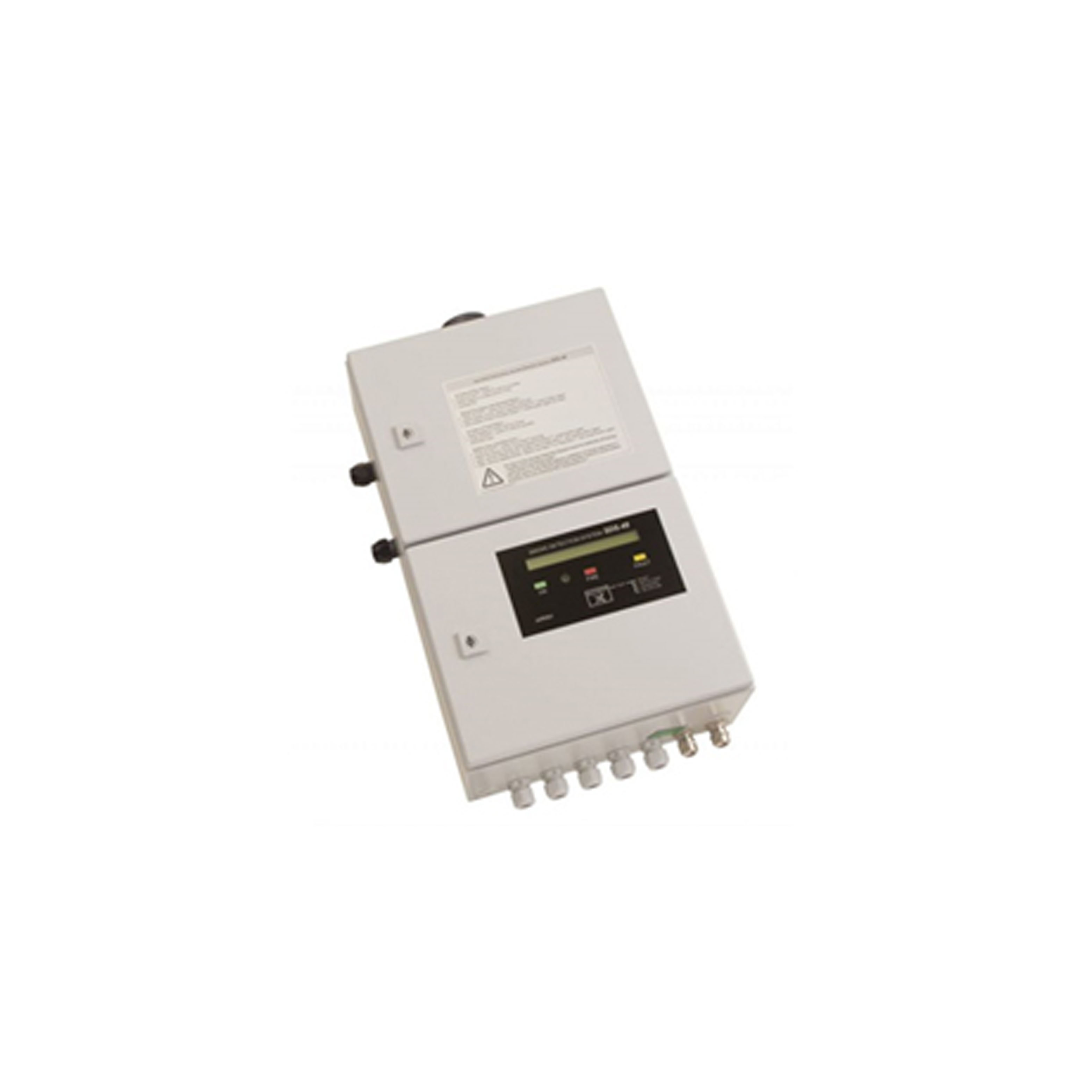

The Unit has been designed to enable Industry to comply with the Clean Air Act and worldwide ships to comply with Canadian Shipping Air Pollution CRC, Vol. XV, C. 1404 and Alaska - 18 AAC 50.070, Marine Vessel Visible Emission Standards.

The product consists of Control Panel, Light Beam Projector, Photocell Receiver, Stack Adaptor, and the Intermediate Adaptor or Sealing Air Fan Box that clean air is supplied for Glass Cleaning. There are two types of Control Panel, one is disclose type for the application of exposure area, the other type is for inside installation of Boiler Panel and any other Control Panel.

The Projector and Receiver connected to Intermediate Adaptor are mounted on opposite side of the chimney or flue preferably where a negative pressure exists thus reducing the necessity of frequent cleaning of the optical system. The presence of smoke in the flue or chimney will cause changed electrical signal between the Projector and Photocell Receiver. The changed signal is analyzed by Control Panel and gives the information on the Digital Display. The Preset Alarm, Low and High alarm, can be adjusted easily to meet the regulation required per country.

Smoke Detection System, BIDS-2000, is a new type of smoke detection system sampling from each ventilation fan for the cargo holds of container vessel in accordance with a new maritime regulation, MSC 292(87), which is effective from January of 2012. The Smoke Sampling System of our BIDS-2000 was created by our own idea and obtained a patent from Korea Intellectual Property Office with Patent No 1125188.

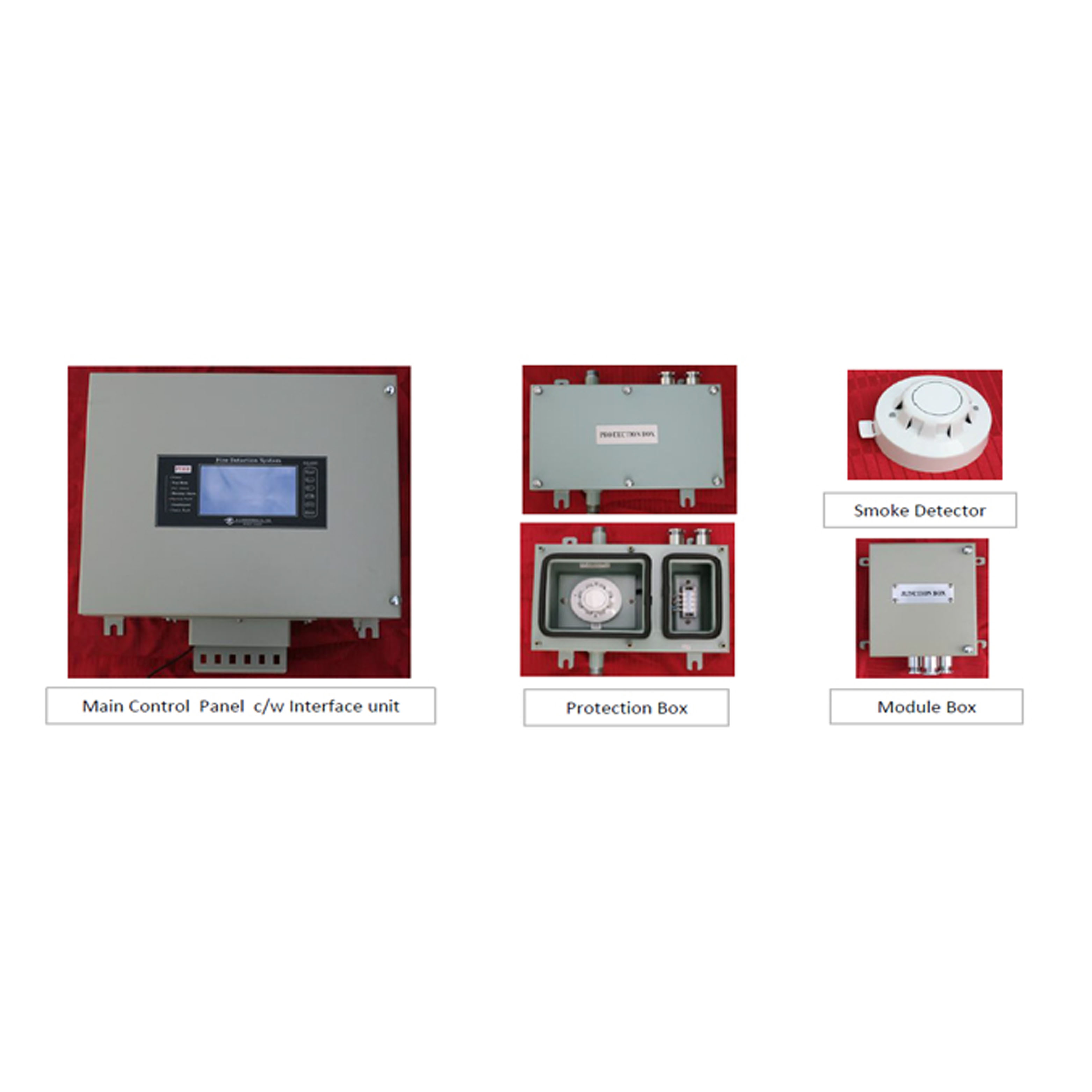

The advantage of BIDS-2000 is that it can adjust the flow rate for the exact detection of sampling smoke from ship's cargo holds. The system can be accessed and customized for various application, offshore plant, any type of vessel, building management system, petrochemical and other industries, especially, can be applied to Zone 1, hazardous area as the Smoke Detector is intrinsically safe grade (Ex ia IIc T4). The system consists of Main Control Panel with Interface Unit, Protection Box, General Smoke Detector, intrinsically safe of Smoke Detector and Barriers. The system is also interfaced with our Fire Detection System, BDS-4000.

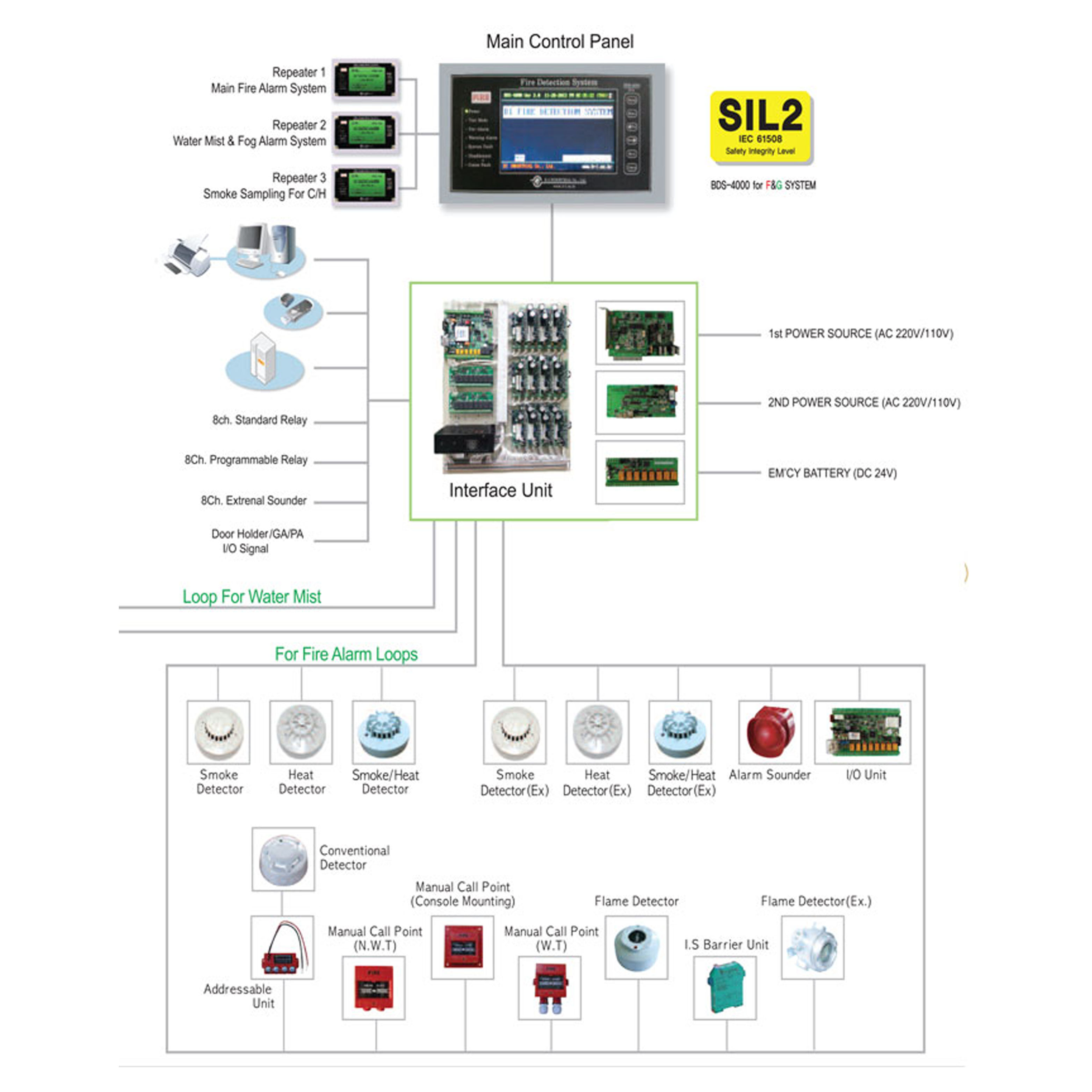

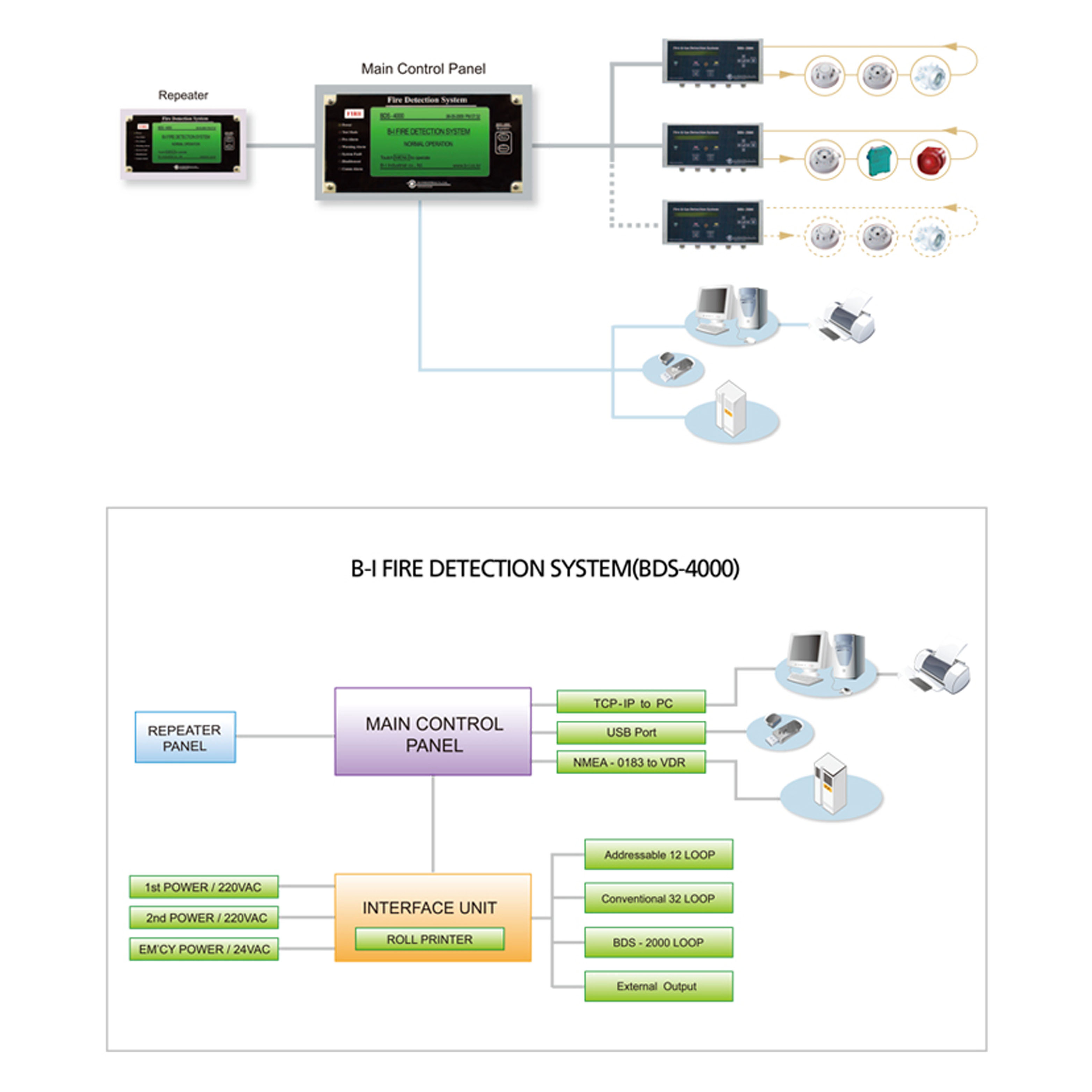

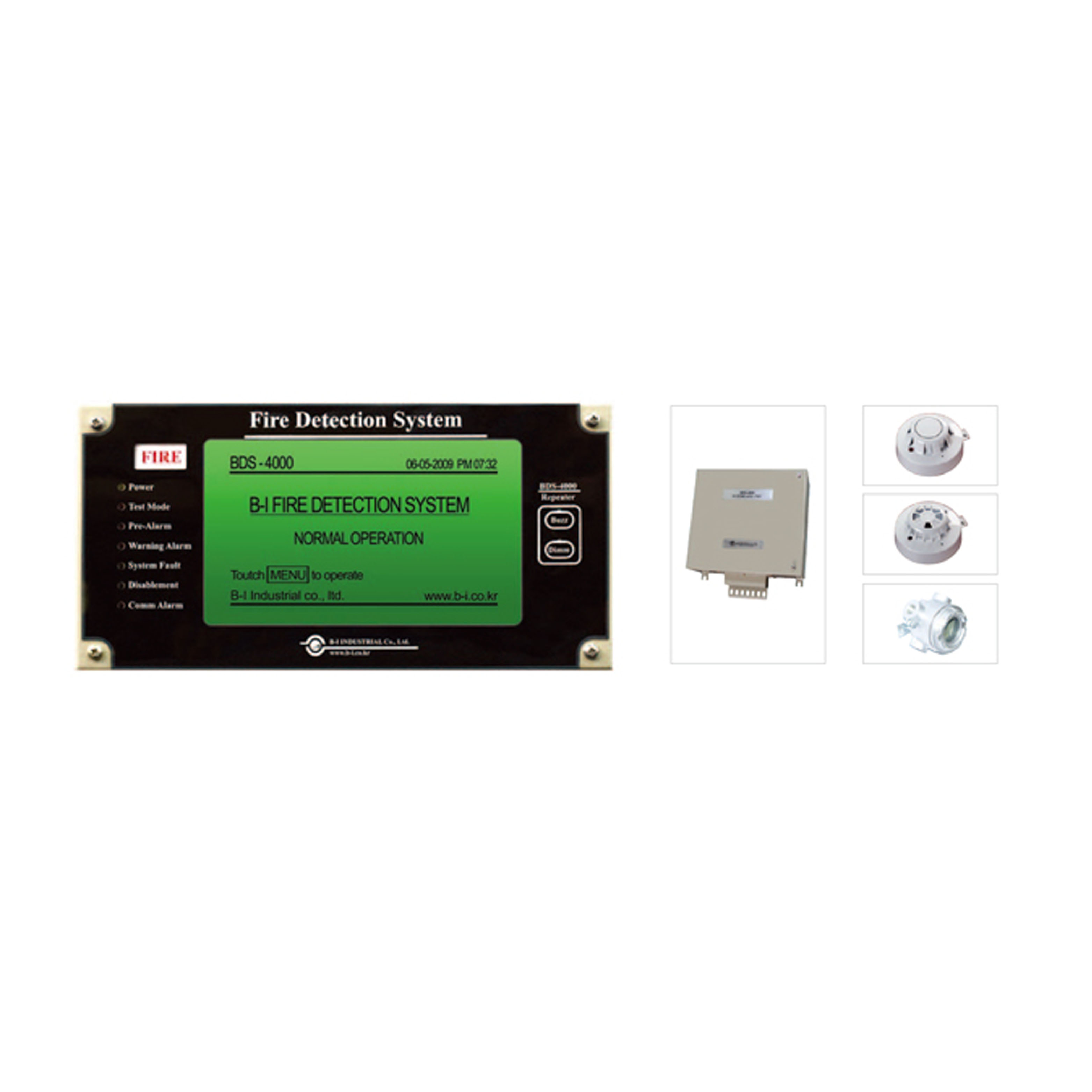

B-I BDS-4000 Model is a New Fire Detection System designed to meet diggerent industrial characteristics and International Maritime Regulations.

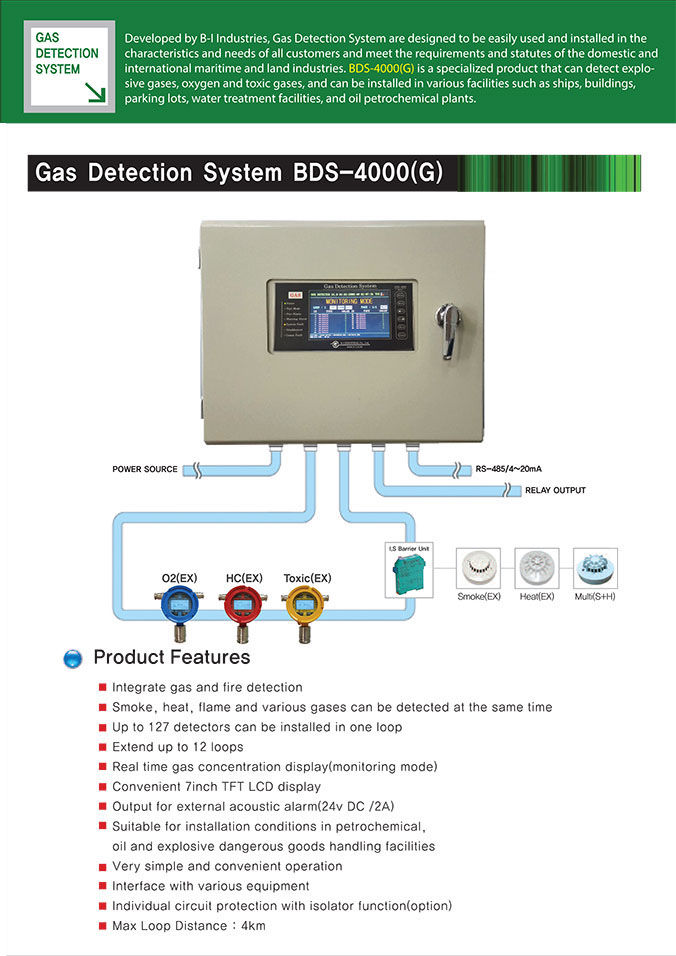

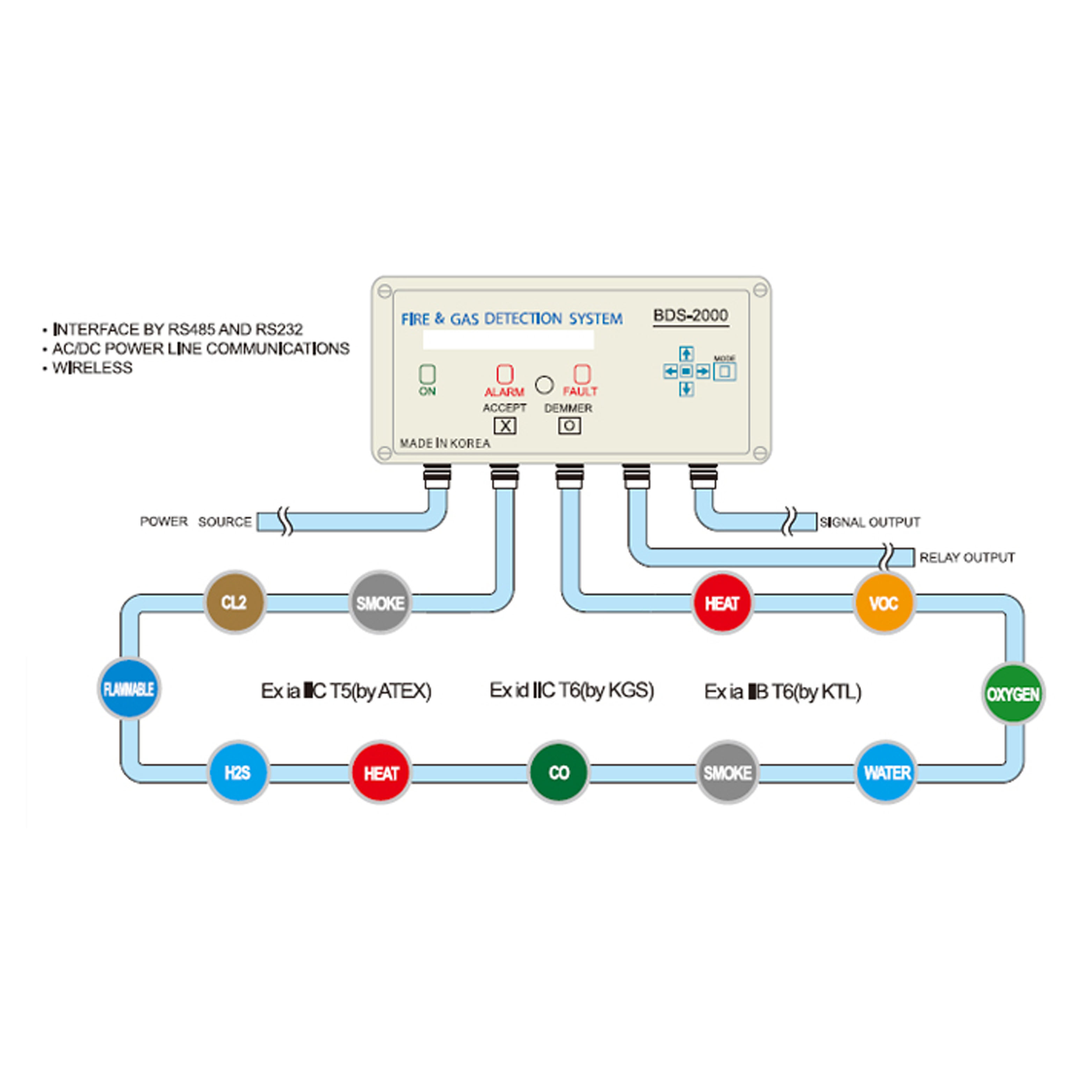

The BDS-2000 Gas & Fire Detection System is a real time monitoring system to analyze Flammable Gases, Toxic gases and Smoke in hazardous area. The system is a intrinsically safe of smoke detection system(Ex ia llc T4) and internal pressure explosion proof type(Ex id llc T4) of gas detection system able to be installed in hazardous area, pump room, cargo hold, air conditioning system in accommodation area and etc.

The BDS-2000 system can be accessed and customized for various applications such as offshore projects, gas plants, petrochemical plants, car parks in commercial building and subway train station. The system adopted RS485 serial communications system with RS232 system. Various external devices with much more control panels and repeater panels easily can be connected to Interface Unit.

Designed to monitor gas levels in marine applications from a number of sample points, targeted where the positioning of conventional gas sensors may not be practical. This may be due to equipment security,cable routing, access for detector head installation/ maintenance or harsh environments.

Measurements: • Combustible Gas : LEL; % Vol. • Toxic Gas : PPM; % Vol. • Oxygen : % Vol. • Refrigerant : ppm

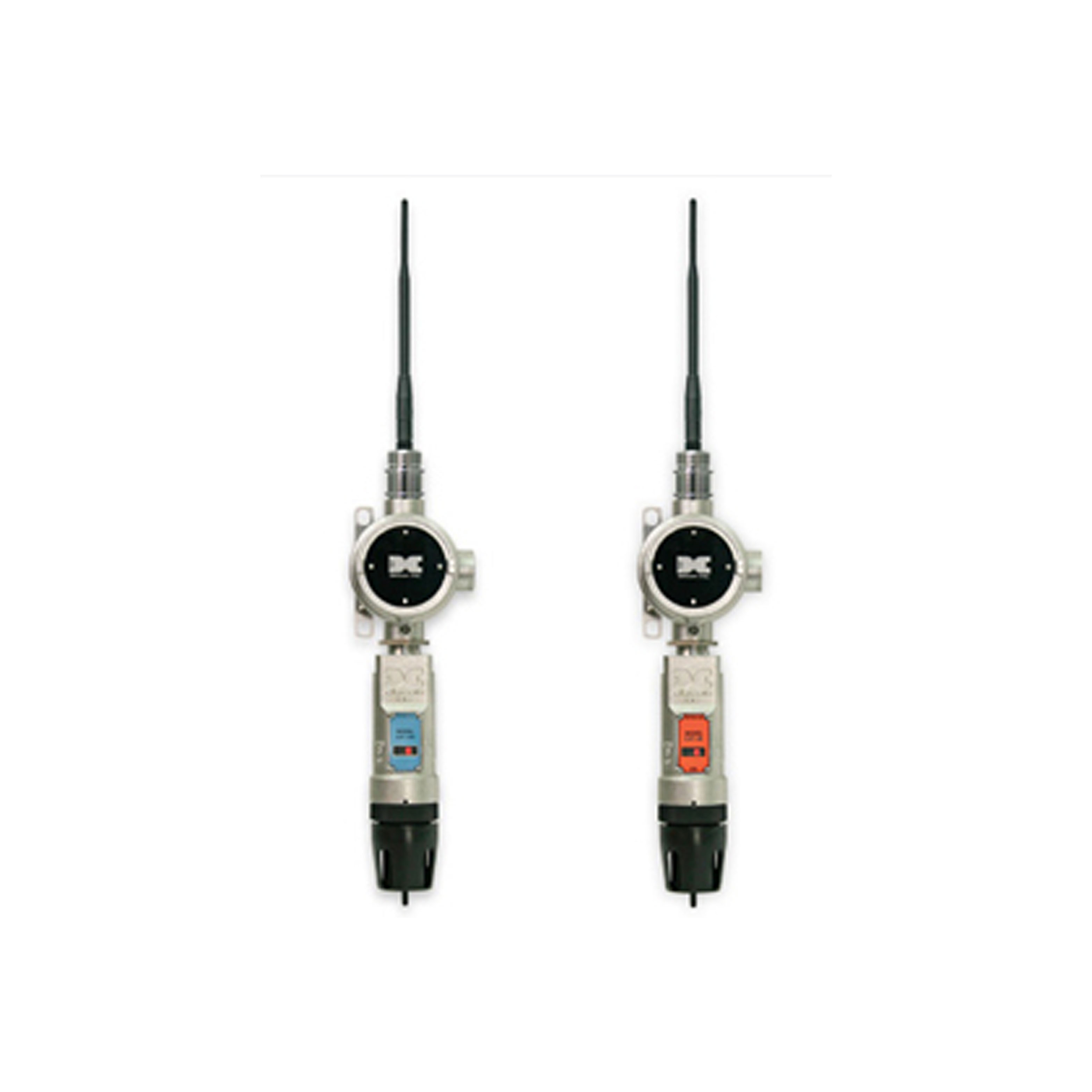

Detcon Model CXT are SmartWireless® gas detection sensors designed for use in mobile applications in heavy industrial environments. These low power sensors assemblies utilize one of two technologies and cover a wide range of industrial applications; electrochemical for a long list of toxic gases, infrared for combustible hydrocarbons. All component parts are rated for Class 1; Division 1, Group C, D hazardous areas. These advanced field devices consist of a Detcon Model Series CXT low power gas detection sensor, and wireless transceiver packaged in a single enclosure. Power is provided by a disposable "C" cell battery pack capable of continuous operation for greater than 60 days. Additional power options include a Smart Rechargeble battery with a run time of 5-6 months, a disposable "D" cell battery pack with a run time of 9 months and solar panel providing continuous operation.

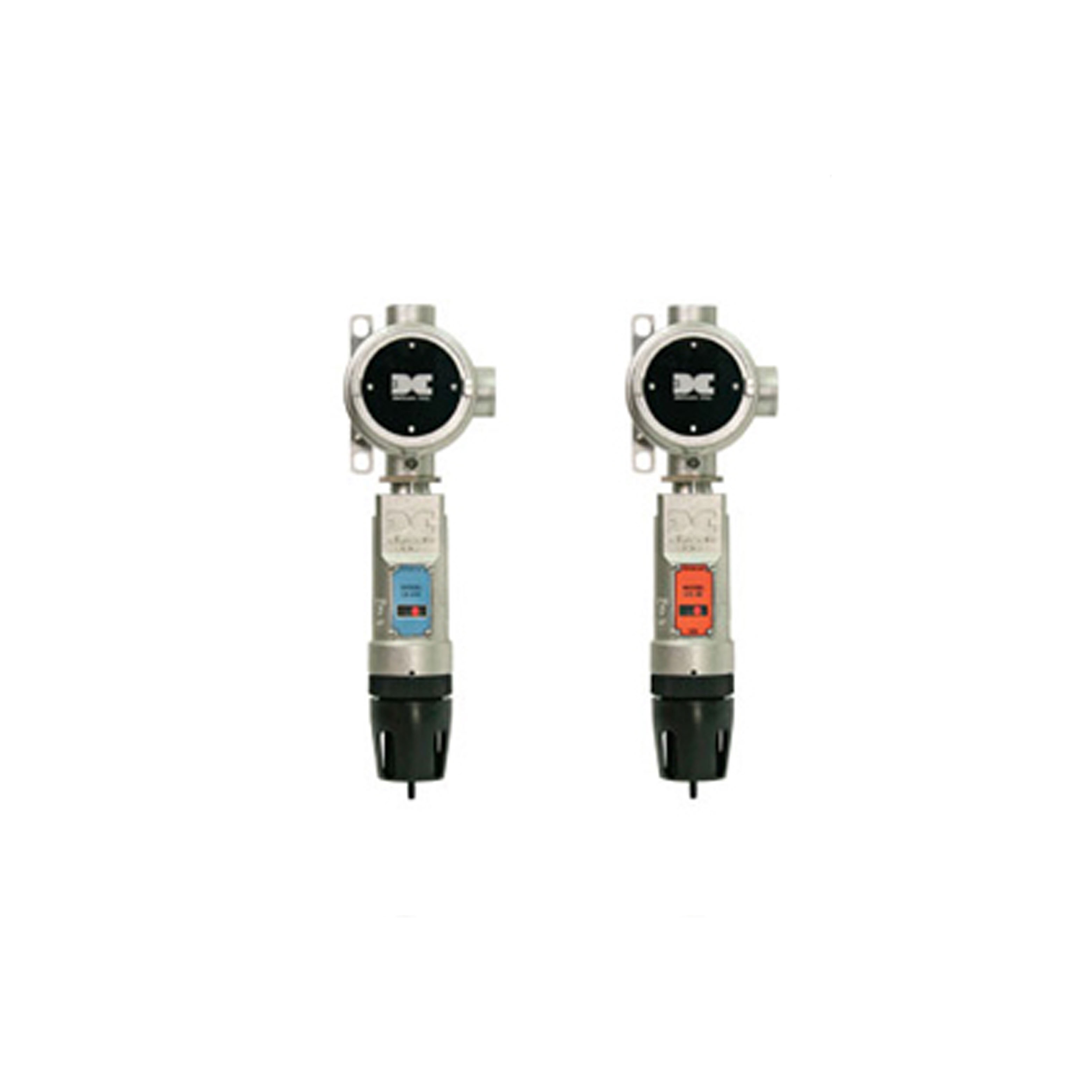

Detcon Model CX-DM gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low power sensor assemblies utilize electrochemical technology for a long list of toxic gases. Model CX-DM sensors are equipped with standard analog 4-20mA, and Modbus™ RTU RS-485 outputs and can be used with Detcon’s SmartWireless® Site Sentinel CX/CXT Controllers as well as other Detcon control systems.

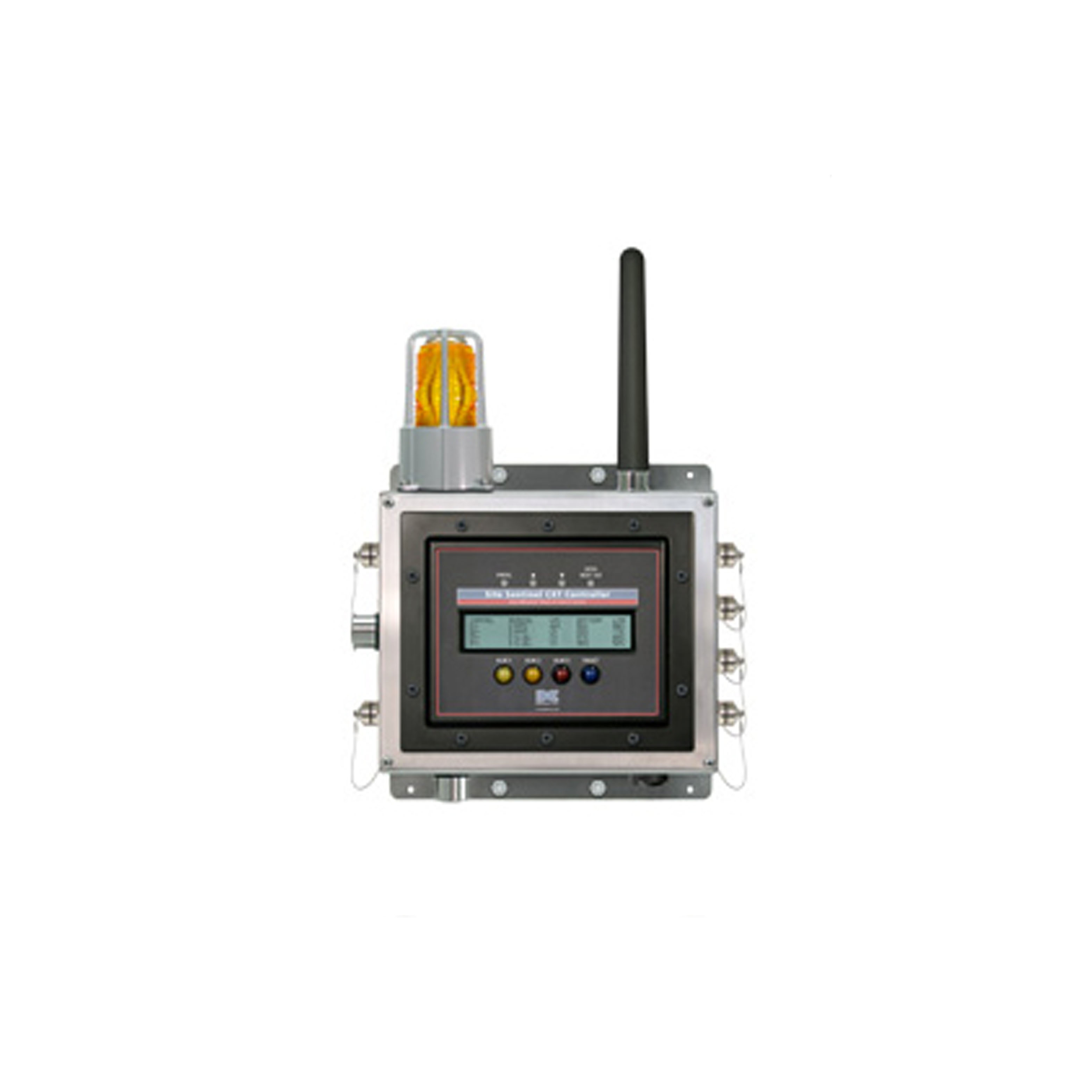

Detcon Site Sentinel CXT Controller is a SmartWireless® gas detection and control system that provides operator interface to the network and real time status display of all network devices. The Sentinel CXT is compatible with Detcon’s Model RXT and CXT Transceivers. Flexible and expandable, a Site Sentinel network can include up to 32 devices and consist of any combination of wireless and/or wired sensors, one or more Site Sentinel control panels, and alarm warning devices.

Command functions include alarm reset, alarm acknowledge, alarm test and radio silence. In normal operation the control panel provides real time display of gas concentrations or the status of other field devices; battery charge levels, network RF signal quality and any number of fault diagnostic conditions affecting either an individual field device or the entire network. These fault conditions are displayed on the control screen.

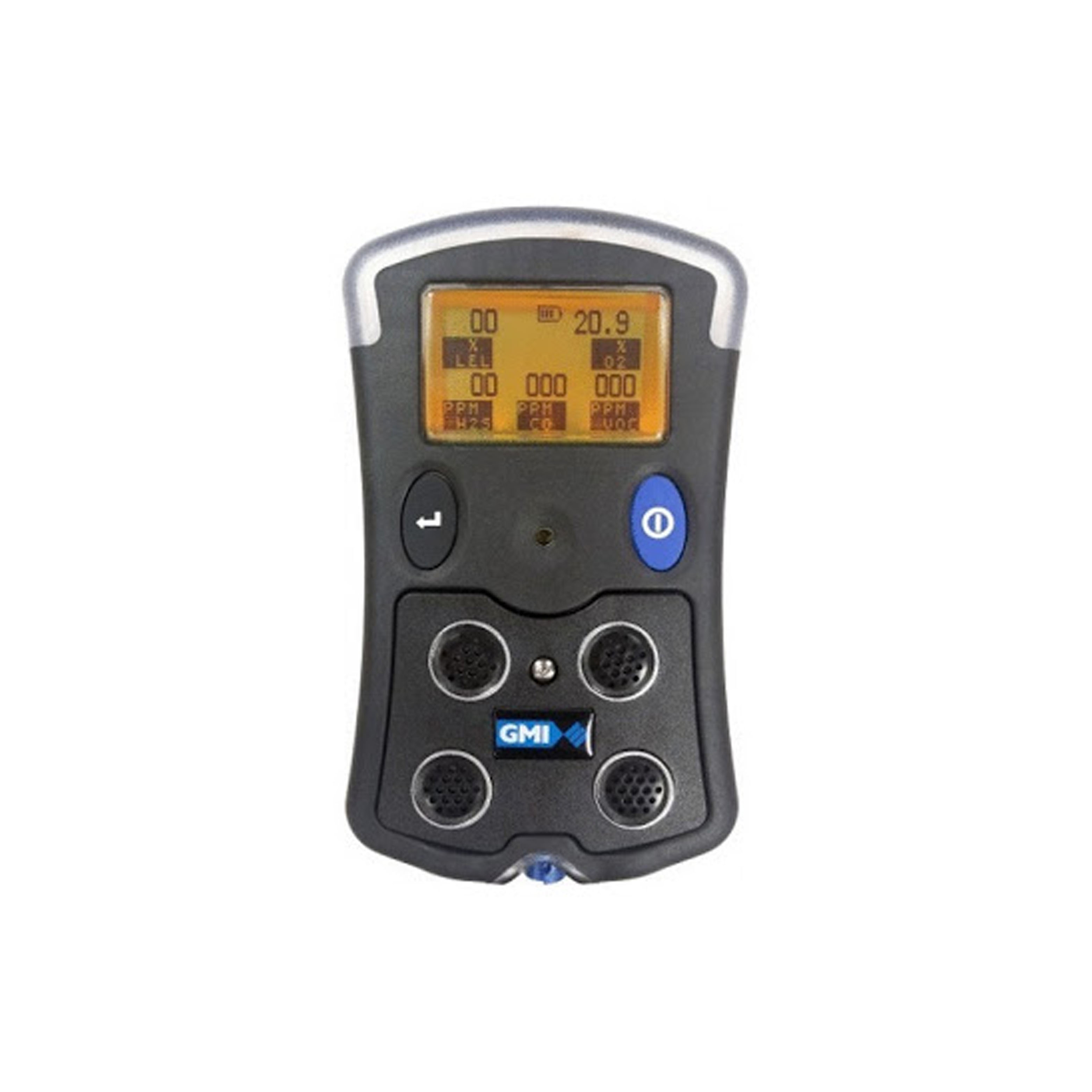

The PS500 can be configured to detect up to five gases with its electrochemical and catalytic sensors, photo ionisation detectors (PID), and infrared capabilities. “Plug and Play” maximizes flexibility by allowing other gases to be detected, by simply inserting a new smart sensor assembly.

The PS500 is effective in noisy environments, featuring a loud (95dB) penetrating and distinctive audible alarm together with a high visibility visual alarm. With a robust, rubberized casing guaranteeing hi-Impact resistance, the PS500 is ideal for the most demanding industrial environments. An optional internal pump allows both pumped or diffusion measurements. If the pump is fitted, it can be easily turned on/off, depending on application. E.g. pump on to perform pre-entry measurements correctly, pump off for confined space working.

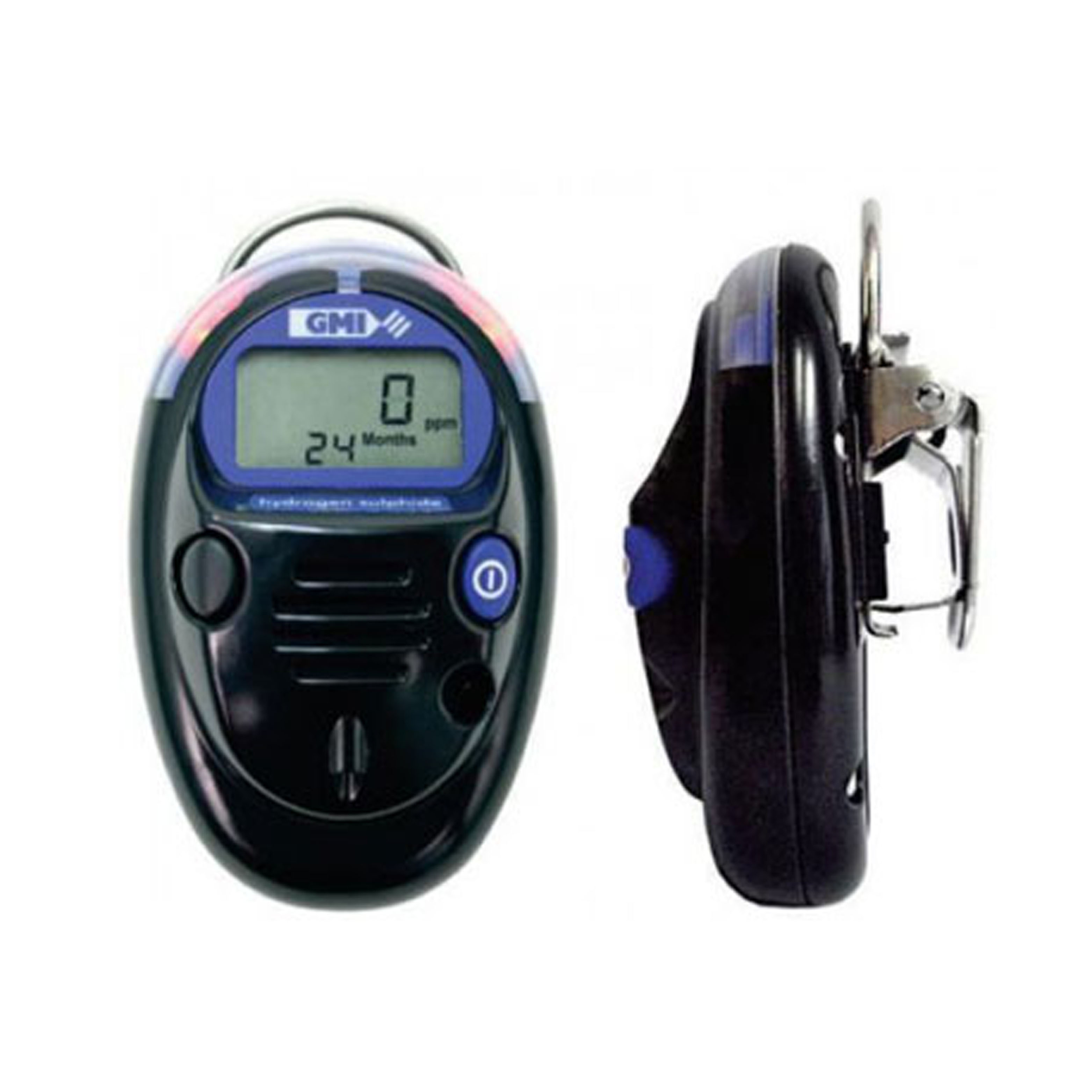

The PS1 monitors a single gas, for a variety of applications. Widely used in the oil and gas industry, this rugged, extremely lightweight and accurate monitor clips easily onto a collar or vest. This puts the instrument near the breathing zone for maximum user protection and safety. Audible, visual, and vibrating alarms alert the user, should gas be present and alarms can be latching until the user acknowledges that an alarm is present.

he PS1 Bump Test and Calibration Station is designed to give a fast visual indication that instruments are calibrated correctly. Just place the instrument into the cradle and close the lid. Calibration is complete in 90 seconds and bump testing in 60 seconds. Results can be easily extracted for Calibration Certificate printing at your convenience. Manual bump testing and calibration is also possible and only requires a cylinder of test gas and regulator. A manual calibration can be performed in less than two minutes with results stored on the PS1.

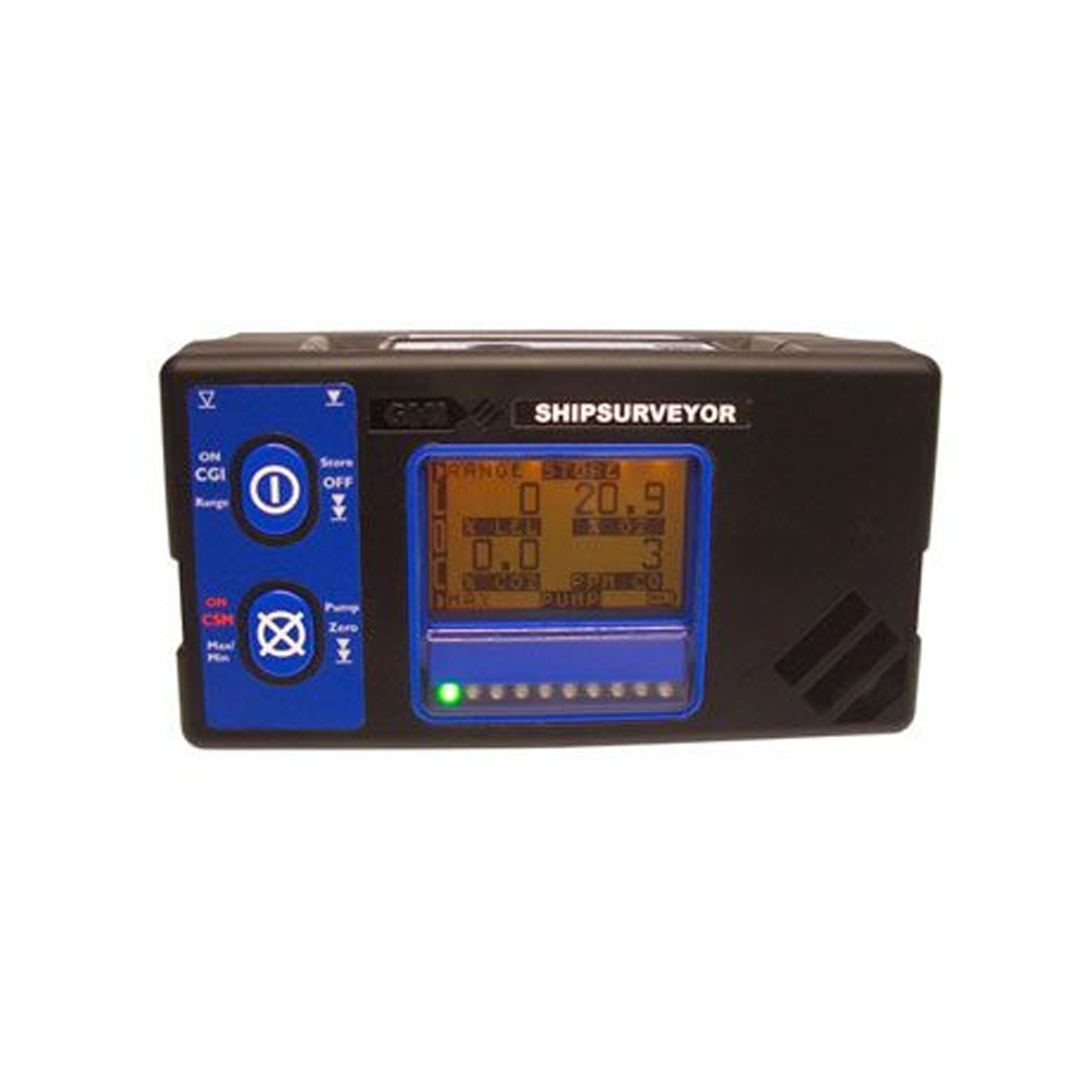

The Shipsurveyor was designed after extensive consultation with shipowners, ship managers and shipping personnel. The result is a range of 8 instruments dedicated to the marine market. The Shipsurveyor is versatile yet simple to use. The feature-rich range of instruments are suitable for all marine applications including confined space monitoring, cargo monitoring and inerting. Up to 5 gases can be simultaneously measured and displayed. The hydrocarbon range, which utilises the latest infrared technology, can be calibrated with Butane, Propane or Methane, depending on application.

The Shipsurveyor also comes complete with an impressive and practical suite of application software. Our bespoke software not only allows simple on-board calibration but crucially provides the ability to print calibration certificates. In addition, complete datalogging software comes as standard allowing logged gas readings, with vessel locations, to be uploaded to a PC. With ATEX and MED approval, the Shipsurveyor is the complete shipping solution.

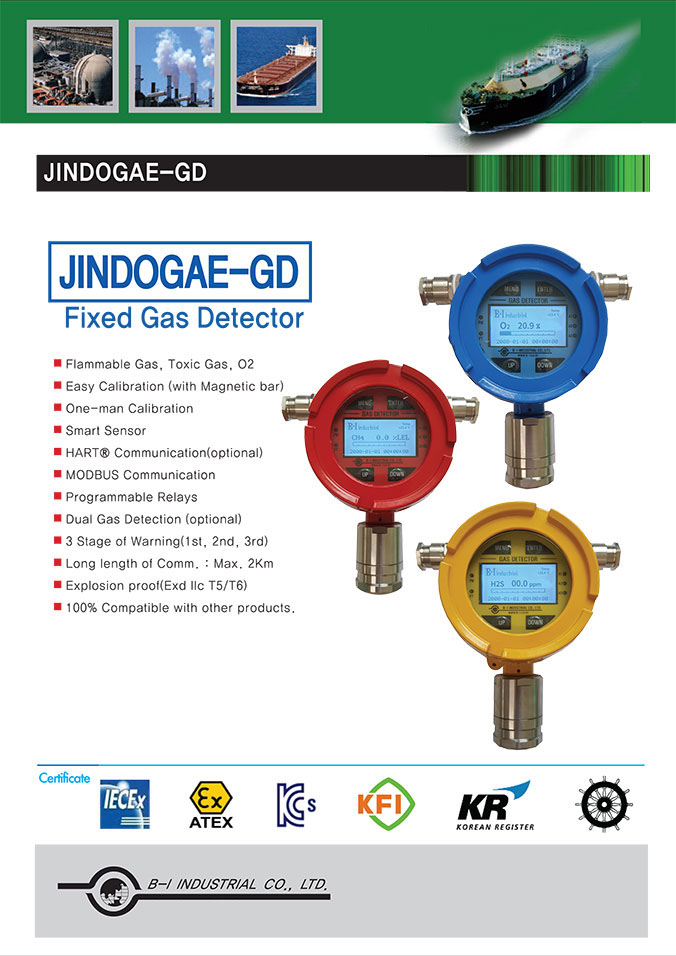

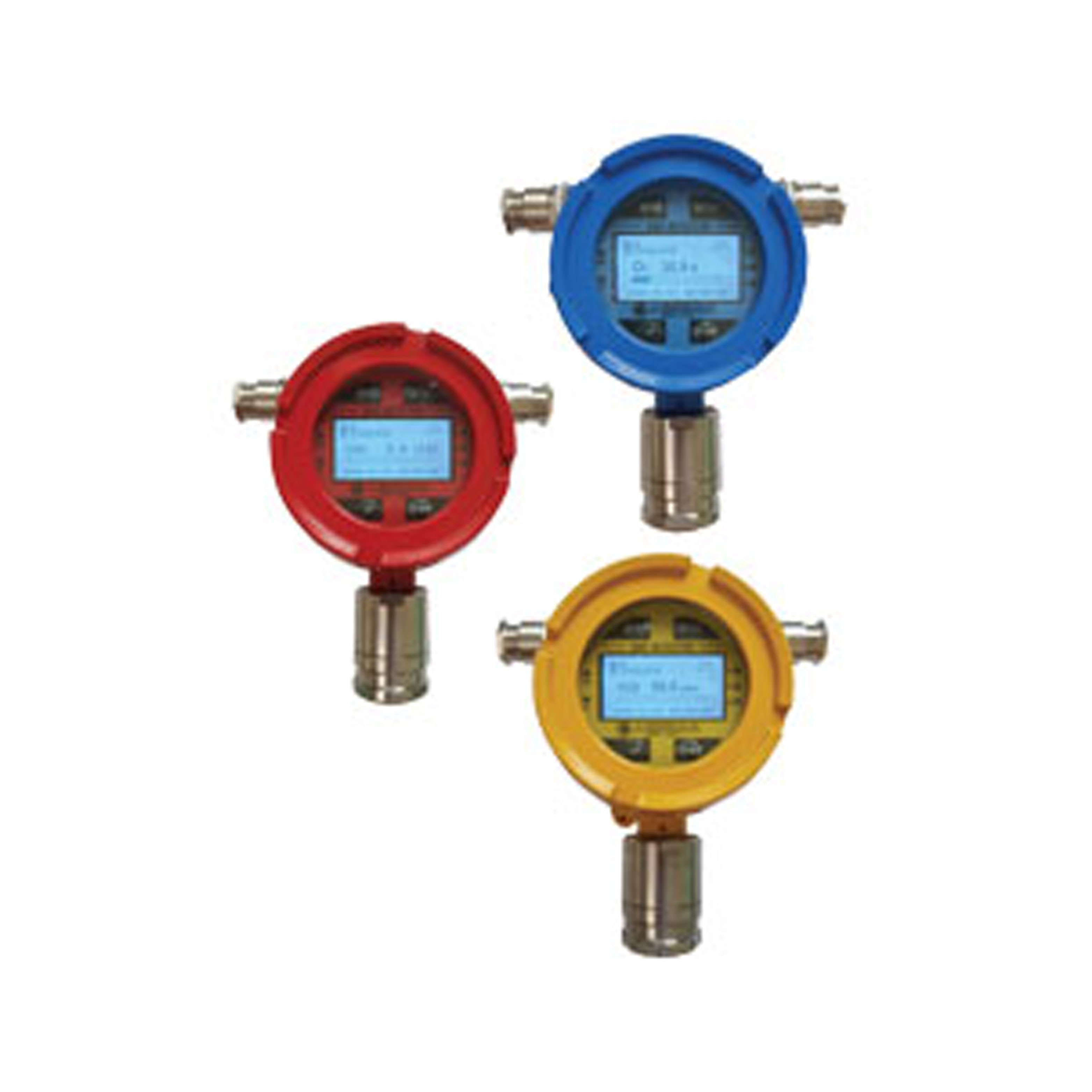

Details:

● Ex d IIC T4 Certificate

● Flammable, Oxygen, Toxic Sensors

● Output Signal: RS485, 4-20mA

● IP 65

● SUS 315 Sensor Housing

● 16 x 2 DIGIT Display

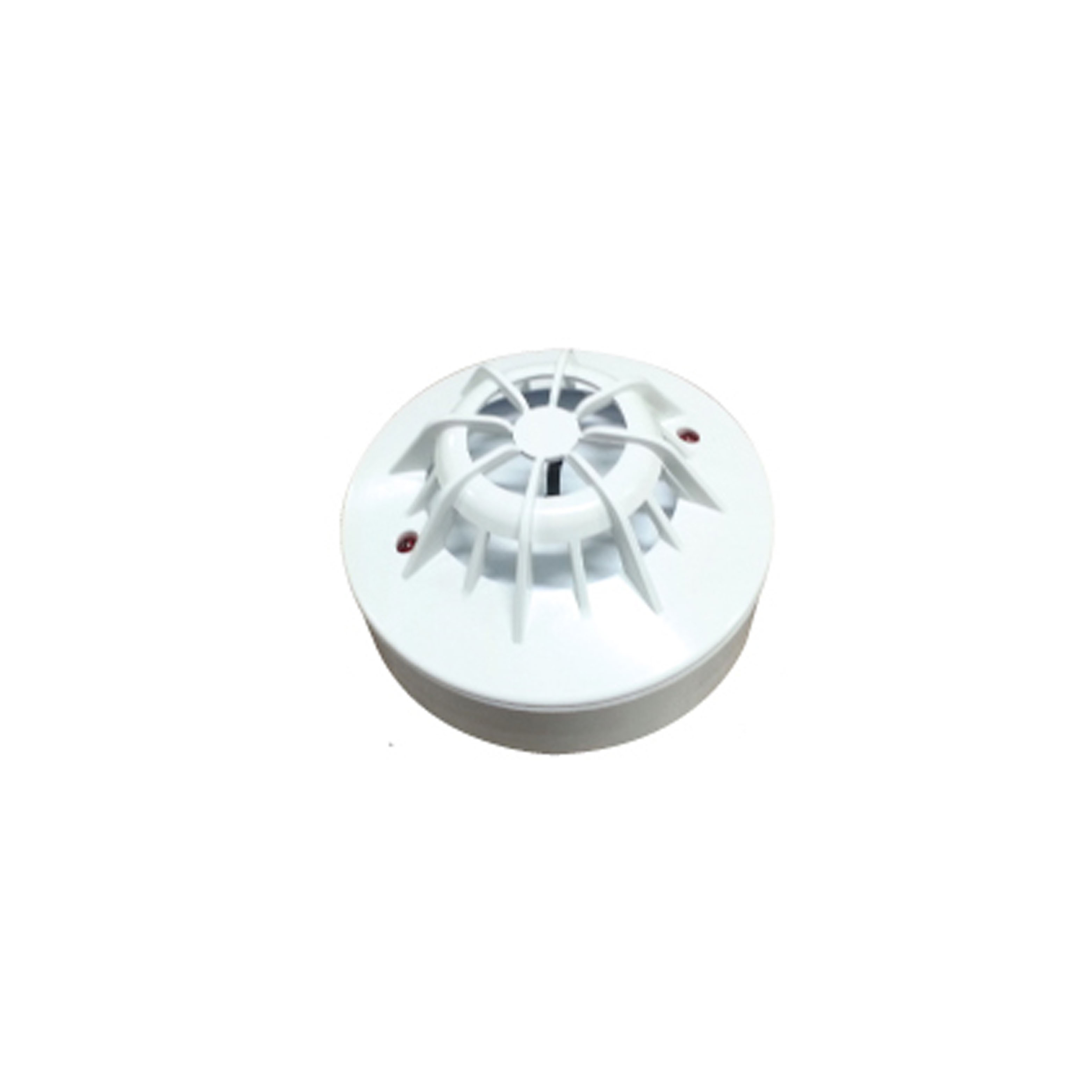

Details:

● Conventional & Addressable Detector

● Isolating Function

● A1 Grade

● Operating Voltage: 17-28V DC

● Quiescent Current: 350uA

● Intrinsically Safe type also available

● Certificate

● IECEx Ex ia II C T4/5T Ga

● ATEX Ex ia II C T4/T5 Ga

● KCs Ex ia II C T4/T5 Ga

● MED, KFI, KG

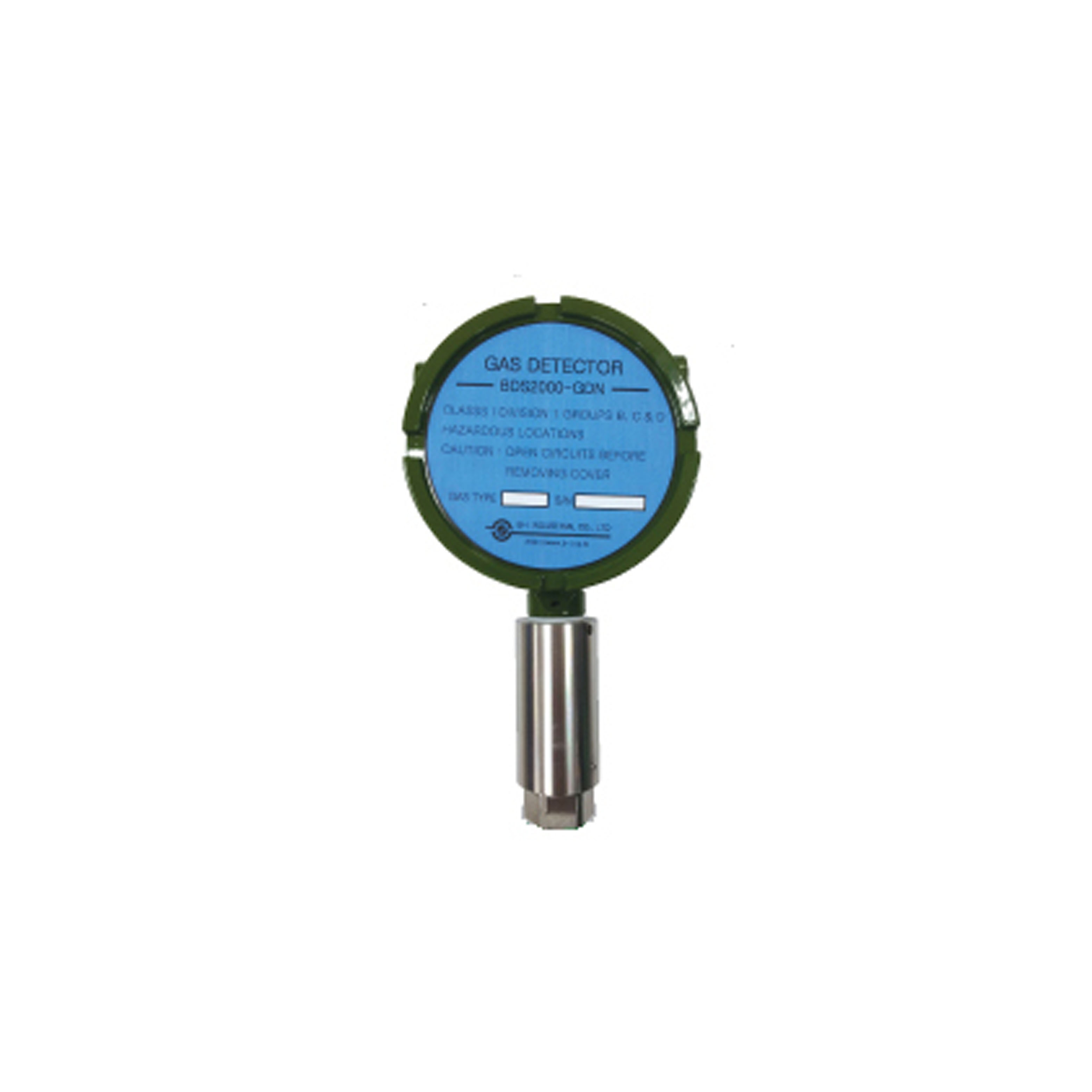

Details:

● Ex d IIC T4 Certificate

● Flammable, Oxygen, Toxic Sensor

● IP 65

● SUS 316 Sensor Housing

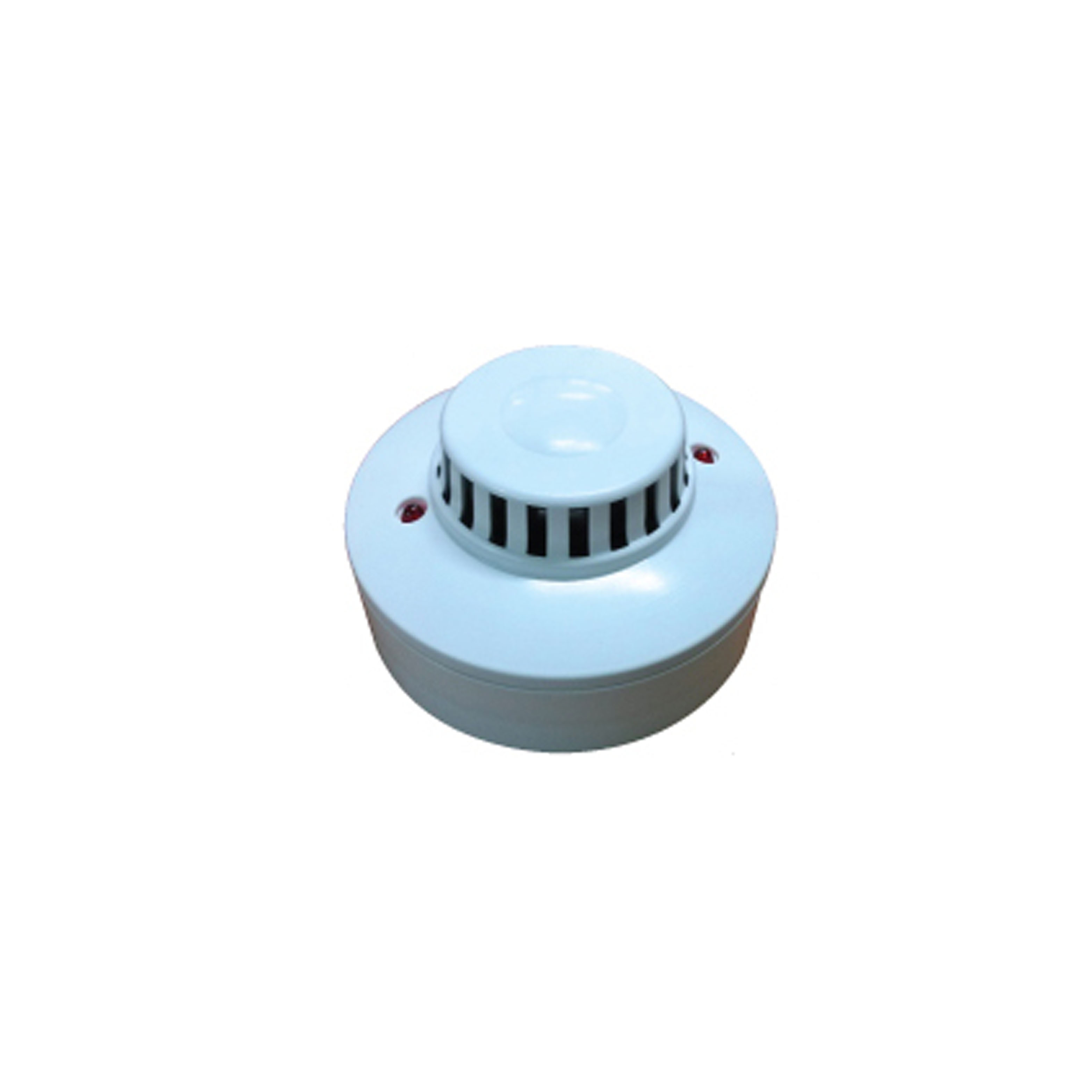

Details:

● Optical Smoke & Heat Detector

● Conventional & Addressable Detection

● Isolating Function

● Operating Voltage: 17 – 28V DC

● Quiescent Current: 550uA

● Intrinsically Safe: Ex ia IIC T4 Grade

Details:

● Ex d IIC T4 Certificate

● ATEX approval J/B

● Output Signal: RS485, 4-20mA

● IP 65

● Flammable, Oxygen and Toxic sensors

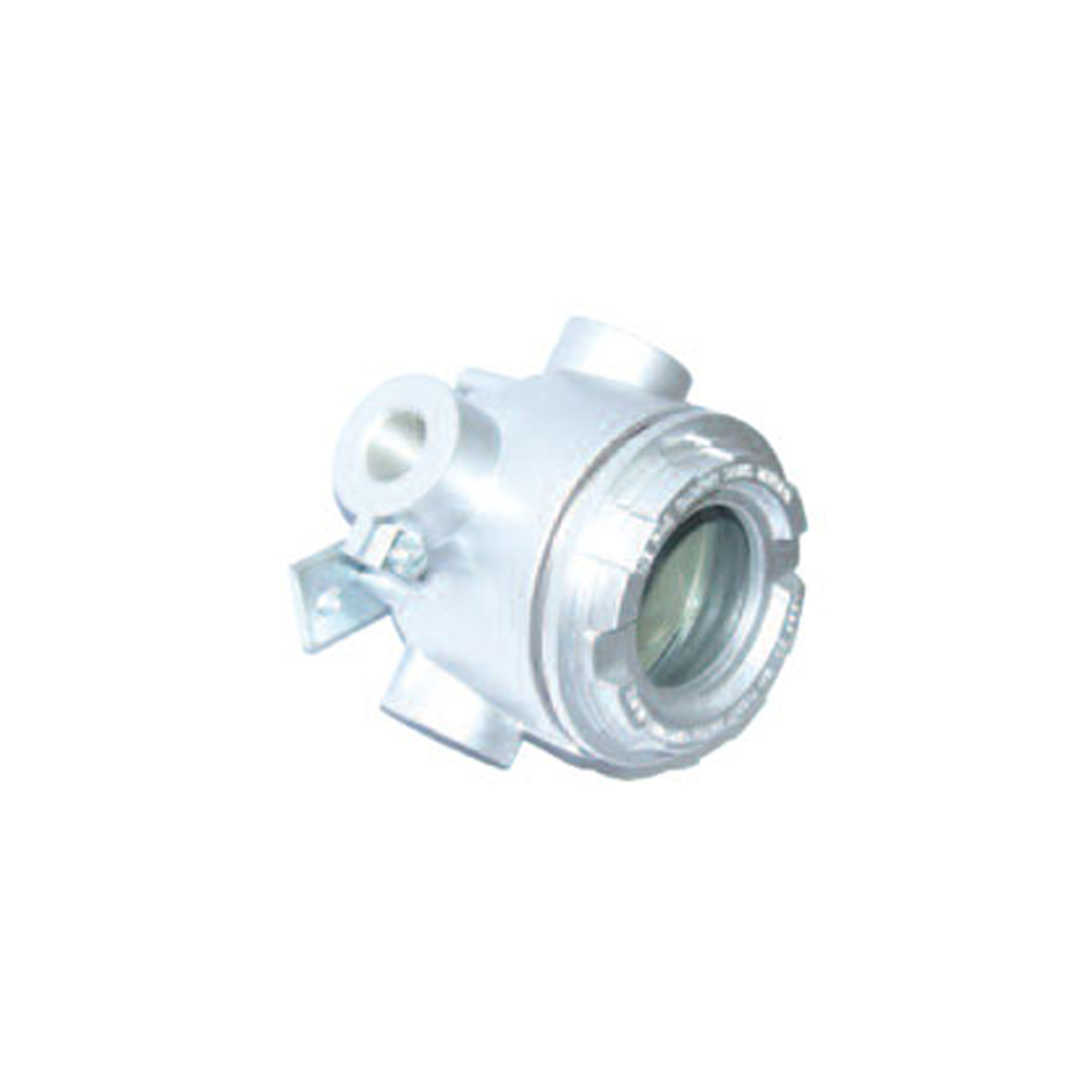

Details:

● Analogue Addressable UV Flame Detector

● Output Signal: RS485 / PLC / 4~20mA

● Operating Voltage: DC 24V

● Detecting View: 90°

● Working Distance: 40m (Certified Distance: 25m)

● MED, LR, KFI Type Approval

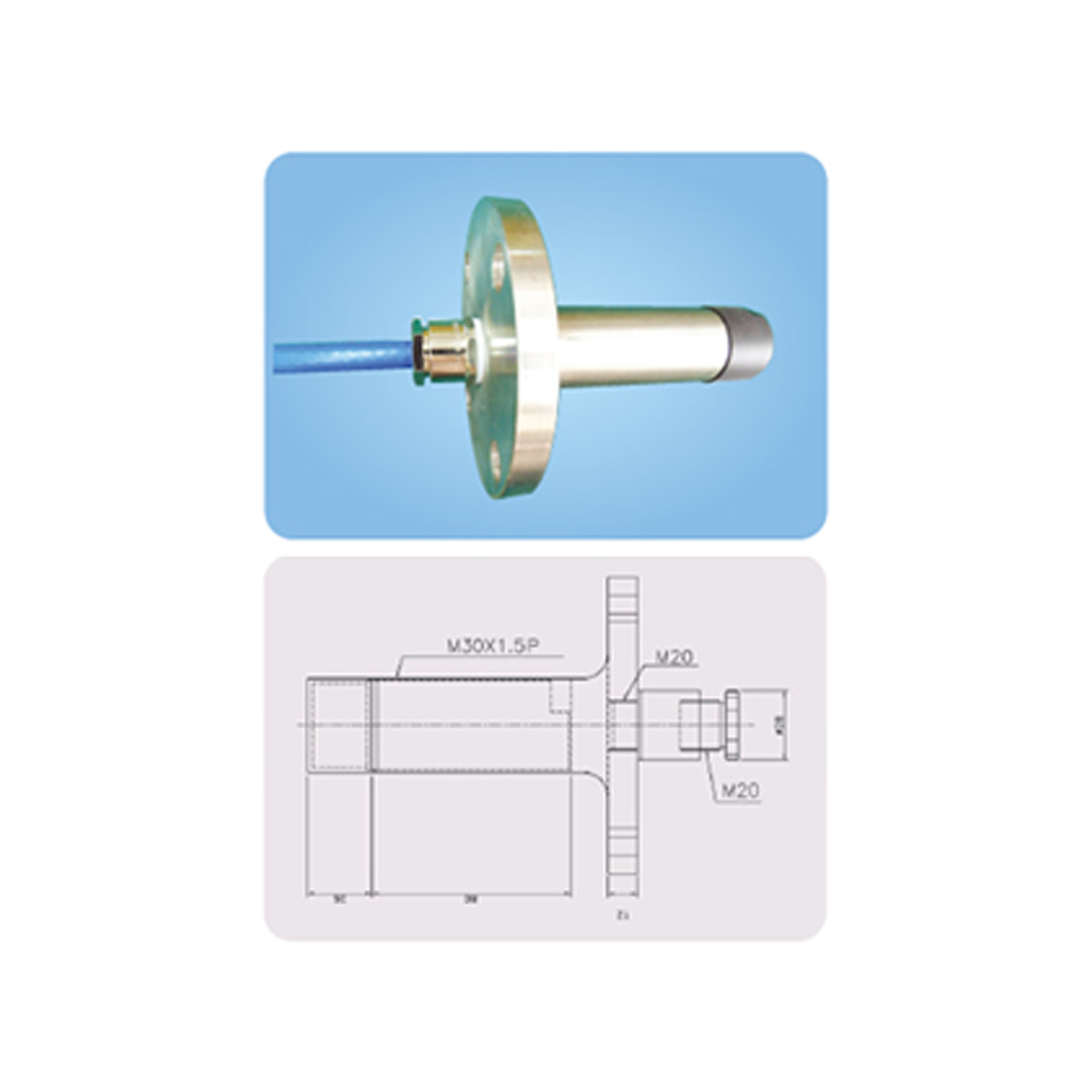

Details:

● Capacitance Proximity Type

● Sensing Distance: 15mm

● Housing Material: SUS 304/316

● Power Supply Voltage: 10~30VDC

● Top or Side Mounting

● EX ia II C T5
