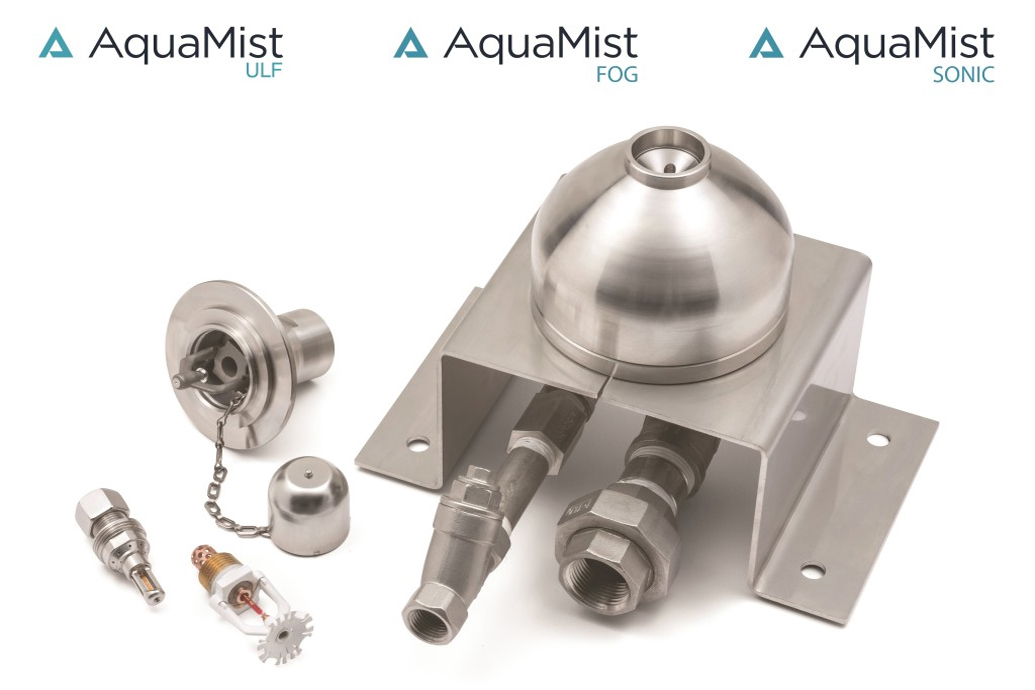

AquaMist
The AquaMist product range from Tyco includes globally approved Water Mist solutions backed by over 100 years of expertise in fire protection. AquaMist offers a broad range of systems to offer the most suitable fire suppression solution for you to help protect people and property against a wide variety of fire risks. The fine water mist generated is designed to extinguish fires, or limit fire growth at an early stage, depending on the asset to be protected. AquaMist can help provide effective cooling and fire control on solid, deep-seated fires such as furniture, paper and cables (Class A).
On fires such as lubricants or fuels (Class B) or cooking oils (Class F) AquaMist can provide assistance with extinguishment and prevention of re-ignition. AquaMist can help cool the surrounding area, limiting the spread of fire. The AquaMist system benefits include a reduction of up to five times in the water required (when compared to standard sprinkler systems), while providing a superior control on applicable Class A, B and F fires.
AquaMist ULF
A complete engineered solution including pumps, valves, discharge nozzles, pipes and fittings, all designed to function as one dedicated fire protection system.
The system operates at working pressures of 7 to 12 bar (101.5-174.0 psi), producing droplets of water through a range of nozzles, specifically engineered and approved for a variety of fire hazards. AquaMist ULF systems are supplied through authorized partners.
The AquaMist ULF training modules provide complete design, technical, commercial and lifecycle knowledge. Authorized partners are fully supported by the Tyco technical services team and all Tyco Fire Protection Products are manufactured to the highest quality.
Benefits of a low pressure Water Mist system include lower water demands, translating into lower pressure losses, smaller diameter pipes and lower installation costs when compared to traditional sprinkler systems. As the system uses only water without additives, it produces no adverse environmental impact.
Download : AquaMist Solutions overview
AquaMist SONIC
This system utilizes non-toxic and readily available extinguishing media (water and nitrogen). The AquaMist SONIC twin-fluid technology is safe for people and is environmentally-friendly.
It is constructed of industry proven, components including an ASME/ TPED approved stainless steel water storage tank. Capable of automatic detection and actuation and/or remote manual actuation, the system is installed and serviced by authorized distributors. Just two supersonic atomizers create 1.5 trillion superfine water droplets per second, producing a combined surface area of 121 m2 (1302 ft2). This is equivalent to covering the surface of an Olympic-size soccer field in one minute.
Additionally, the atomizers propel the droplets at high velocity throughout the combustion zone providing rapid fire knock-down. The atomizer is the key to the effectiveness of the AquaMist Sonic system. Supersonic technology generates a high-velocity, low-pressure zone that draws a thin sheet of water into a primary atomization region. A conical supersonic wave then creates a zone of extreme acceleration and high shear-rate, breaking the sheet into atomized droplets.
Download : AquaMist Solutions overview
AquaMist FOG
AquaMist FOG systems reduce the consumption of water and pipe diameters required whilst providing a fast and efficient method of fire protection for class A and B fires.
AquaMist FOG provides outstanding fire suppression protection for Turbine and Transformer rooms, Engine Test Cells, Diesel Engines and Alternators, Paint Spray Booths and Mechanical Escalators. The system operates at working pressures of 70 to 200 bar to produce droplets of small diameters at high speed. For each different protected hazard, optimized nozzles have been developed and tested. AquaMist FOG is based on principles of well-established hydraulic technology.
Spray heads are designed to discharge water in the form of Water Mist, with tiny drops creating a large effective cooling surface area of the fire and surrounding volume. The high speed of the droplets means that the mist can penetrate the hot fumes and reach the combustion area quickly AquaMist FOG systems are available as either pre-engineered cylinder system, or engineered pumped system, AquaMist FOG provides a versatile fire protection solution.
AquaMist FOG systems are one of the best options when piping dimensions or pressure losses are critical, for example in applications such as older heritage buildings or libraries and archives, where fragile infrastructure needs specialist care and attention.
Download : AquaMist Solutions overview
AquaMist Aplications

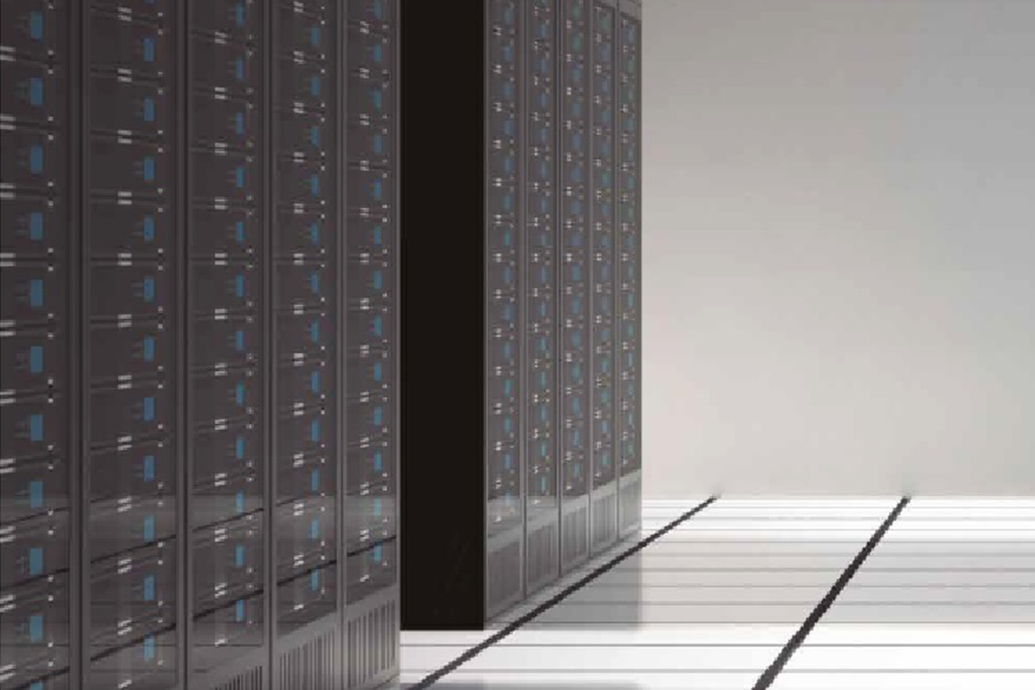

Digital integrity is a crucial aspect of commercial organizational operations around the world. Such organisations entrust their digital data to Data Centers to process, manage and store this vital information. The key concern for these organisations is business continuity; companies are dependent on Data Center information systems to run their operations. Company operations may be impaired or inactive completely if a system becomes unavailable. It is essential to provide a reliable infrastructure for digital information technology operations, to minimize any chance of disruption.
Information security is also a concern, and for this reason a data center has to offer a secure environment which minimizes the chances of a security breach. A data center must therefore keep high standards for assuring the integrity and functionality of its hosted computer environment. This is accomplished through redundancy of mechanical cooling and power systems (including emergency backup power generators) serving the data center along with fiber optic cables.
A data center is a facility used to house computer systems and associated components, such as telecommunications and storage systems. It generally includes redundant or backup power supplies, redundant data communications connections, environmental controls (e.g., air conditioning, fire suppression) and various security devices. Large data centers are industrial scale operations using as much electricity as a small town.
The true value of a data center lies within the data assets it manages, as well as the actual structure itself. Data is the very foundation of the businesses that use the center, whether they themselves also own the construction, or whether it is a co-location facility.
In an environment containing such volumes of business critical information, and a facility representing significant investment by or in support of data owners, it is essential to protect it from fire risk.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
Industrial fryers are cookers commonly used in the food industry to produce consumables, such as breaded meats, potato products and pre-cooked snacks, for example. They contain large amounts of cooking oil (up to 19,000 litres or 5,000 US gallons) and operate at temperatures of up to 354°C (670° F). Industrial fryers have turnover rates of between 5- to 12-hour for continuous production, 5-hour turnover would be sufficient to maintain good oil quality under most frying conditions. Extending the turnover to 12 hours creates much more pressure on the oil. Even with careful control of all other aspects of frying, including temperature, moisture, crumb, seasonings and filtration, the oil will deteriorate after continuous use.
Many batch fryers may be heated to the set temperature 30 minutes to 1 hour before frying operation starts. After start-up fryer usage will vary, with intensive usage perhaps a few times a day, separated by inactive periods. This combination of extreme heat and volume of fuel creates a potential yet significant fire risk. Fires occur if oil reaches its auto ignition temperature, or if ignition sources are introduced above the flash point. Large volumes of oil, once heated, maintain temperature and as a result remain a fire risk for a long time. Cooling the oil is therefore critical to avoid re-ignition. This can be difficult, considering the energy efficient design of modern industrial oil cookers which makes cooling a slow process.
A fire incident presents a major risk to any business. Fire can affect operations across entire facilities, causing potential loss of life as well as equipment, assets and production time, which can incur significant costs. Fire incidents in the food industry can be costly, and there are very strict procedures to avoid food contamination.
To maximise the productivity of an industrial frying facility and balance fire risk it’s crucially important to install an appropriate fire protection system. By swiftly suppressing the fire, cooling accelerant, the risk to life, downtime and clean-up costs can be minimized.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
Machinery Spaces in general terms are areas where complex machinery moves at speed, often in close proximity, generates heat and requires significant quantities of oil to optimise performance. The oils, lubricants and hydraulic oils used in Machinery Spaces and Plant Rooms can become flammable even though they are comparatively non-volatile liquids and have flash points higher than normal temperatures.
If a mechanical failure occurs creating a high temperature, perhaps through compression in an engine, contact of a liquid fuel with a hot surface, spark or flame the risk of a serious fire event is high. Machinery Spaces such as Turbine enclosures, Transformer & Generators, Engine test cells and Paint booths are among those posing the greatest fire risk. These spaces can be found in environments as diverse as Shopping Malls; in Elevator and Escalator Machinery rooms, Automotive Manufacture and Maintenance, Power Generation areas as well as in many other applications involving combustion machinery used for propulsion.
The fire risk in these environments poses significant threat to life and property because of the readily available fuels once the fire has ignited. It’s essential to mitigate this risk, to ensure the safety of machinery operatives and all people in the vicinity of plant of this type.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
- AquaMist SONIC
- AquaMist FOG

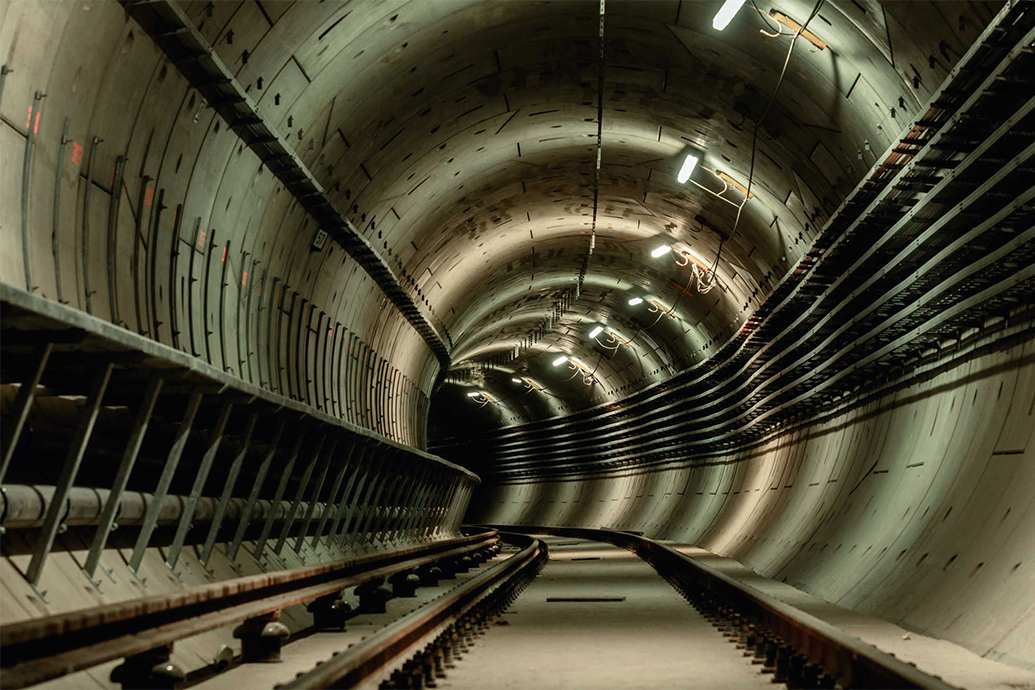

Modern cities depend on the integrity of cable tunnels for a host of data communications, power distribution networks and transport infrastructure. Located underground, tunnels can extend for long distances and are part of the vital information and energy infrastructure that serves commercial, industrial and residential needs. The volatility of electric cables in such systems poses a fire risk, which would simulatiously cause interruption in data communications.
Cable tunnels are environments which require ventilation systems to provide cooling and to enable system maintenance in an environment suitable for occupation by workers. Often located underground, the tunnels' ongoing management and maintenance as well as repair presents access concerns and space can be limited. A fire event in a cable tunnel has the potential to cause major disruption to traffic networks, businesses and neaby residents.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
An archive is a repository of historical records such as documents, artefacts and other items, accumulated over the course of organization's or person’s lifetime, that are kept to show the function of that individual or organization. Archives are records kept to provide historic insight, positioning, record of all kinds of legal, commercial, administrative or social activities and consist of records that have been selected for preservation on grounds of their enduring cultural, historical, or evidentiary value.
Archive records are typically unpublished and almost always unique, their value culturally, historically as well as financially, is substantial and in many cases invaluable. Fire poses great risk to the preservation of assets contained within Archives. Protecting the archives can frequently mean protecting the entire building, where the risk of deep-seated fires and complex layouts pose a greater challenge.
Archive storage arrangements can often consist of tightly packed materials, together with natural flue spaces which would promote the spread of fire, yet inhibit water access. With low ceilings, limited drainage facilities and large areas above and below ground archive spaces frequently have difficult access and egress. Archive fire protection solutions should require low quantities of water to fight, control and extinguish the fire, while offering swift extinguishing capability to protect as much of the assets as possible from damage.
AquaMist Solutions offer :
- AquaMist FOG
Commercial spaces, such as offices, retail, leisure and hotels contain a very varied mix of fire hazards. Such places of business can be occupied by vastly different numbers of people and varied critical assets at any one time, each representing a challenge for fire safety.
The levels and mix of fuels available within these facilities, changing occupancies and the configuration of the construction itself can each contribute to the rapid growth and development of a fire. The vertical openings within a building can enable smoke to spread with little effort. Means of egress can be compromised by construction features; smoke can infiltrate into enclosures and stairwells, as well as through the HVAC system.
Each commercial enterprise places value on the assets their business requires to perform, from their staff to the premises they occupy. Continuity and advancement are key to commercial success and so protecting the lives of staff as well as any structural asset itself are crucial to the delivery of the businesses activity.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
Areas of an office requiring fire protection are generally not limited to conference rooms, cubicles, personal offices or other occupied areas in which people are working. Hidden and confined spaces such as above ceiling and below-floor areas containing electrical and data cables, can also be susceptible to fire.
A fire event in a concealed space of an office can not only pose a threat to the safety of occupants, but it can also result in damage repair and business interruption. Lost opportunity attributed to downtime can have a significant impact on a business.
Protecting these spaces requires a solution that can balance effective fire suppression with helping minimize damage and ensure business continuity.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
People make hotels, offices and university facilities come alive. It’s them you’re thinking of when you choose the safest, most efficient fire suppression system.
VdS-approved AquaMist® ULF systems provide superior low-pressure water mist fire suppression. The innovative engineering and effective design of AquaMist® ULF systems allow you to use less water to protect your building than traditional sprinkler systems without sacrificing performance. Our systems feature a range of nozzles to help protect against different fire risks.
AquaMist Solutions offer :
- AquaMist ULF (Ultra Low Flow)
AquaMist ULF Nozzles
TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM30 are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires and the protection of data centers.
Technical Data :
- Discharge Coefficient:
- K=8,5 LPM/bar^1/2 (K=0.59 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Finish:
- Natural Brass
- Temperature Ratings:
- 57°C (135°F) / Bulb Fluid Color: Orange
- 68°C (155°F) / Bulb Fluid Color: Red
- 79°C (175°F) / Bulb Fluid Color: Yellow
- 93°C (200°F) / Bulb Fluid Color: Green
- 141°C (286°F) / Bulb Fluid Color: Blue
- 182°C (360°F) / Bulb Fluid Color: Mauve
- Data Sheet:
- View TFP2201

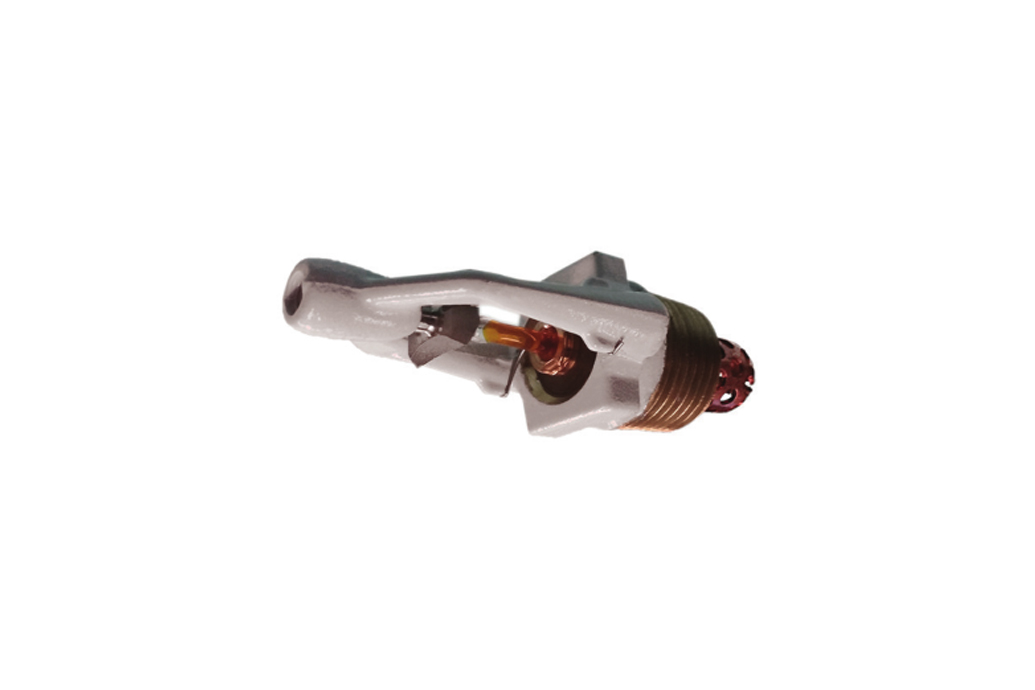

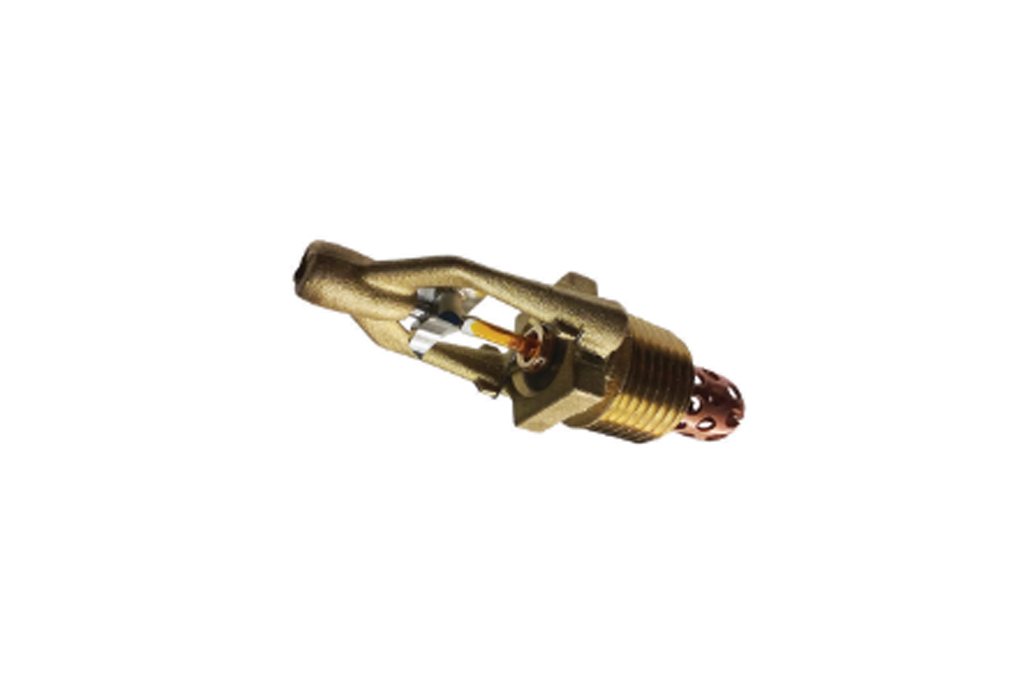

TYCO Ultra Low Flow AQUAMIST Type ULF AM33 Horizontal Sidewall Nozzles are closed (automatic) nozzles intended for use with engineered, water mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K=30,85 LPM/bar^1/2 (K=2.14 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Response Time Index:
- Quick Response
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Data Sheet:
- View TFP2205

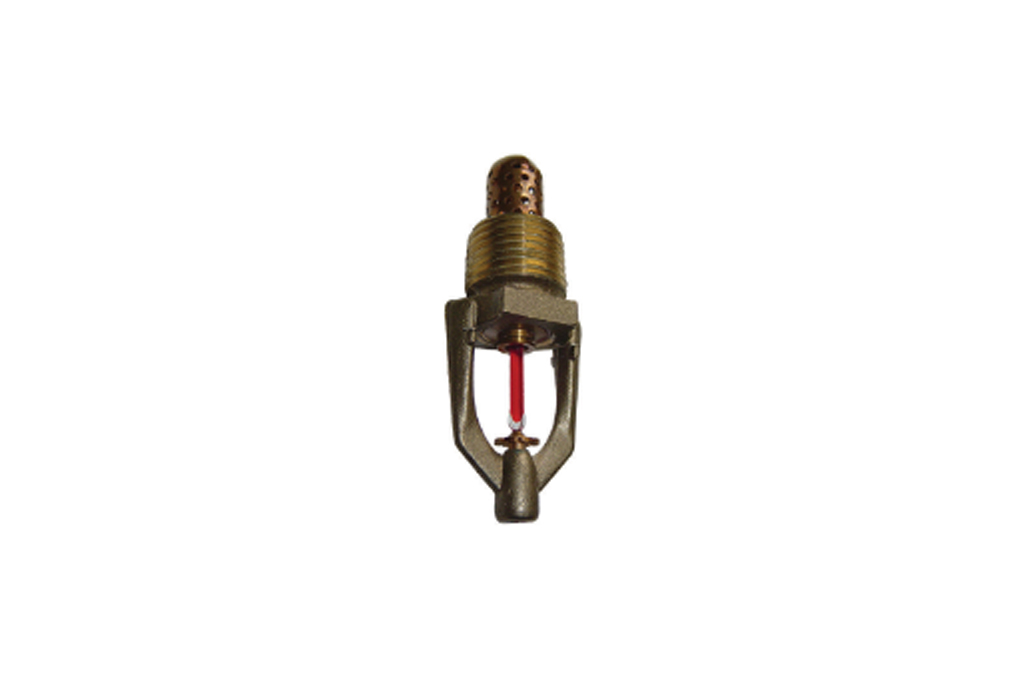

The TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM6 are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K = 4,7 LPM/bar^1/2 (0.33 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Response Time Index:
- Quick Response
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- 68°C (155°F)
- 79°C (175°F)
- 93°C (200°F)
- Data Sheet:
- View TFP2206
TYCO Ultra Low Flow AQUAMIST Type ULF AM34 Horizontal Sidewall Nozzles are closed (automatic) nozzles intended for use with engineered, water mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K=25,9 LPM/bar^1/2 (K=1.8 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57ºC (135ºF)
- Data Sheet:
- View TFP2207
The TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM11 are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K = 4,7 LPM/bar^1/2 (0.33 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Response Time Index:
- Quick Response
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- 68°C (155°F)
- 79°C (175°F)
- 93°C (200°F)
- Data Sheet:
- View TFP2211

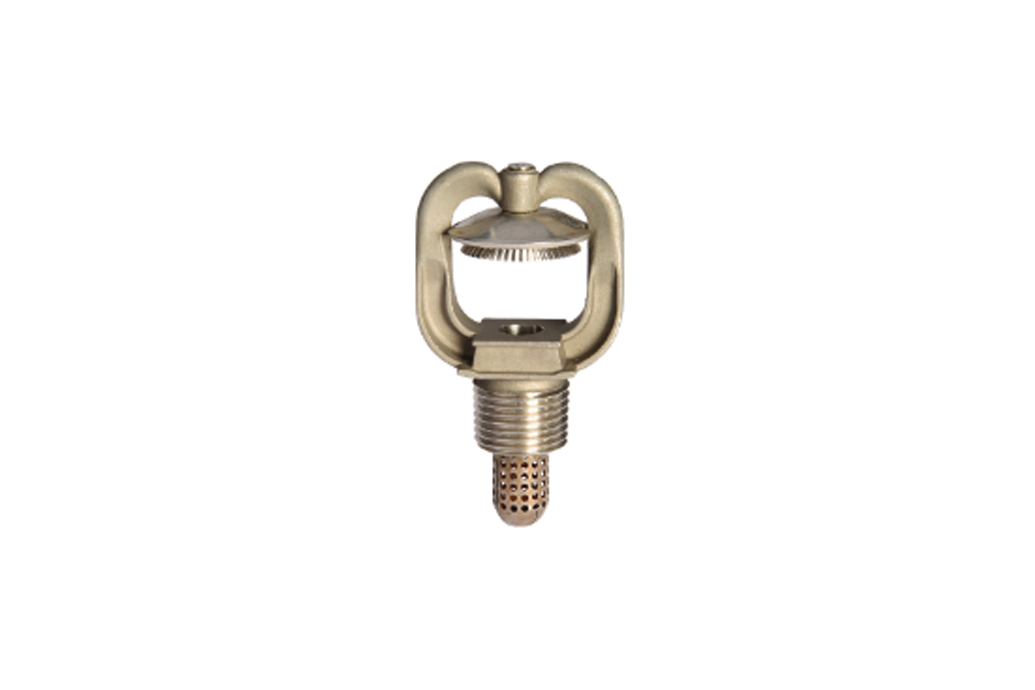

The TYCO Ultra Low Flow AQUAMIST Nozzle Type ULF AM15 is an upright, stainless steel, open (non-automatic) intermediate pressure nozzle which utilizes a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes. It is intended for use in engineered, water mist deluge systems in marine applications under the Guidelines for Approval of Fixed Water-Based Local Application Fire Fighting Systems for Use in Category A Machinery Spaces, MSC/Circ. 913 (4 June 1999).
Technical Data :
- Approvals:
- UL Certified
- Tested to IMO MSC/Circ. 913 (4 June 1999)
- Min. Working Press.:
- 175 psi (12 bar)
- Max. Working Press.:
- 250 psi (17,2 bar)
- Discharge Coefficient:
- K = 0.33 GPM/psi^1/2 (K = 4,7 LPM/bar^1/2)
- Thread Connection:
- 1/2 in. NPT
- Data Sheet:
- View TFP2215

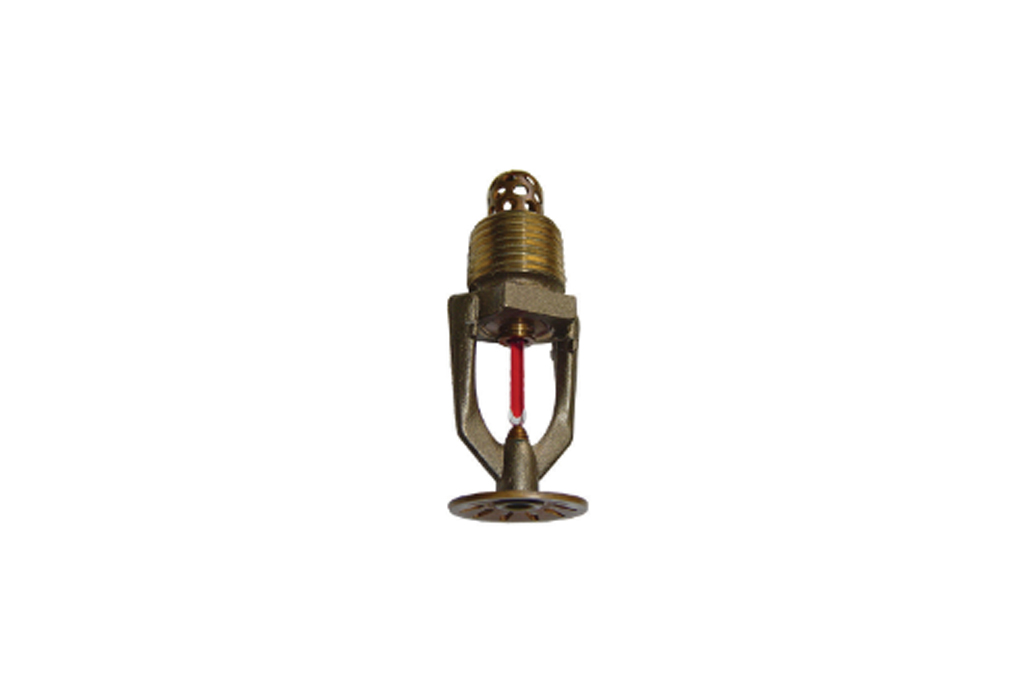

The TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM22 are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K = 9,2 LPM/bar^1/2 (0.64 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Response Time Index:
- Quick Response
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- 68°C (155°F)
- 79°C (175°F)
- 93°C (200°F)
- Data Sheet:
- View TFP2222

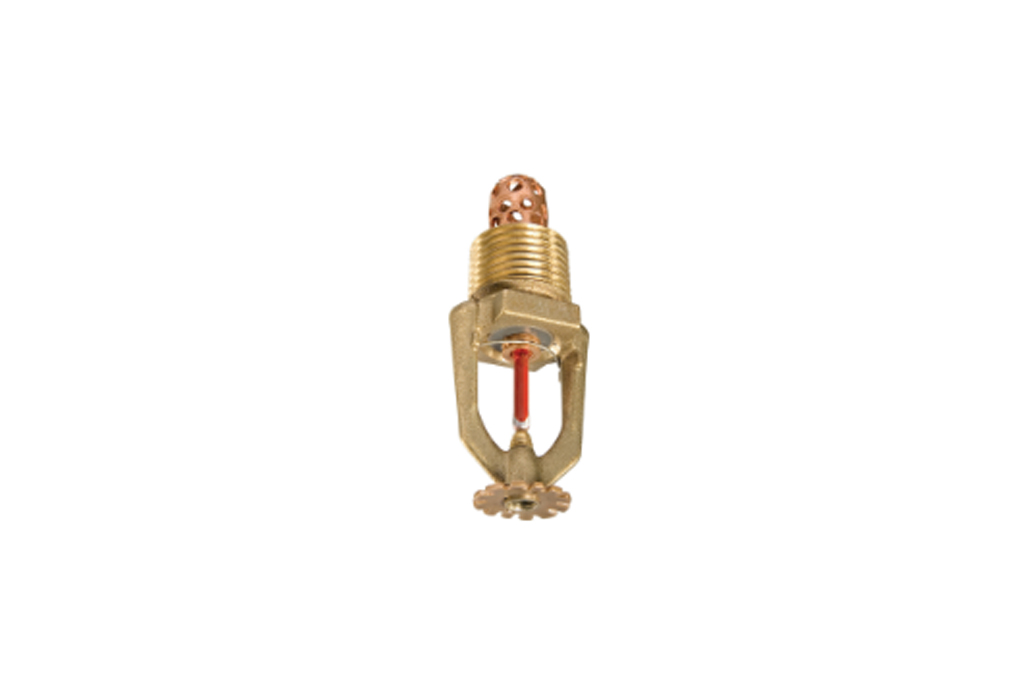

The TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM24 are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K = 9,2 LPM/bar^1/2 (0.64 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Response Time Index:
- Quick Response
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- 68°C (155°F)
- 79°C (175°F)
- 93°C (200°F)
- Data Sheet:
- View TFP2224

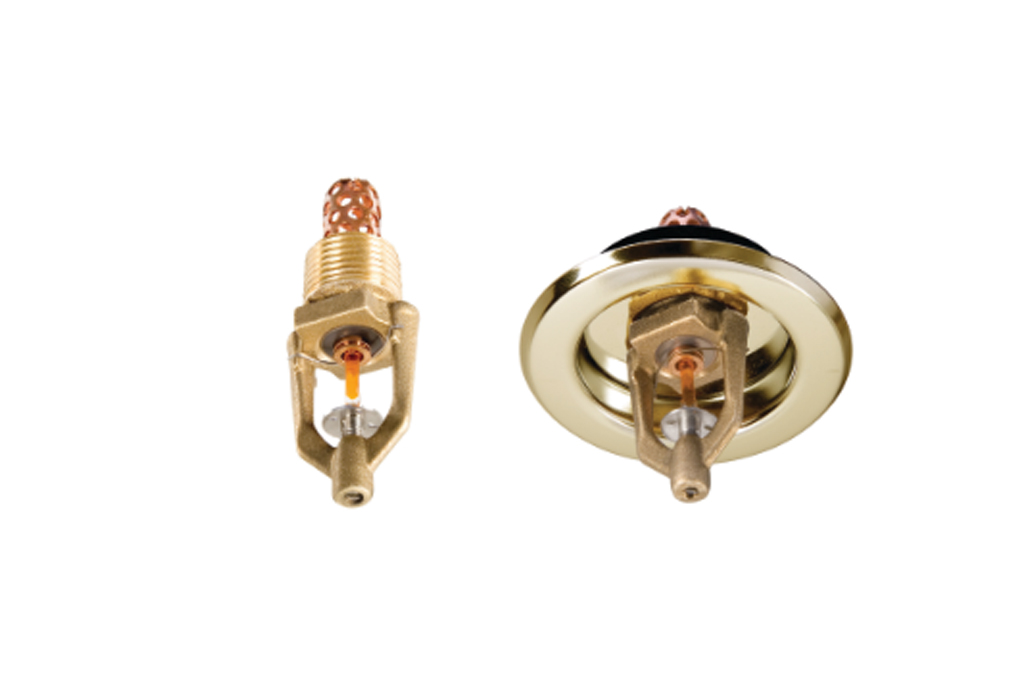

The TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM27 are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K = 11,7 LPM/bar^1/2 (K = 0.81 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- 68°C (155°F)
- 79°C (175°F)
- 93°C (200°F)
- Data Sheet:
- View TFP2227
TYCO Ultra Low Flow AQUAMIST Type ULF AM28 Nozzles are closed (automatic) nozzles intended for use with engineered, water-mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires.
Technical Data :
- Discharge Coefficient:
- K=11,7 LPM/bar^1/2 (K=0.81 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Response Time Index:
- 33,13 (m●s)^1/2 (60.24 (ft●s)^1/2)
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- Data Sheet:
- View TFP2228
TYCO Ultra Low Flow AQUAMIST Nozzles Type ULF AM29 are closed (automatic) nozzles intended for use with engineered, water mist systems. They are low-pressure nozzles that utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the control of Class A fires and the protection of data centers.
Technical Data :
- Discharge Coefficient:
- K=8,5 LPM/bar^1/2 (K=0.59 GPM/psi^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Finish:
- Natural Brass
- Pure White
- Signal White
- Chrome Plated
- Temperature Ratings:
- 57°C (135°F)
- 68°C (155°F)
- 79°C (175°F)
- 93°C (200°F)
- 141°C (286°F)
- 182°C (360°F)
- Data Sheet:
- View TFP2227
AquaMist Nozzles (Non-Automatic)

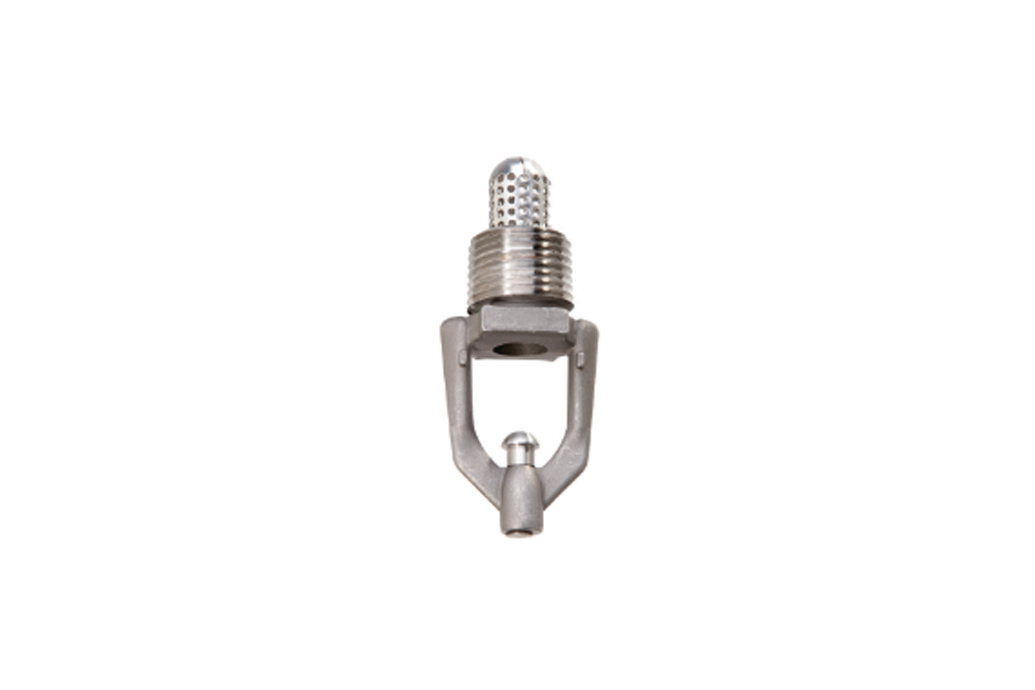

The TYCO Type AM31 AQUAMIST Nozzle is a stainless steel, open (nonautomatic) pendent nozzle intended for use with engineered, watermist deluge systems. It is an intermediate pressure nozzle which utilizes a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the extinguishment of Class K fires within industrial frying equipment.
Technical Data :
- Max. Working Press.:
- 250 psi (17,2 bar)
- Discharge Coefficient:
- K = 0.30 GPM/psi^1/2 (K = 4,3 LPM/bar^1/2)
- Thread Connection:
- 1/2 Inch NPT
- Finish:
- Stainless Steel
- Data Sheet:
- View TFP2202

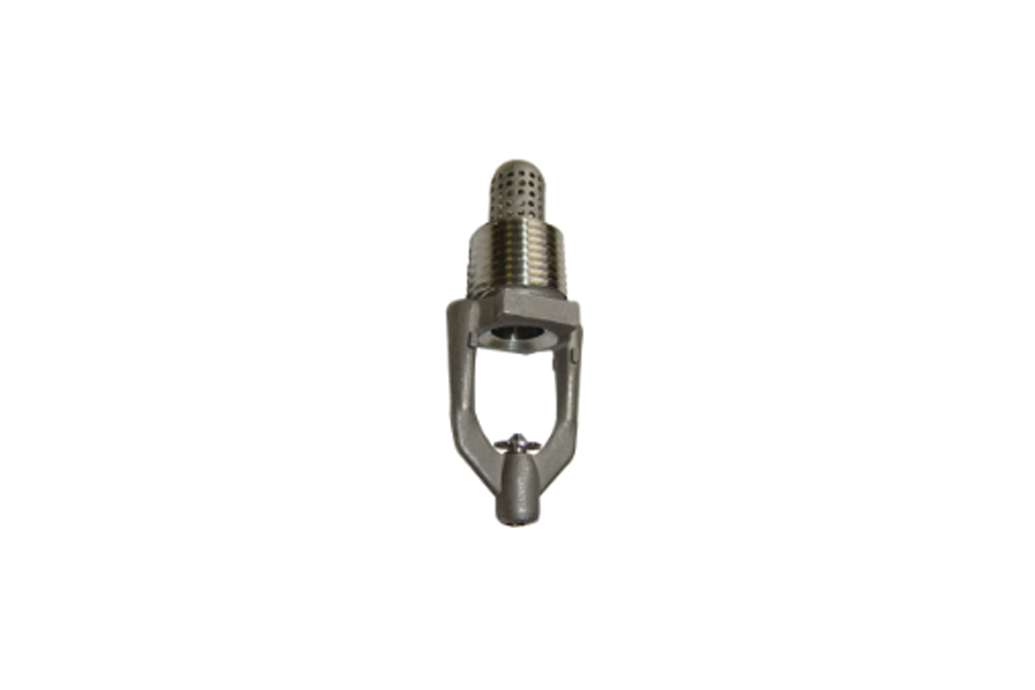

The TYCO Type AM4 AQUAMIST Nozzle is a stainless steel, open (non-automatic) nozzle intended for use with total compartment, engineered, water mist deluge systems. It is an intermediate pressure nozzle which utilizes a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the extinguishment of Class B fires, as well as incidental Class A fires.
Technical Data :
- Max. Working Press.:
- 250 psi (17,2 bar)
- Discharge Coefficient:
- K = 0.24 GPM/psi^1/2 (K = 3,5 LPM/bar^1/2)
- Thread Connection:
- 1/2 inch NPT
- Data Sheet:
- View TFP2204

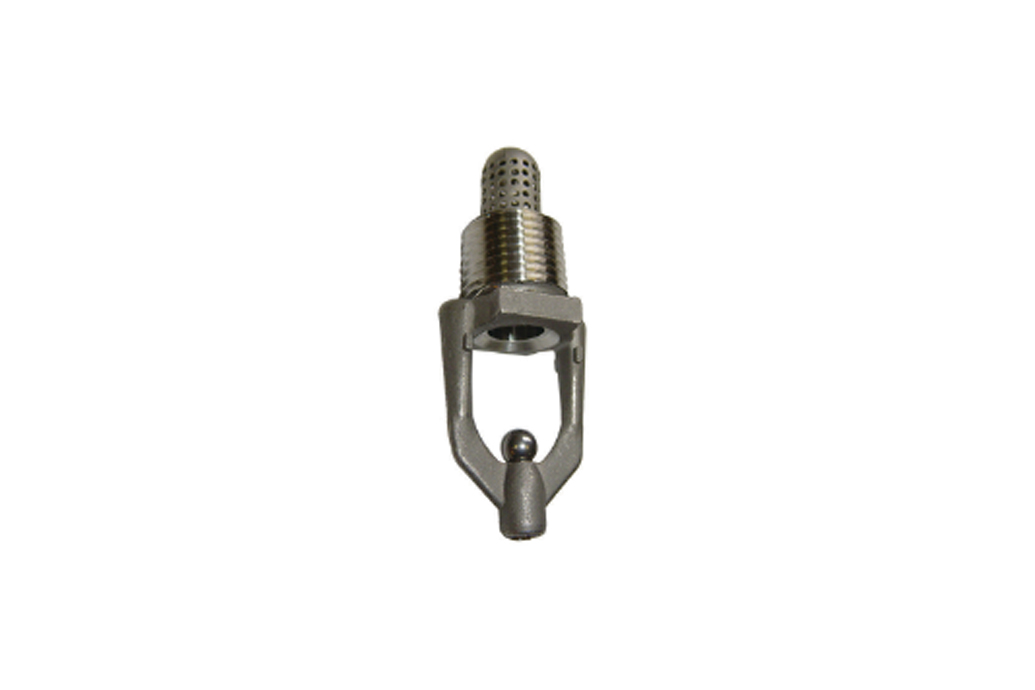

The TYCO Type AM10 and AM10B AQUAMIST Nozzles are stainless steel, open (non-automatic) nozzles intended for use with total compartment, engineered, watermist deluge systems. They are intermediate pressure nozzles which utilize a single fluid jet impinging on a diffuser to produce a spray having a range of water droplet sizes suitable for the extinguishment of Class B fires, as well as incidental Class A fires.
Technical Data :
- Max. Working Press.:
- 250 psi (17,2 bar)
- Discharge Coefficient:
- K = 0.24 GPM/psi^1/2 (K = 3,5 LPM/bar^1/2)
- Thread Connection:
- 1/2 inch NPT
- Data Sheet:
- View TFP2210
AquaMist Other Products

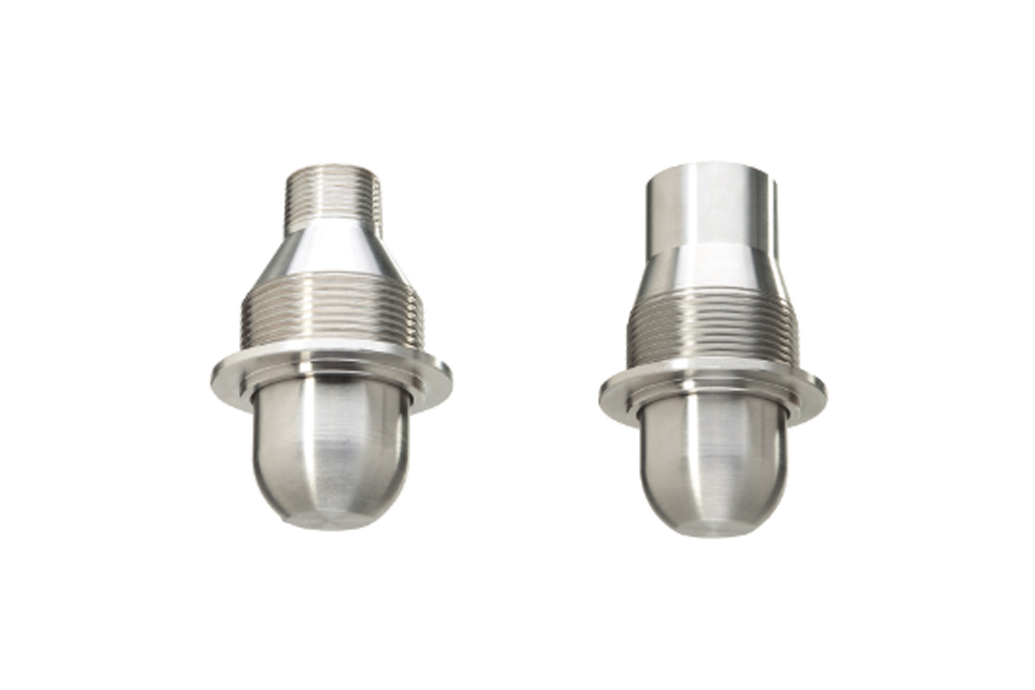

The TYCO Type IFP AQUAMIST Recessed Nozzle Fittings are stainless steel fittings which house the TYCO Type AM10 and Type AM31 AQUAMIST Nozzles. These fittings are designed to accommodate the Type AM10 and AM31 nozzles for industrial fryer primary cooking area applications. The fitting and nozzle combination is integrated with a tethered cap assembly. The cap conceals the nozzle which separates from the fitting during system discharge but remains attached by a length of chain.
Technical Data :
- Max Working Press. :
- 250 psi (17,2 bar)
- Thread Connection:
- 1/2 Inch NPT
- Finish:
- Stainless Steel
- Data Sheet:
- View TFP2242

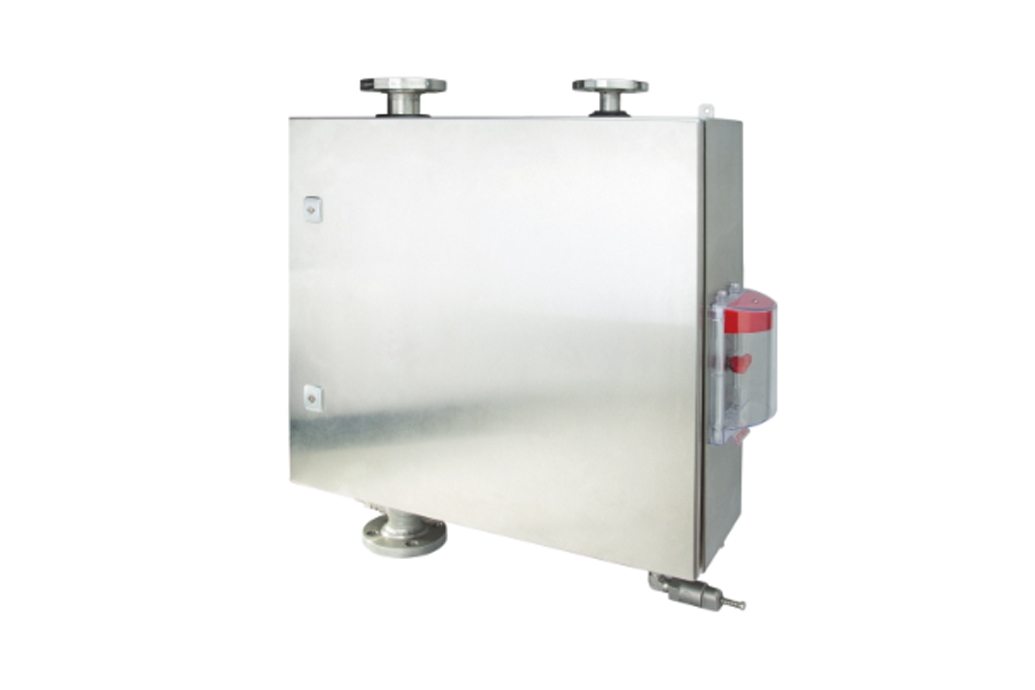

The TYCO AQUAMIST Industrial Fryer Protection (IFP) Zone Control Valve Cabinet is utilized in the IFP Intermediate Pressure Water Mist system designed to provide protection from industrial fryer hazards.
The Zone Control Valve Cabinet assembly is comprised of two zone control valves: the primary zone 1-1/2 inch DV-5 deluge valve with releasing solenoid valve and the fines box zone 3/4 inch solenoid valve.
Technical Data :
- Approvals:
- The TYCO IFP Zone Control Valve Cabinet is FM Approved as part of the FM Approved Industrial Fryer Protection System (Ref. Technical Data Sheet TFP2240). This component does not hold any individual approval and cannot be utilized in any other protection system.
- Materials:
- Cabinet, valves, tubing and fittings are stainless steel
- Data Sheet:
- View TFP2250

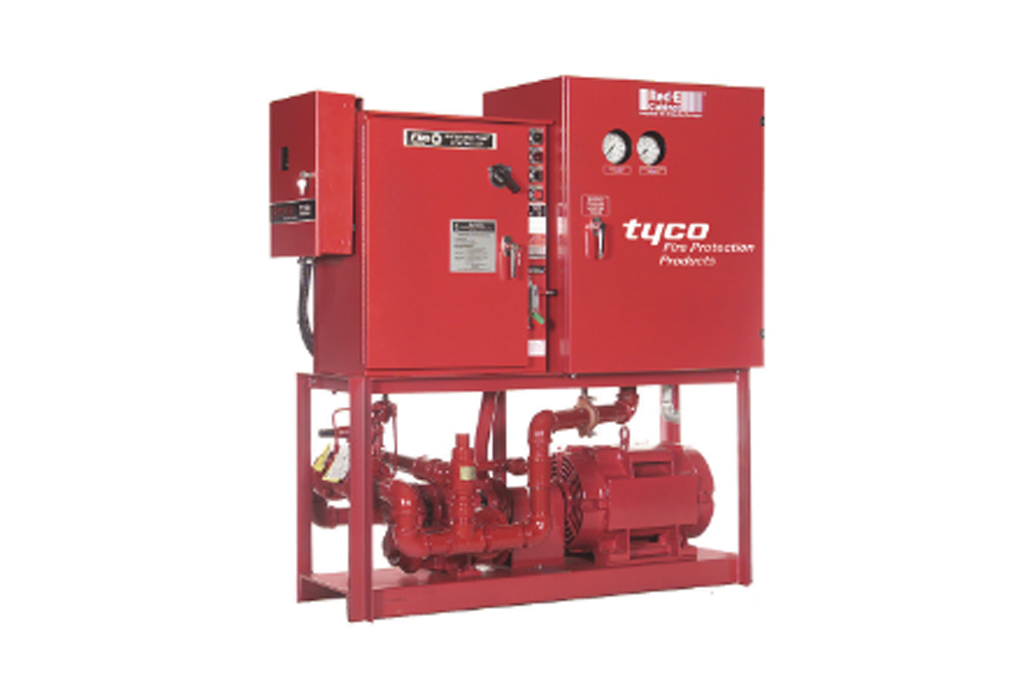

The TYCO AQUAMIST Mist Control Center (MCC) Pump Skid Unit is a preassembled, self-contained, control center for Ultra Low Flow AQUAMIST Systems. The compact skid unit, which has been pre-wired and pre-piped, is designed for ease of installation and to reduce time and labor required for field installation. The MCC is factory assembled and functionally tested, ready to connect to the system and an adequate water supply.
Technical Data :
- Maximum Pressures:
- MCC-1, 2 and 3:
-
- System Pressure .......... 250 psi (17,2 bar)
- Working Pressure ........ 240 psi (16,5 bar)
- MCC-A, B and C:
-
- System Pressure .......... 175 psi (12,1 bar)
- Working Pressure ........ 170 psi (11,7 bar)
- Inlet Supply Press.:
- 0 psi (minimum)
- Inlet Supply Capacity:
- Match system design calculations (minimum)
- Data Sheet:
- View TFP2270

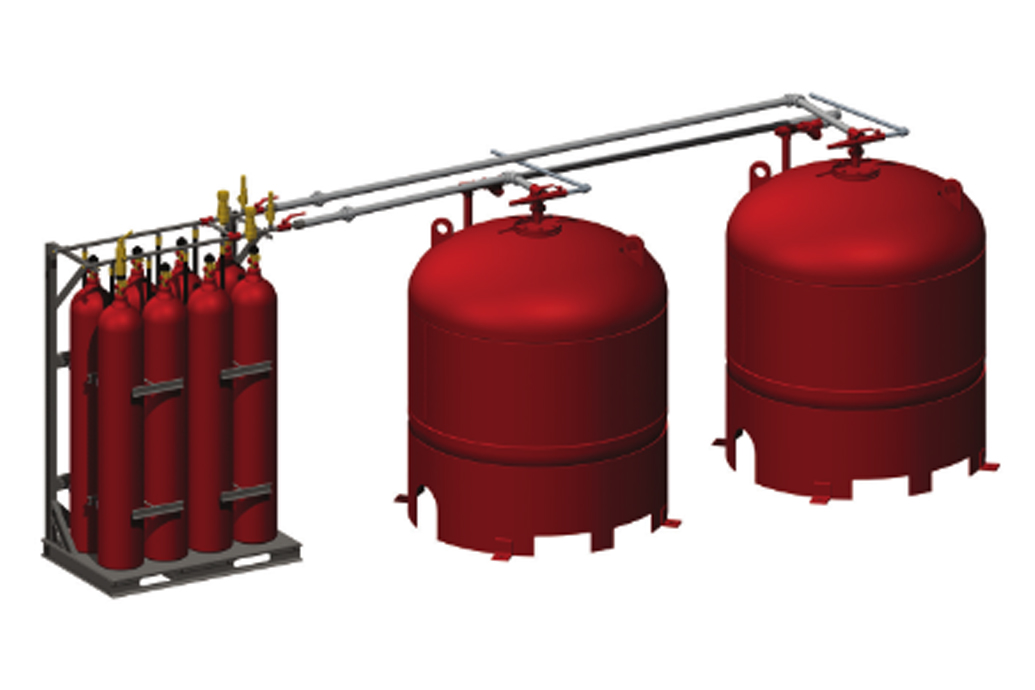

The TYCO AQUAMIST Red-E Mist Supply Skid is a tank-based nitrogenpropelled water supply unit for the Ultra Low Flow AQUAMIST System. The Red-E Mist Supply Skid consists of a bank of nitrogen supply cylinders and one or two water supply tanks. The nitrogen is regulated to pressurize the head space inside the tank, pressurizing the water used to supply the Ultra Low Flow AQUAMIST System.
Technical Data :
- Approval:
-
- Refer to Technical Data Sheet TFP2241 - TYCO AQUAMIST Red-E Mist Supply Skid Fire Suppression System for Industrial Fryer Protection
- Refer to Technical Data Sheet TFP2234 - A component of an FM Approved TYCO AQUAMIST total compartment deluge system using AM4 AQUAMIST Nozzles for the Protection of Machinery Spaces & Combustion Turbine Enclosures
- Data Sheet:
- View TFP2272
