SPECTRO GAS

Products of SPECTRO GAS Pte.,Ltd

SPECTRO GAS is the leading supplier for calibration gases in non-refillable cylinders and accessories. Our extensive range of ex-stock gas mixtures and accessories supports calibration and bump test requirements for all major brands of gas detectors and gas monitoring systems.

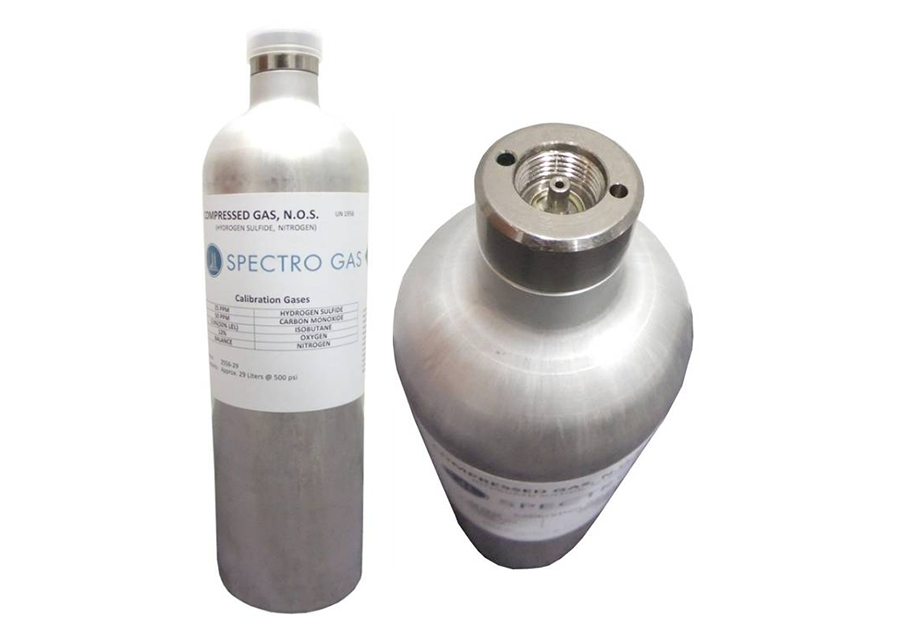

All our certified gas are NIST Traceable contained within D.O.T Non Refillable Cylinders

Mixture Gases Type

# Description
1 0.9% (50% LEL) Iso-Butane Balance Air
2 0.75% (50% LEL) Butane Balance Air

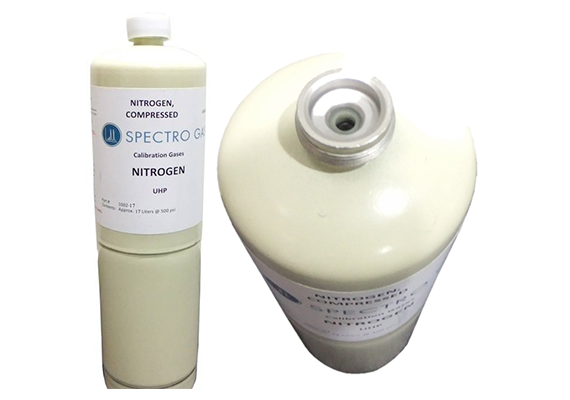

3 99.995% Nitrogen Purity
4 8% Butane Balance Nitrogen
5 99.5% Pure Butane
6 50 ppm Carbon Monoxide Balance Air
7 100 ppm Carbon Monoxide Balance Air
8 250 ppm Carbon Monoxide Balance Air
9 5% Carbon Dioxide Balance Nitrogen

.

# Description
10 25 ppm Hydrogen Sulphide Balance Nitrogen
11 50 ppm Hydrogen Sulphide Balance Nitrogen
12 2.5% Vol (50% LEL) Methane Balance Air
13 99.995% Pure Methane
14 2.1% Oxygen Balance Nitrogen
15 5.5% Oxygen Balance Nitrogen
16 0.7% Vol (50% LEL) Pentane Balance Air
17 1.1% Vol (50% LEL) Propane Balance Air
18 99.95% Pure Propane

4 Gases Mixture Type

# Description
1 2.5% Methane, 50 ppm Carbon Monoxide, 25 ppm Hydrogen Sulphide, 12% Oxygen Balance Nitrogen
2 2.5% Methane, 100 ppm Carbon Monoxide, 25 ppm Hydrogen Sulphide, 20.9% Oxygen Balance Nitrogen
3 2.5% Methane, 100 ppm Carbon Monoxide, 40 ppm Hydrogen Sulphide, 15% Oxygen Balance Nitrogen
4 2.5% Methane, 100 ppm Carbon Monoxide, 40 ppm Hydrogen Sulphide, 18% Oxygen Balance Nitrogen

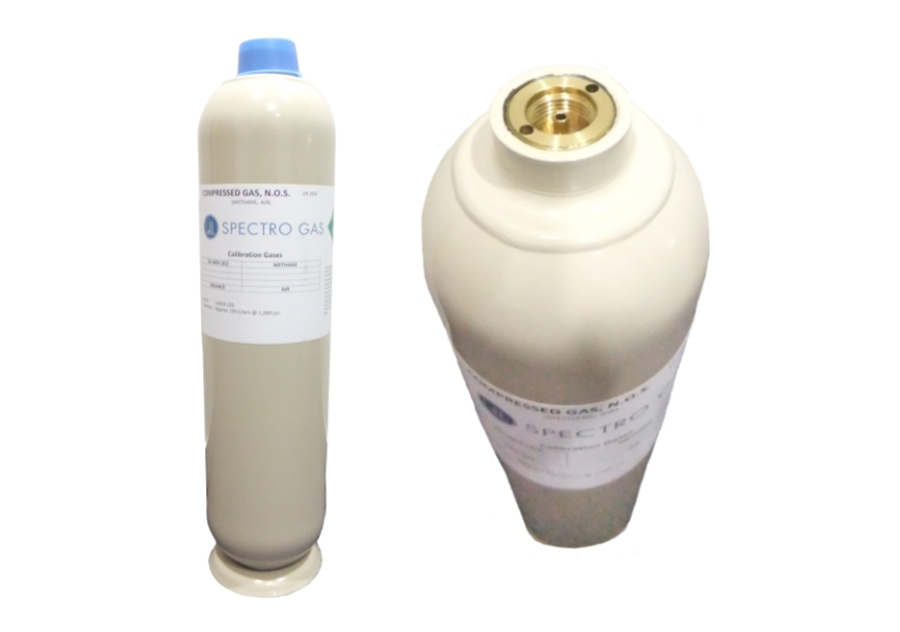

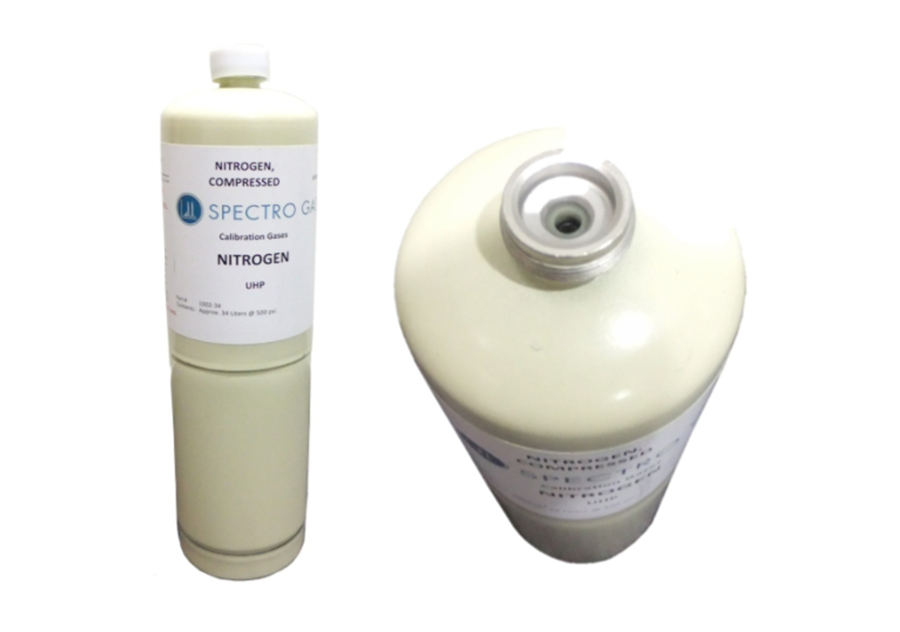

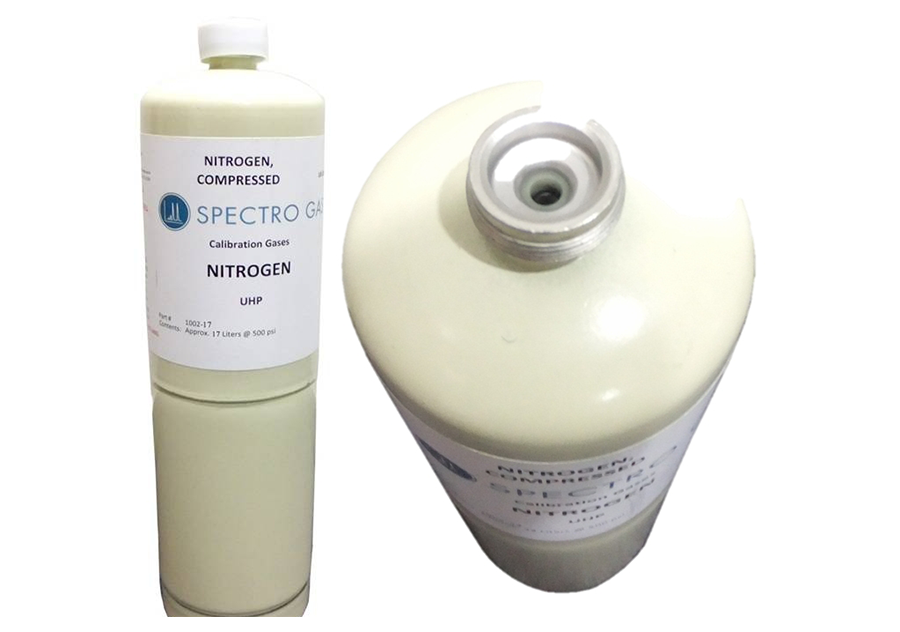

Non Reactive Gases

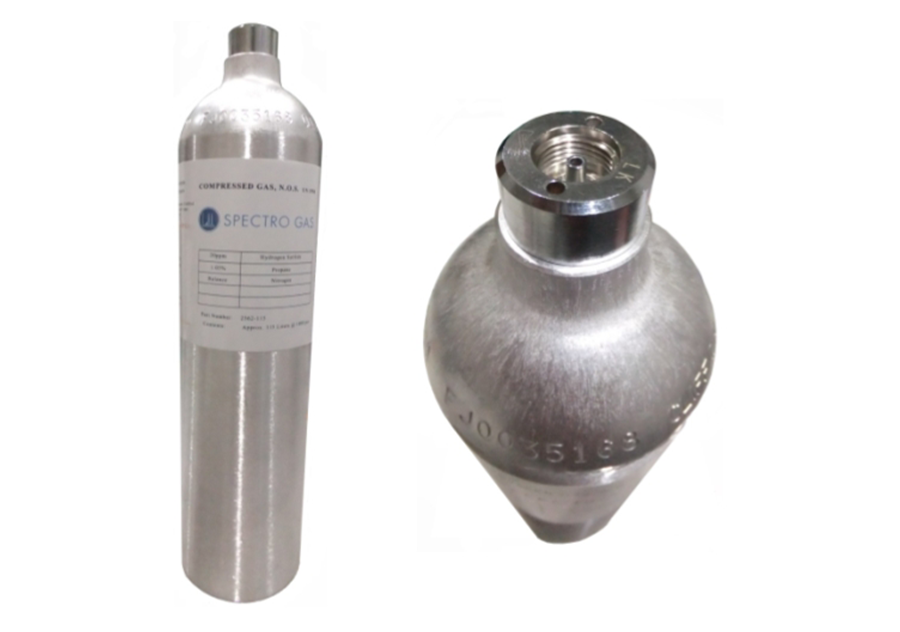

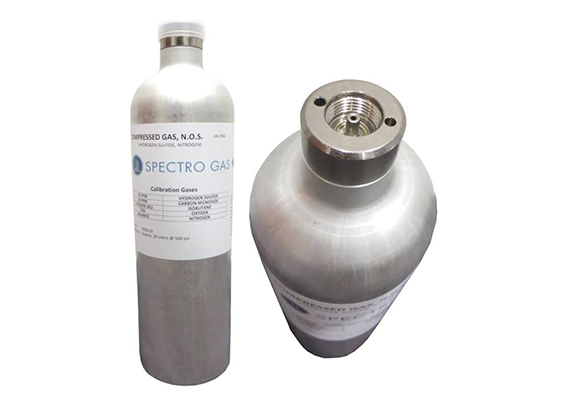

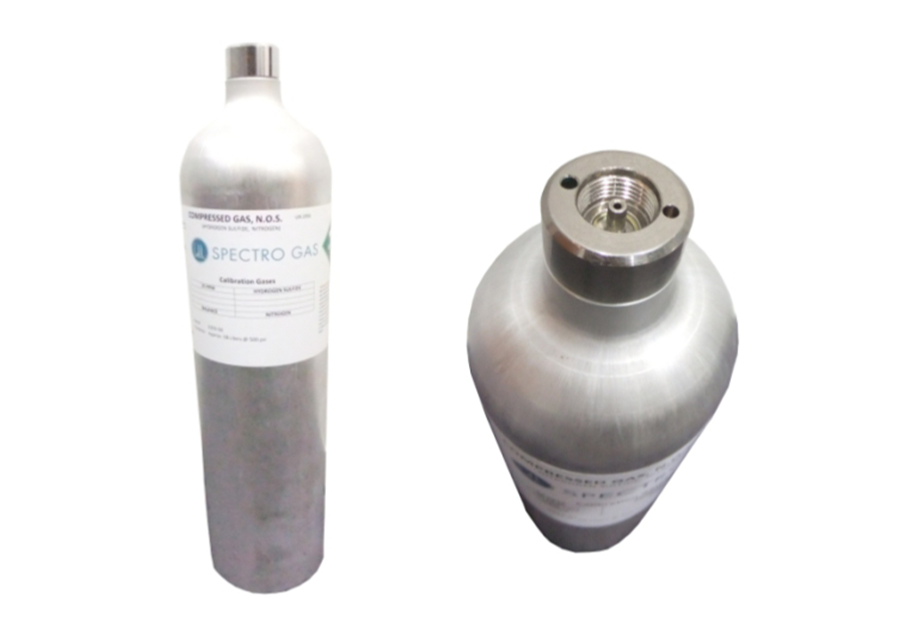

Reactive Gases

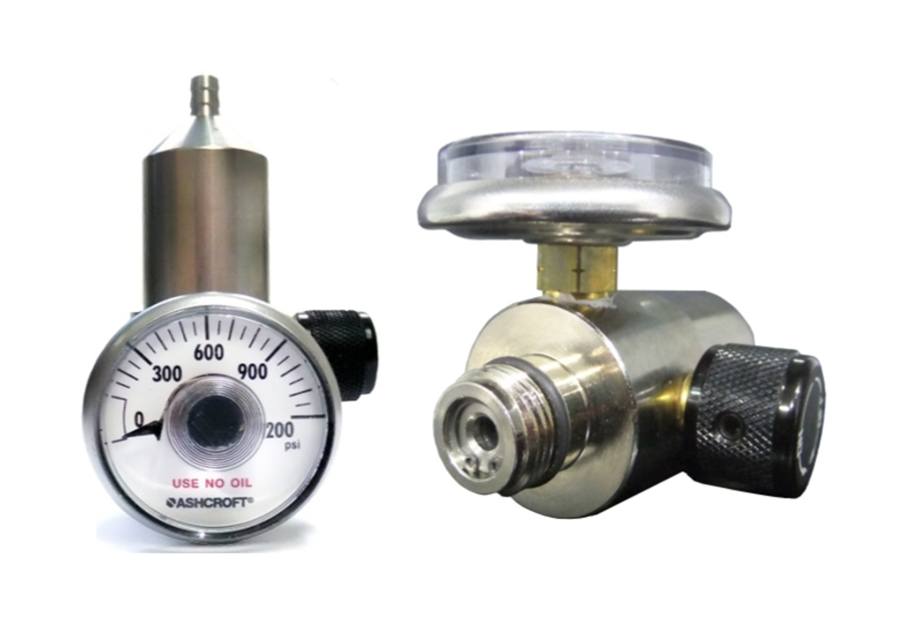

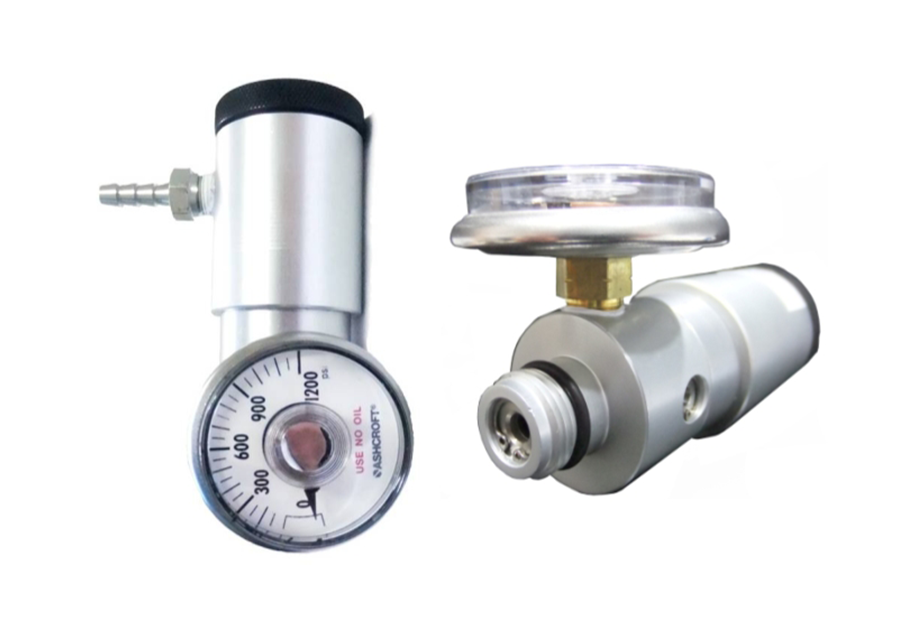

NRC Regulators

Inlet:
5/8” – 18 UNF (C10)
Outlet:
3/16” Hose Barb
Max Pressure:
1000 psi
Flow Rate Available:
0.3, 0.5, 1.0, 1.5 Litres/ Min
Pressure Gauge Reading:
0 ~ 1,200 psi
Main Surface Material:
Nickel Plated (Stainless Steel Body Available for Very Reactive Mixture)

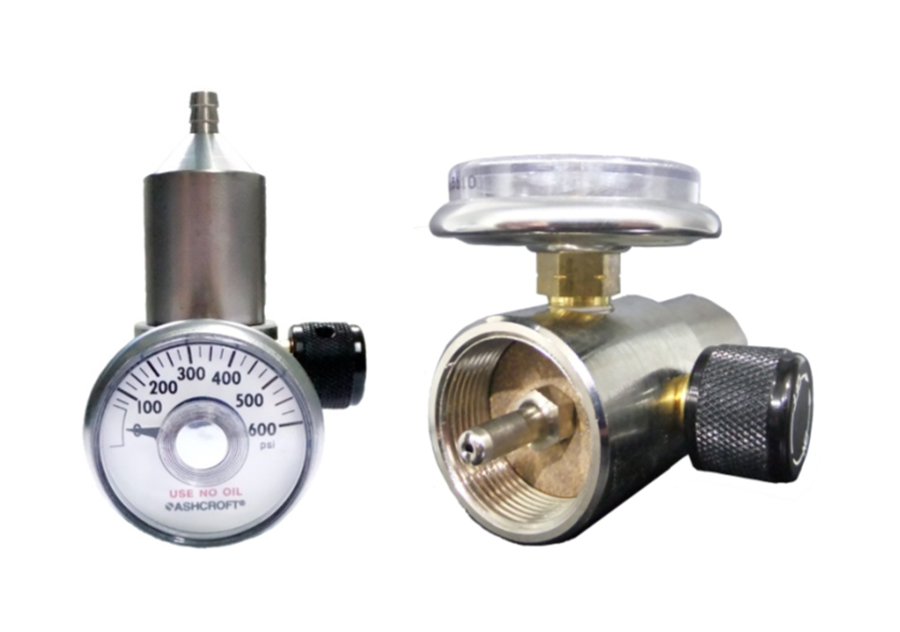

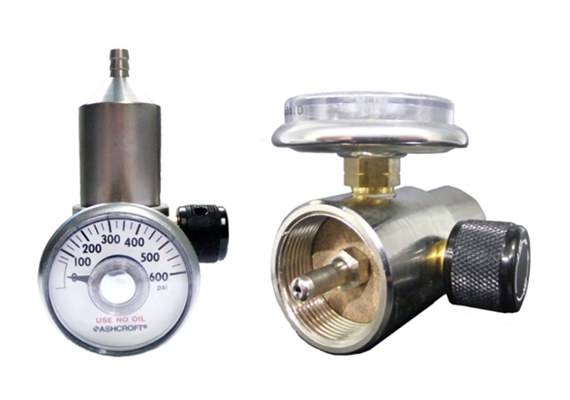

Inlet:
CGA 600
Outlet:
3/16” Hose Barb
Max Pressure:
500 psi
Flow Rate Available:
0.3, 0.5, 1.0, 1.5 Litres/ Min
Pressure Gauge Reading:
0 ~ 600 psi
Main Surface Material:
Nickel Plated (Stainless Steel Body Available for Very Reactive Mixture)

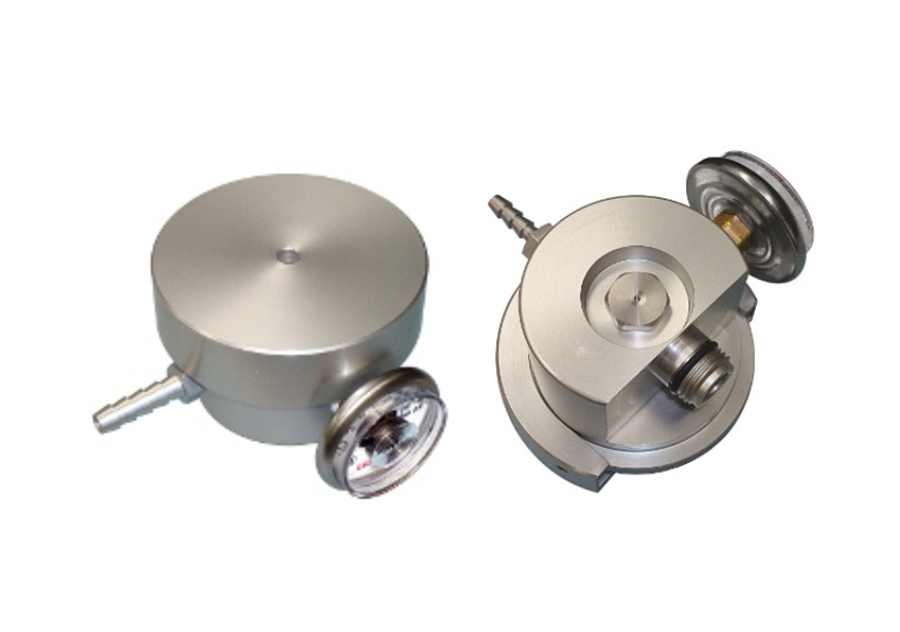

Regulator with multiple preset flowrates
Inlet:
5/8” – 18 UNF (C10)
Outlet:
3/16″ Hose Barb
Max Pressure:
1000 psi
Adjustable Flow Rate:
0, 0.3, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 5.0, 6.0, 7.0, 8.0 Litres/ Min
Pressure Gauge Reading:
0 ~ 1,200 psi
Main Surface Material:
Aluminum (Stainless Steel Body Available for Very Reactive Mixture)

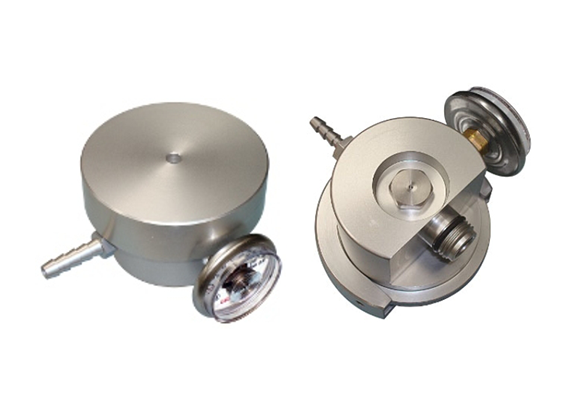

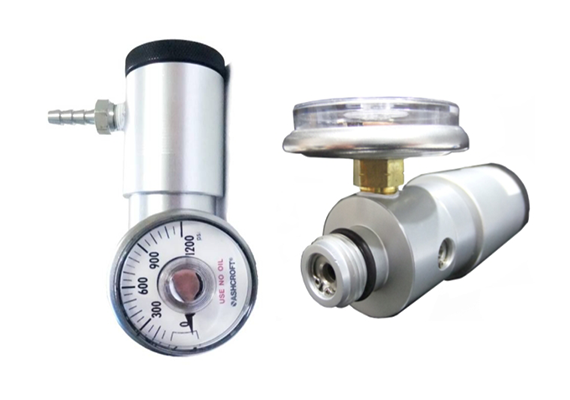

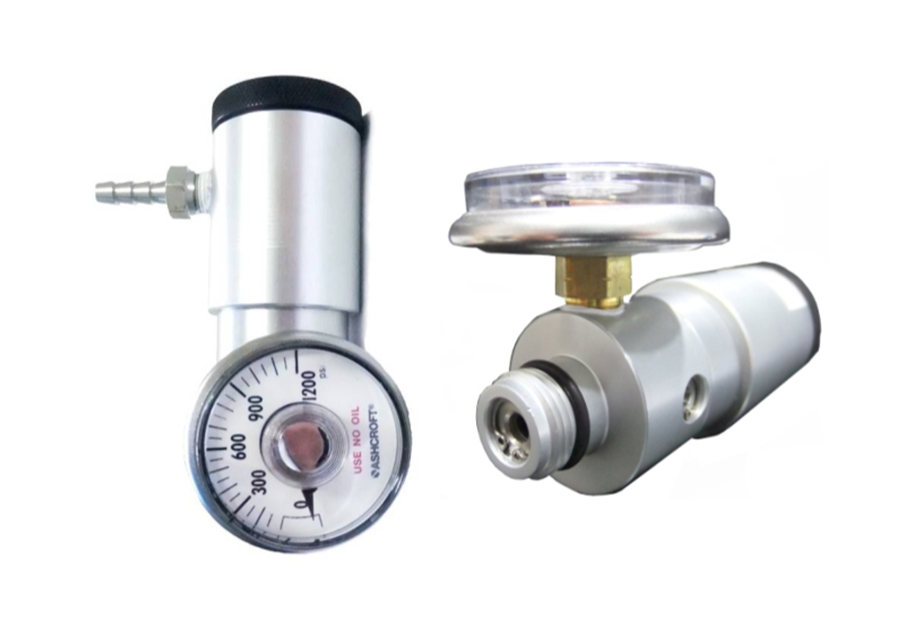

Regulator for application with internal pump draft
Inlet:
5/8” – 18 UNF (C10)
Outlet:
3/16″ Hose Barb
Max Pressure:
1000 psi
Demand Flow Actuated from Detector Suction Pump
Pressure Gauge Reading:
0 ~ 1,200 psi
Main Surface Material:
Aluminum
For sensitive application requiring consistent flow
Inlet:
5/8” – 18 UNF (C10)
Outlet:
3/16″ Hose Barb
Max Pressure:
2500 psi
Outlet Pressure:
0 – 150 psi
Pressure Gauge Reading:
0 ~ 3,000 psi 0 ~ 160 psi
Main Surface Material:
Nickel Plated (Stainless Steel Body Available for Very Reactive Mixture)
For Bump Test
Inlet:
5/8” – 18 UNF (C10)
Outlet:
3/16″ Hose Barb
Max Pressure:
1000 psi
Trigger Actuated
Pressure Gauge Reading:
0 ~ 1,200 psi
Main Surface Material:
Nickel Plated (Stainless Steel Body Available for Very Reactive Mixture)

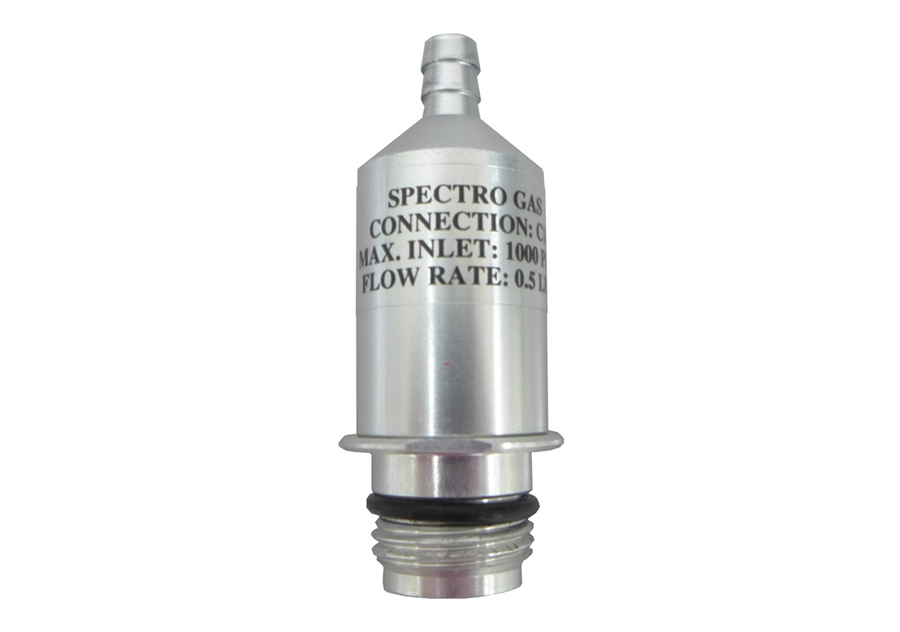

Economical Basic Regulator
Inlet:
5/8” – 18 UNF (C10)
Outlet:
3/16″ Hose Barb
Max Pressure:
1000 psi
Flow Rate:
0.3, 0.5, 1.0, 1.5 Litres/ Min
Main Surface Material:
Aluminum

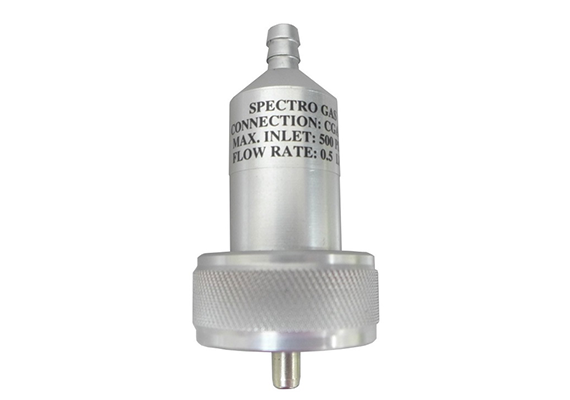

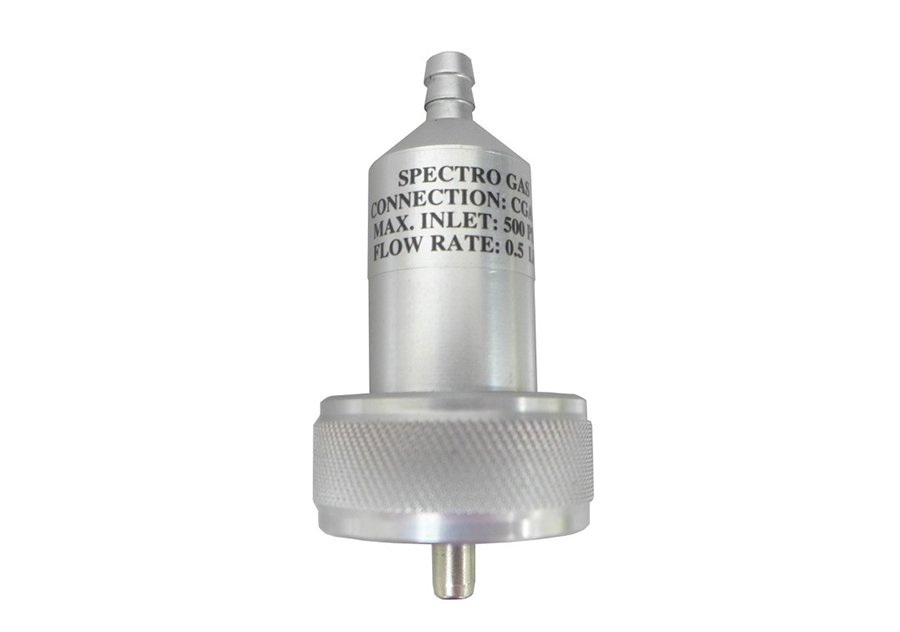

Economical Basic Regulator
Inlet:
CGA 600
Outlet:
3/16″ Hose Barb
Max Pressure:
500 psi
Flow Rate:
0.3, 0.5, 1.0, 1.5 Litres/ Min
Main Surface Material:
Aluminum

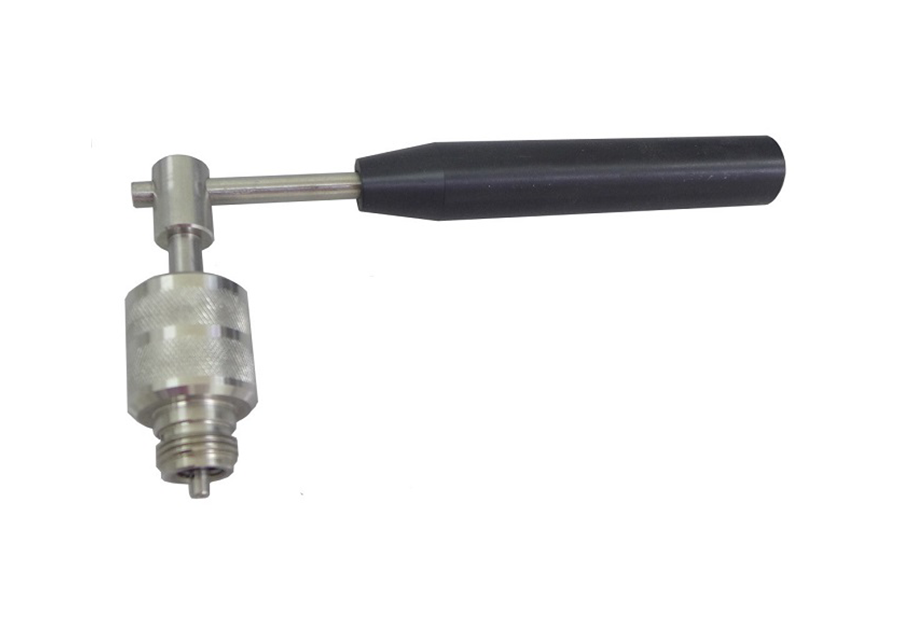

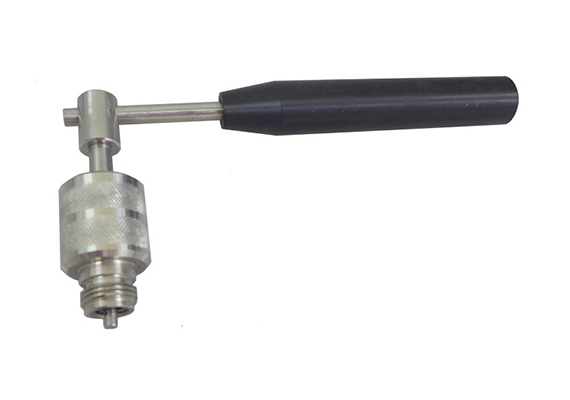

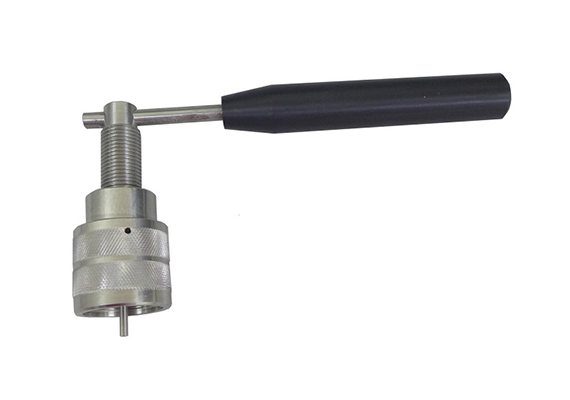

Removal of valve for disposal
Fittings:
For 5/8” – 18 UNF (C10)

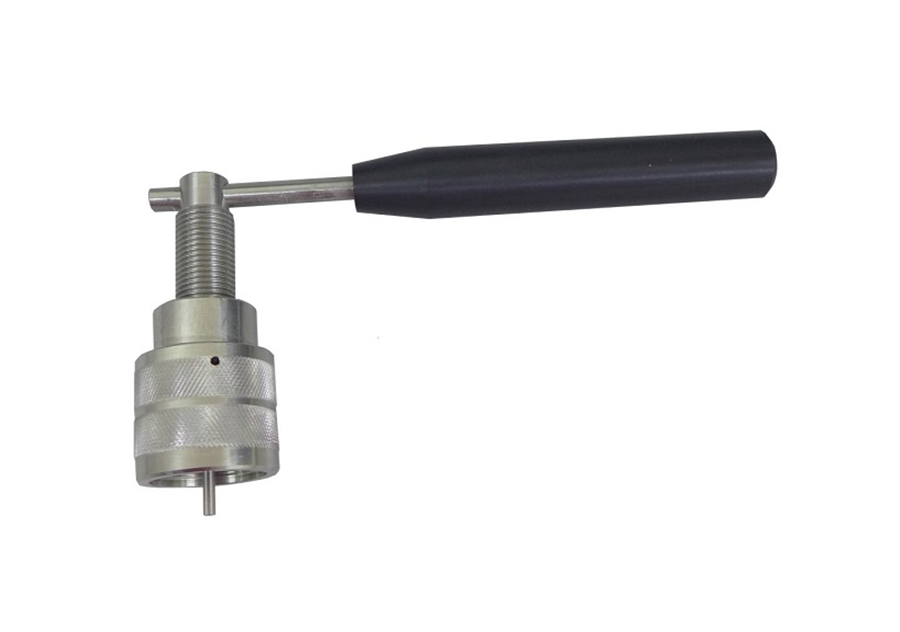

Removal of valve for disposal
Fittings:
For CGA 600

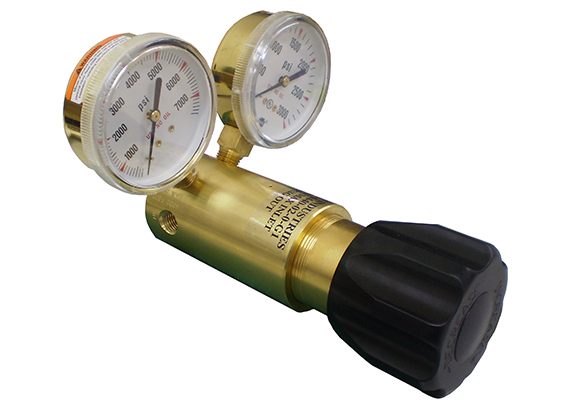

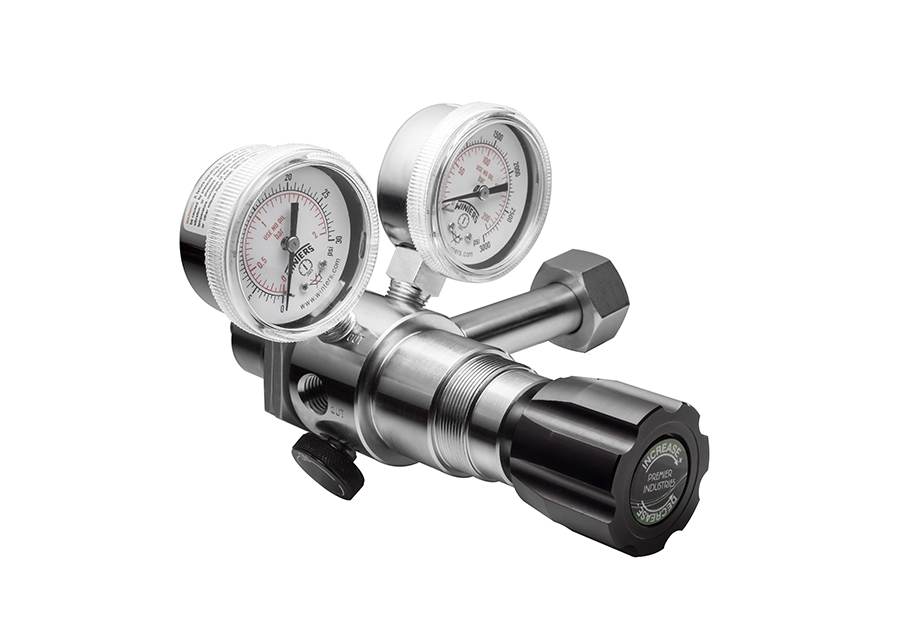

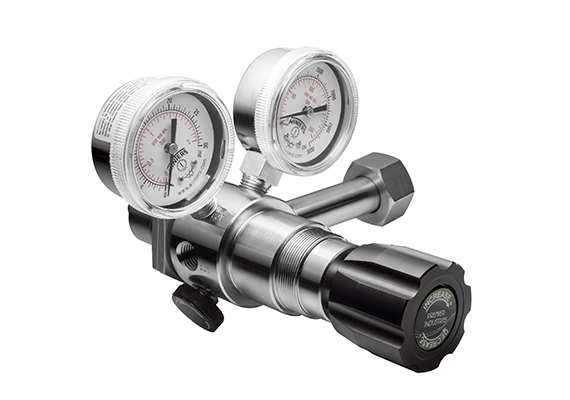

HPC Regulators

Inlet Selection :
1/4″, 1/8″ FNPT, CGA or BS Fittings
Outlet Selection :
1/4″, 1/8″ FNPT
Max Inlet Pressure :
3000 psi
Outlet Pressure Selection :
0 – 10, 0 – 50, 0 – 100, 0 – 500 psi
Pressure Gauge Selection :
Brass, Chrome Plated, Stainless Steel
Main Material Selection :
Brass, Chrome Plated, Aluminum, Stainless Steel

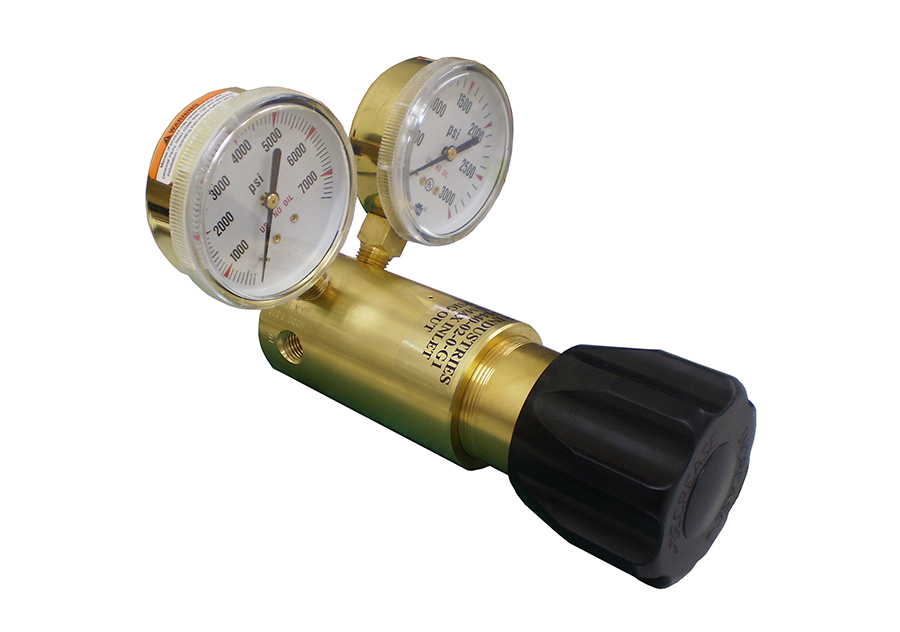

For high pressure testing
Inlet Selection :
1/4″ NPT, CGA or BS Fittings
Outlet Selection :
1/4″ NPT
Max Inlet Pressure :
3000 psi
Outlet Pressure Selection :
0 – 1000, 0 – 1500, 0 – 2000, 0 – 2500 psi
Pressure Gauge Selection :
Brass, Chrome Plated, Stainless Steel
Main Material Selection :
Brass, Chrome Plated, Aluminum, Stainless Steel

NRC Regulators Image

HPC Regulators Image
