MARINE RADIO Co., Ltd. Korea
MARINE RADIO Co., Ltd. Korea (MRC) was established by Eui Joong Hwang (1927-2016) in 1961 in Busan, Korea. MRC manufactures internal communication and broadcasting equipment for marine applications, such as public address systems, auto telephone systems, talk-back systems, marine clock systems, and communal aerial systems for several kinds of vessels. MRC occupies around 75% of the Korean shipbuilding market, and exports internal communication systems to Japan, China, Taiwan, Singapore, Vietnam, India, and countries in the Middle East.
MRC is the long-established company in the market of the internal communication systems for vessels in Korea, and it has successfully become one of the world’s leading companies in this field. Since 1992, MRC supplied its originally designed communication systems to more than 8000 vessels and offshore platforms. MRC, located in Busan, is composed of three factories and one office building with 140 employees. We work hard to offer safe navigation of ships to our customers, and we hope to get their ultimate satisfaction.
MRC has supplied the products to more than 11 countries including South Korea, MRC's home, with 5 814 vessels (72.3%), China with 983 (12.3%), and Japan with 862 (10.8%). MRC has supplied the products to 118 shipyards and/or customers. Amongst them, the shipyards with the largest quantity supplied are the three shipyards from HHI Group (2 784 vessels, 34.8%): HHI (1 399 vessels, 17.5%), HMD (849 vessels, 10.6%), and HSHI (536 vessels, 6.7%). Also, MRC supplied to DSME (851 vessels, 10.7%), SHI (733 vessels, 9.2%), STX (502 vessels, 6.3%), and HHIC (385 vessels, 4.8%). In Japan, MRC supplied to JMU (259 vessels, 3.2%), Tsuneishi (254 vessels, 3.2%), and in China to CSBC (195 vessels, 2.4%).-
MRC Various Products

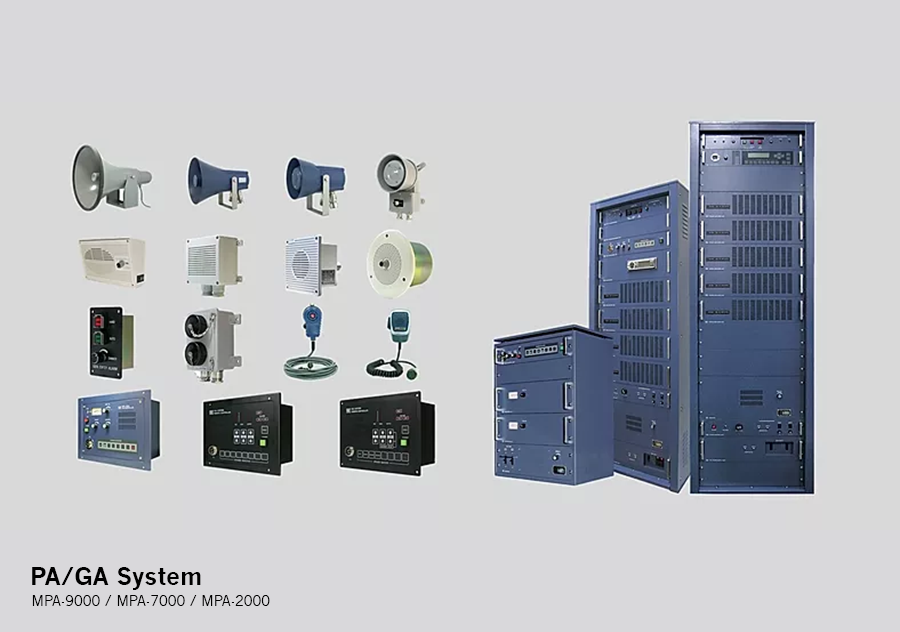

MODEL : MPA-9000 / MPA-7000 / MPA-2000
Public Address system is a marine and offshore PA/GA system. The Public Address System (PA) and General Alarm System (GA) are very important in ensuring the safety of facilities and human life. In particular, this system is designed to respond precisely to emergency situations through the connection with various alarm systems. In explosion endangered areas, an explosion-proof speaker or an intrinsically safe microphone is supposed to operate.-

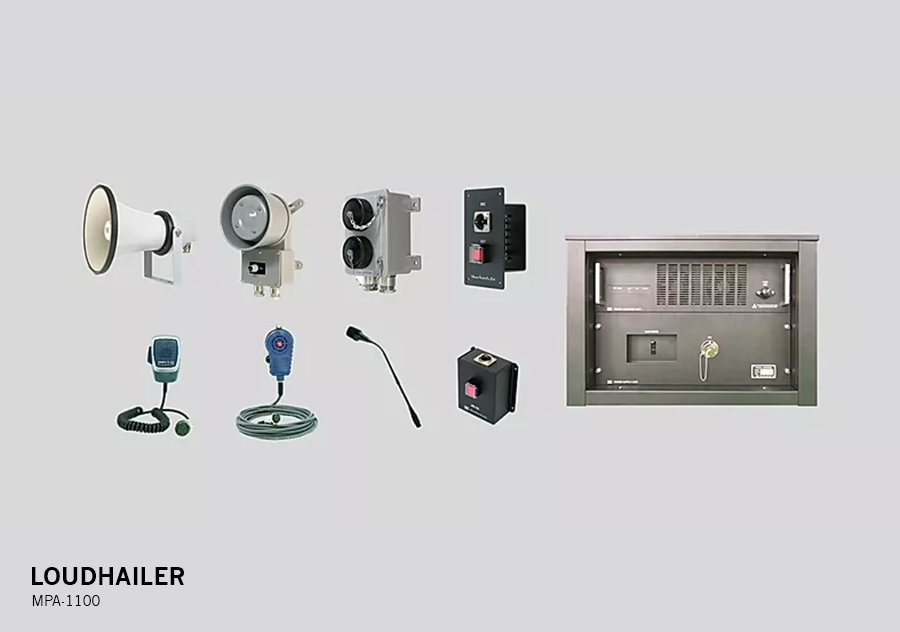

MODEL : MPA-1100
The MPA-1100 series Loudhailer is a multipurpose device that is used as a ship-to-shore hailer, ship-to-ship hailer, foghorn, audio amplifier, intercom, and/or alarm system. As a loudhailer, it amplifies the sound through the speakers to a 200~400 watt level and adjusts to the desired voice level. If an additional (optional) horn is added to the system, the loudhailer output can be switched to either or both of the hailing horn positions from the front panel control. And the system is designed and manufactured to provide ease of installation and operation with excellent reliability.-

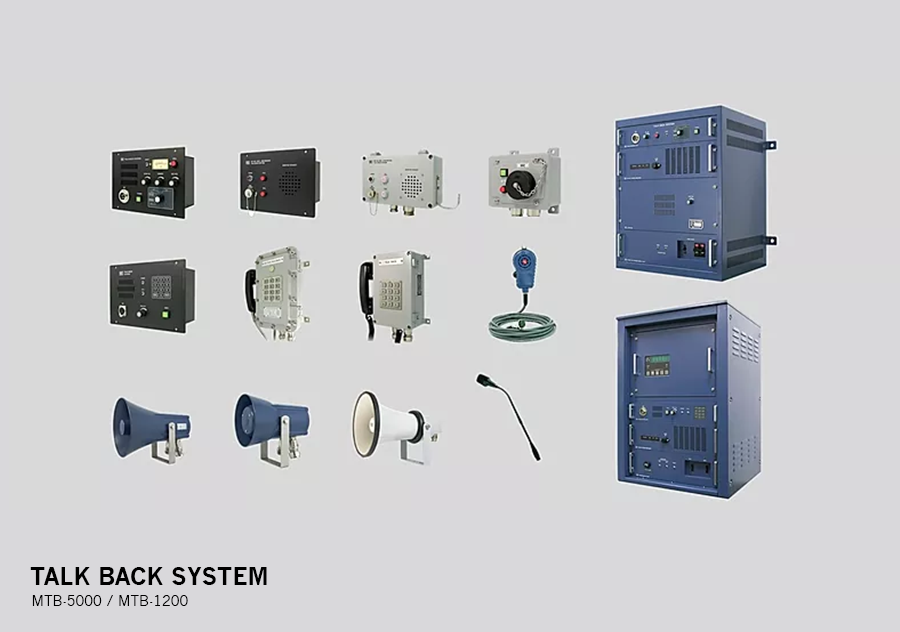

MODEL : MTB-5000 / MTB-1200
Talk Back System enables free broadcasting and telecommunication in a particular area such as deck and machinery areas in the ship. All substations can be called to the main and remote stations with the maximum capacity of 45 substations. It can be connected to the PAGA and the PABX system as well. Substations include four types: flush, wall, waterproof, and explosion-proof types, all of which can be interfaced to the Horn/Bell/Flashing Light, and the Foot Switch. This system has the functions of both ‘call in all’ and ‘call in group’ and of the automatic switch of power for the main and the emergency situations. The system was tested at the IEC60945 standard and approved for CE.-

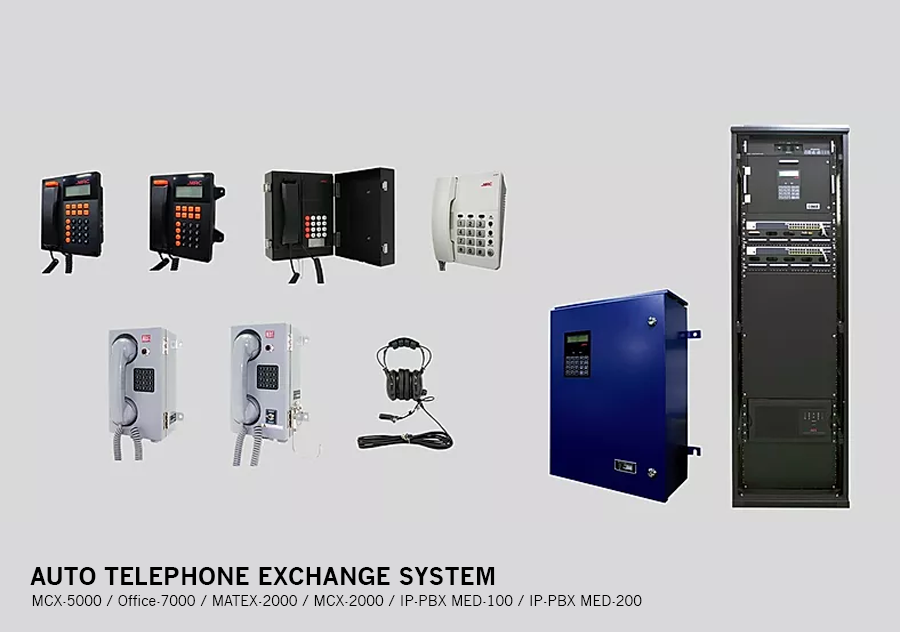

MODEL : MCX-5000 / OFFICE-7000 / MATEX-2000 / MCX-2000 / IP-PBX MED-100 / IP-PBX MED-200
Auto Telephone System is an electronic telephone switchboard with reliability and durability to meet various needs occurring inside or outside the ship. It operates with the interface between the central exchange unit, which is a micro-computer controlled system, and telecommunication equipment. Particularly, the system is suited to connecting not only to the telecommunication equipment such as Inmarsat-F, VSAT, Mini-M, and VSM but also to the Internet protocols and network communications. This system contains a minimum of 24 extension lines up to 500 and the lines can be installed by 8 or 16 units. As for the type of telephone, flush, wall, portable, waterproof, explosion-proof, and intrinsically safe (used for normal condition or in the area with the possibility of explosive gas in case of accident) types are available, which can be interfaced to Horn/Bell/Flashing Light.-

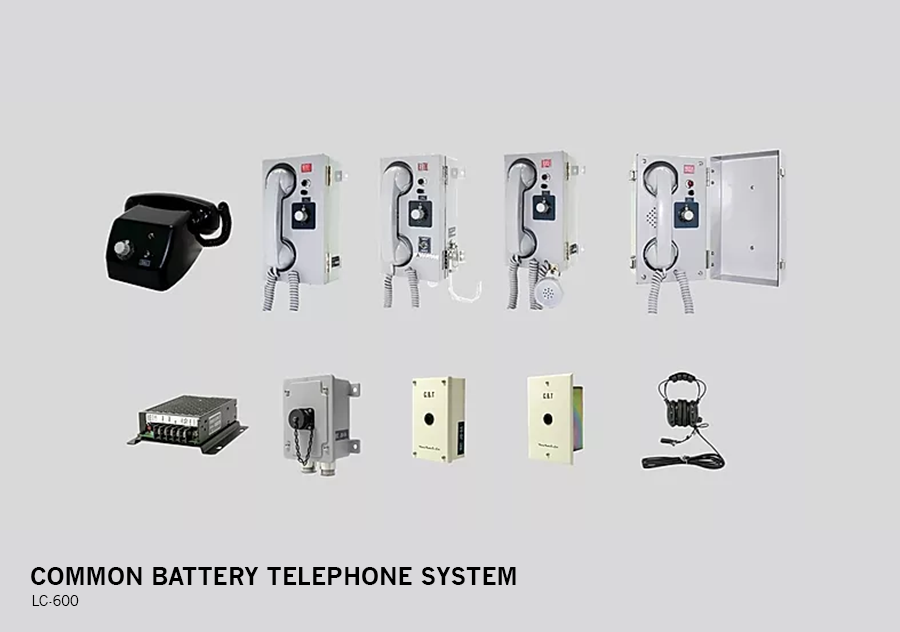

MODEL : LC-600
Common Battery Telephone system is used for communicating with the wheel house, the engine control room, and the steering gear room in case of emergency and for communicating between the areas or rooms when necessary. It is manufactured to be a waterproof and dustproof system appropriate for the vessel and adopts the input power supply of 24V DC to deliver communications and signals (bell, lamp, etc.). This system includes the following types: flush, wall, waterproof, portable, and intrinsically safe (used for normal condition or in the area with the possibility of explosive gas in case of accident) types, all of which can be interfaced to the Horn/Bell/Flashing Light, and the Foot Switch.-

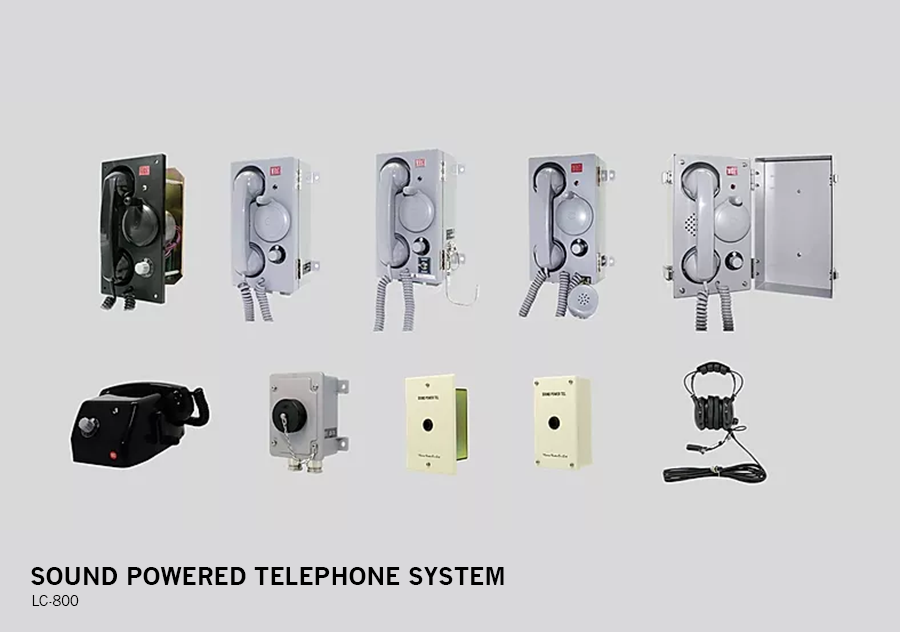

MODEL : LC-800
Sound Powered Telephone system is used for communicating with the wheel house, the engine control room, and the steering gear room in case of emergency and for communicating between the areas or rooms when necessary. Especially, being independent from the power supply of the vessel, this system allows for emergency communication at critical spots in the vessel even in case of power failure. It is manufactured to be a waterproof and dustproof appropriate for the vessel, and adopts the input power supply of 24V DC to deliver communications and signals (bell, lamp, etc.). This system includes the following types: flush, wall, waterproof, portable, and intrinsically safe (used for normal condition or in the area with the possibility of explosive gas in case of accident) types, all of which can be interfaced to the Horn/Bell/Flashing Light, and the Foot Switch.-

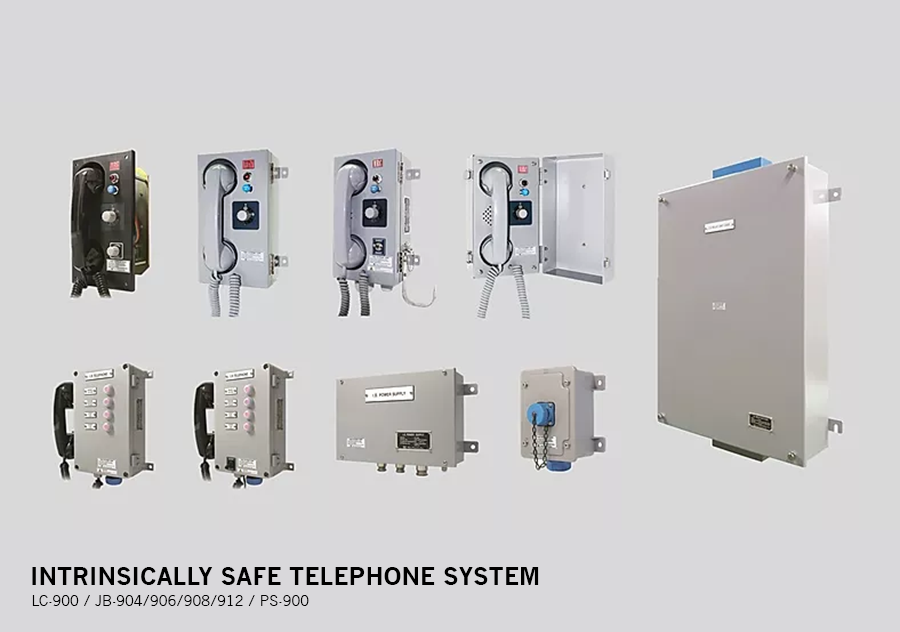

MODEL : LC-900 / JB-904/906/908/912 / PS-900
Intrinsically Safe Telephone system is designed to communicate at dangerous locations in the vessel (either at normal conditions or in the area with the possibility of explosive gas in case of accident), as it performs perfectly for the intrinsically safe construction. The structure of this system is carefully manufactured to be humidity, water, shock, and corrosion resistant in consideration of the maritime environment. The quality of voice signal and side tone was improved by adopting a low-noise OP-AMP in the telephone. Noises induced from the voice transmitter were remarkably reduced by using the circuits with high common mode rejection ratio (CMRR).-
MODEL : CAC-953A / CAC-953 / MAD-100
The MPA-1100 series Loudhailer is a multipurpose device that is used as a ship-to-shore hailer, ship-to-ship hailer, foghorn, audio amplifier, intercom, and/or alarm system. As a loudhailer, it amplifies the sound through the speakers to a 200~400 watt level and adjusts to the desired voice level. If an additional (optional) horn is added to the system, the loudhailer output can be switched to either or both of the hailing horn positions from the front panel control. And the system is designed and manufactured to provide ease of installation and operation with excellent reliability.-
MODEL : MCS-970 / MCS-980
The MPA-1100 series Loudhailer is a multipurpose device that is used as a ship-to-shore hailer, ship-to-ship hailer, foghorn, audio amplifier, intercom, and/or alarm system. As a loudhailer, it amplifies the sound through the speakers to a 200~400 watt level and adjusts to the desired voice level. If an additional (optional) horn is added to the system, the loudhailer output can be switched to either or both of the hailing horn positions from the front panel control. And the system is designed and manufactured to provide ease of installation and operation with excellent reliability.-

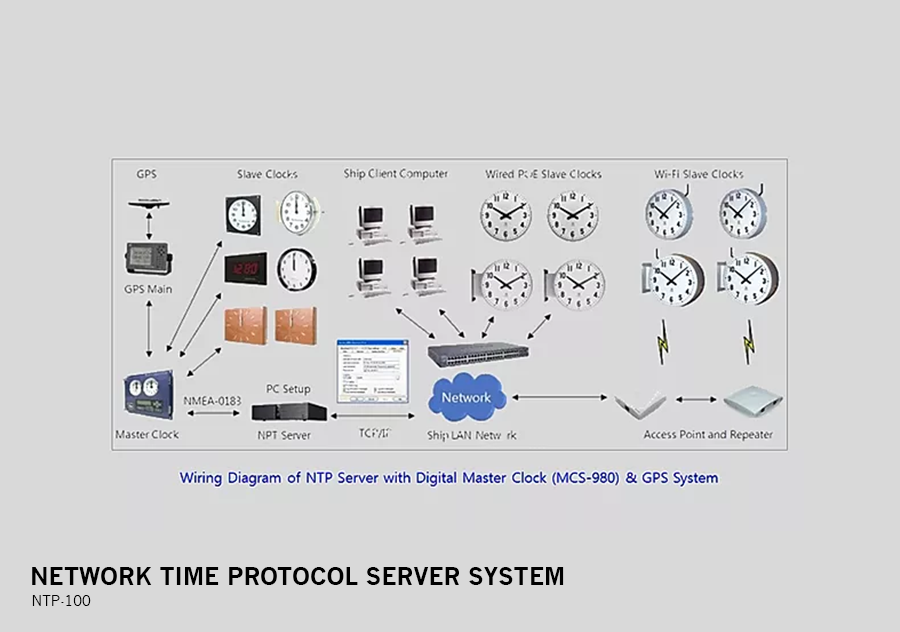

MODEL : NTP-100
The NTP-100 provides secure synchronised timing for ship network system. The NTP Server is the solution for stable and precise timing on your network with GPS via Marine Master Clock System. The MRC (MCS-980) master clock system ensures the synchronization of all IT devices on the same network. Typically, this is done through the network time protocol (NTP) on the active portion of the communications infrastructure. The MRC NTP-100 is based on GPS and Master clock system technology for synchronising to satellites’ atomic clocks. This enables computer networks to synchronise all elements of network hardware and software (including system logs) to the millisecond over LANs and/or WANs anywhere on the vessel.-

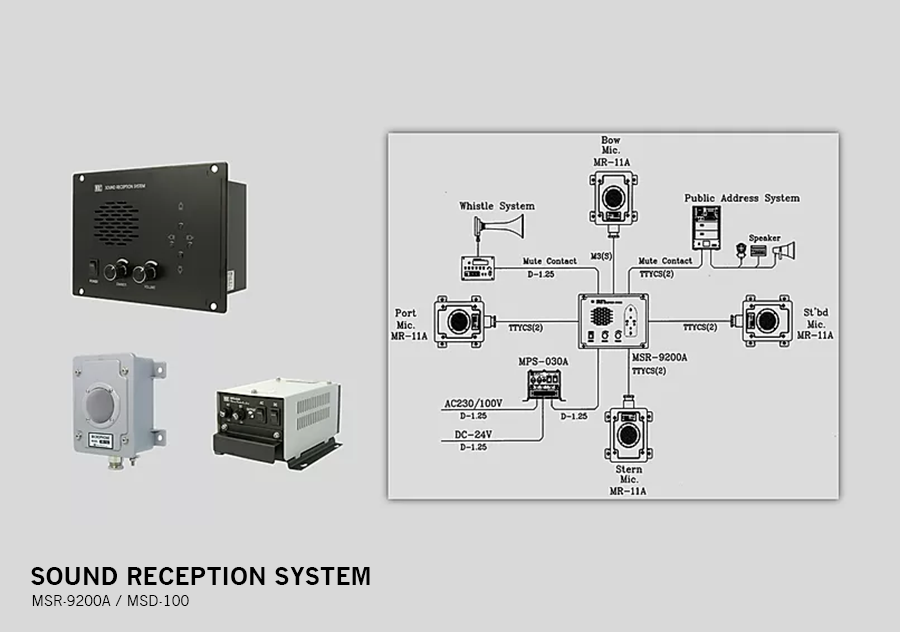

MODEL : MSR-9200A / MSD-100
Sound Reception System is a device for the wheelhouse isolated from the outside to pick up the signals clearly coming from other vessels by sensing the sound waves (70Hz-820Hz) outside the vessel. A sound amplifier and speakers are installed in the wheelhouse, and four waterproof microphones are connected to the outside. It is possible to figure out the direction of sound as the speakers in the wheelhouse play the amplified sound from the microphones installed outside. The level of output sound can be controlled and interfaced to the PAGA and Whistle systems.-

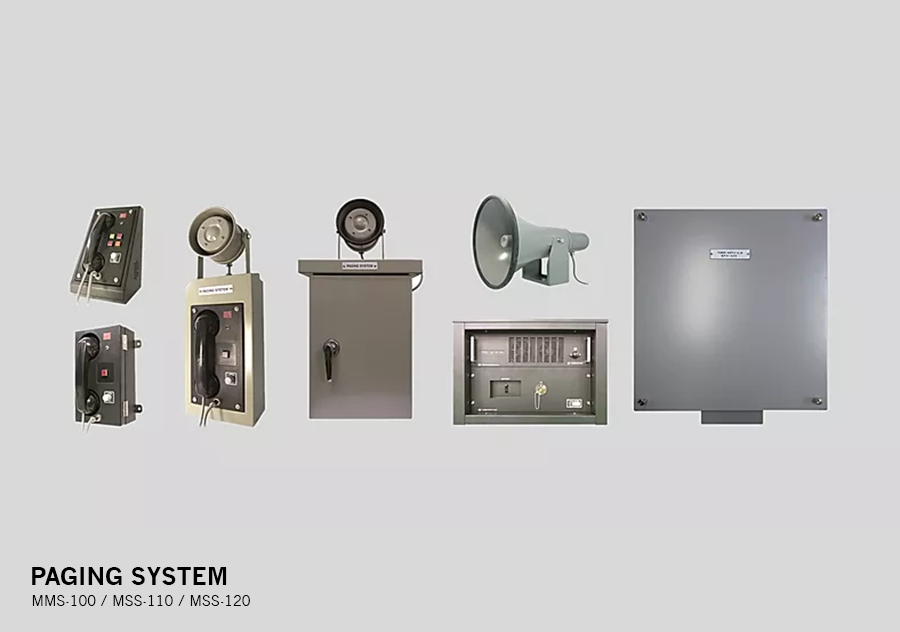

MODEL : MMS-100 / MSS-110 / MSS-120
Paging System is a device to enhance work efficiency and safety by facilitating smooth communication between workers in crane operation. This device is installed in the crane, and is composed of a handset station and a speaker. "Call in all", "call in group", and talk back channels are provided, and alarm bell can be set in case of emergency. The Paging System is vibration, dust, and humidity proof, and is designed to be not affected by the induced noise coming from the electric power. It is also possible for the wheelhouse to call all units in the vessel and communicate through the handset or the hands-free devices (Goose Neck Microphone and Foot Switch).-
MODEL : ---

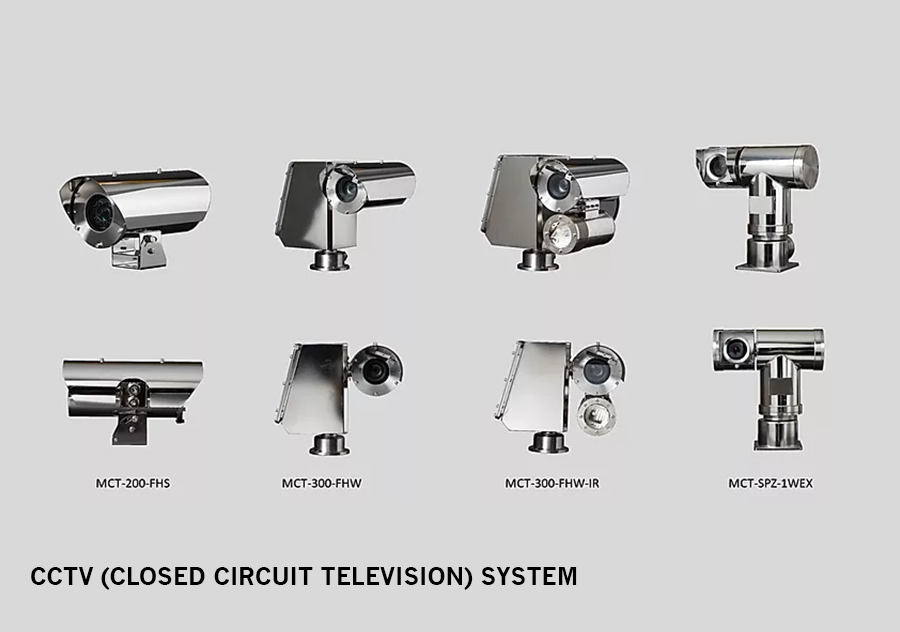

This product provides a complete visual monitoring solution even when a limited bandwidth and memory space are available by adopting a very efficient method of video compression and minimising transmission load. A coaxial cable (online) system, a UTP cable (network IP) system, or a system using both are available to be used in the system. For the camera, the products come with various types such as indoor, speed dome, waterproof, explosion-proof, fixed, and pan/tilt/rotation types. The CCTV system includes cameras, signal converter, DVR (digital video recorder), matrix, control keyboard, and computer network.-

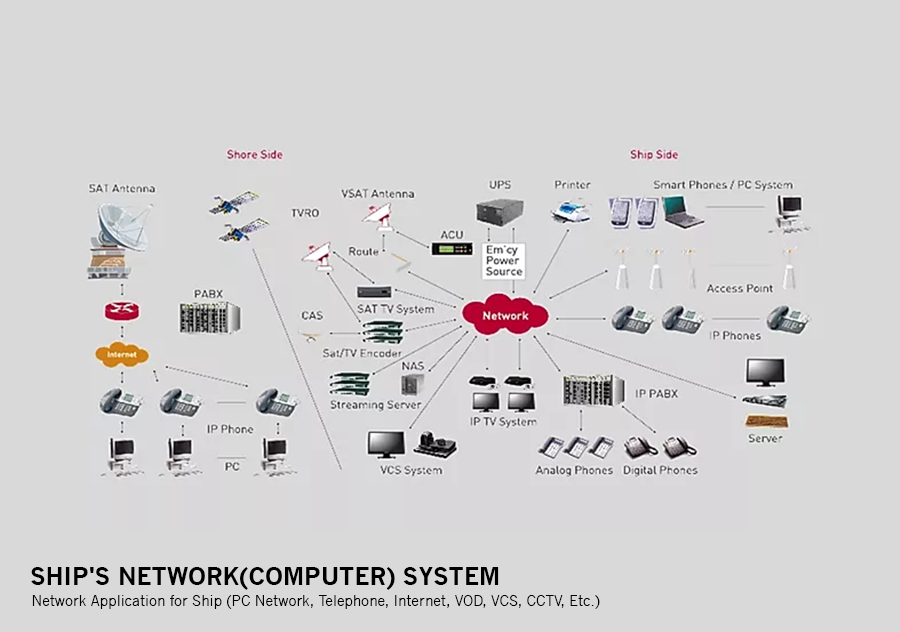

Network Application for Ship (PC Network, Telephone, Internet, VOD, VCS, CCTV, Etc.)
LAN (Local Area Network) and Server System: The local area network in the system is an advanced Layer 2/3 network with a large number of features. PoE function on all ports is the standard feature: i.e. an IP telephone does not need a separate power supply, which makes it easier and cheaper to install. IPTV/VOD System: This infotainment system contains a media encoder, video server, and a set top box in which it can distribute IPTV, internet radio, and any other video data (multimedia) source through the network to provide entertainment on board.
Video Conference system: The Video Conference system provides organisations with a budget friendly video conferencing solution perfect for real-time, multimedia communication. A number of useful software add-ons are available for the system free of charge, such as Screen Share, our wireless content sharing software for PCs, and VCLink, our exclusive app for instantly sharing live images and snapshots from a mobile device. CCTV (Closed Circuit Television): Video and audio signal for monitoring purpose are digitised and transmitted through the network and internet connection. The ultimate benefit of digital CCTV over analogue CCTV system is greater flexibility, better performance, and easier installation.-
NETWORK

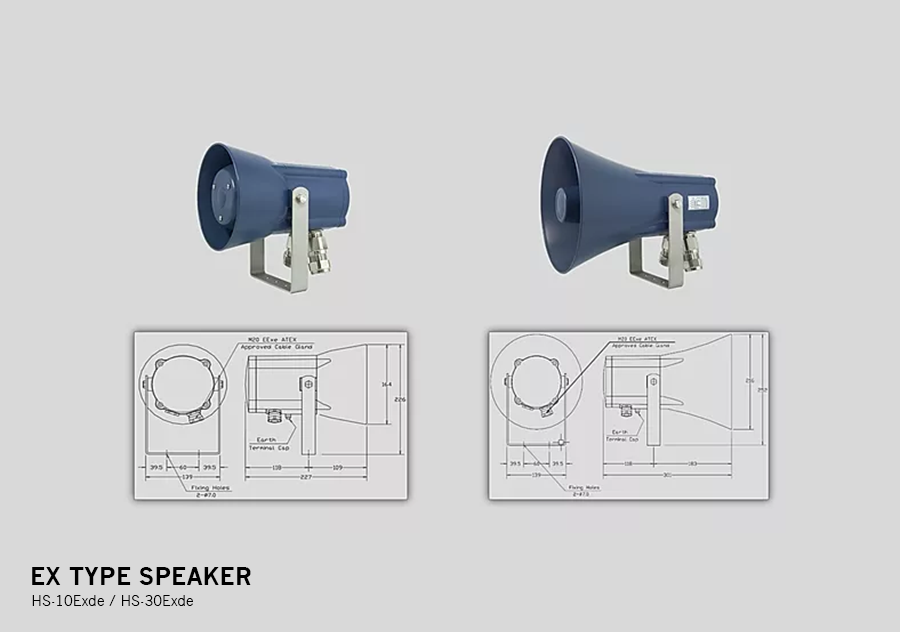

MODEL : HS-10Exde / HS-30Exde
HS-10 Exde Speaker is officially certified by satisfying the ATEX request standard 94/9/EC, EN60079-0, EN60079-1, and EN60079-7. This type of speakers can be mounted in the area that requires Group II, Zone 1 and 2, Gas class "B, and temperature class T6. The product employs the certified flameproof components and cable glands, yet using this product in Zone 0 is strongly discouraged. Speaker is designed to use in possibly hazardous locations (outdoor type), i.e. the speaker prevents undesirable incidents which can be caused by gas, dust, explosion, etc. It has been developed for safety in hazardous circumstances. This speaker reduces the chance of fire or explosion by adopting a flameproof system that delivers no hazardous elements such as flames and sparks toward the outside of the speaker in a work environment where flammable gas, steam, or dust is present.-
MODEL : ---
The Best Solution for Broadband VSAT (V61//85/100/120/240/300, V-series) at sea satellite antenna: Full 3-axis gyro stabilised tracking system that keeps the antenna pointing at the satellite, even in rough seas or when manoeuvring the ship at high speed provides high quality, consistent, always-on broadband data connections. The Super Track V-series is the perfect solution for owners of leisure craft, small commercial vessels as well as large and military vessels worldwide, who require the same Internet experience at sea that they use at home and at office. The V-series antenna will bring lightning-fast broadband connections and simultaneous, reliable telephone service to the vessel at an affordable rate. Best of all, the system's compact design is easy to install and looks great on any vessel. Enjoy always-on high speed internet, e-mail, multiple lines of VoIP Phone and more with this system. Applications with V-Series VSAT System: E-mail service with internet environment, Video conference with VoIP telephone lines, and Mobile Wi-Fi phone, wireless Internet with Smartphones and a variety of IP user applications.-

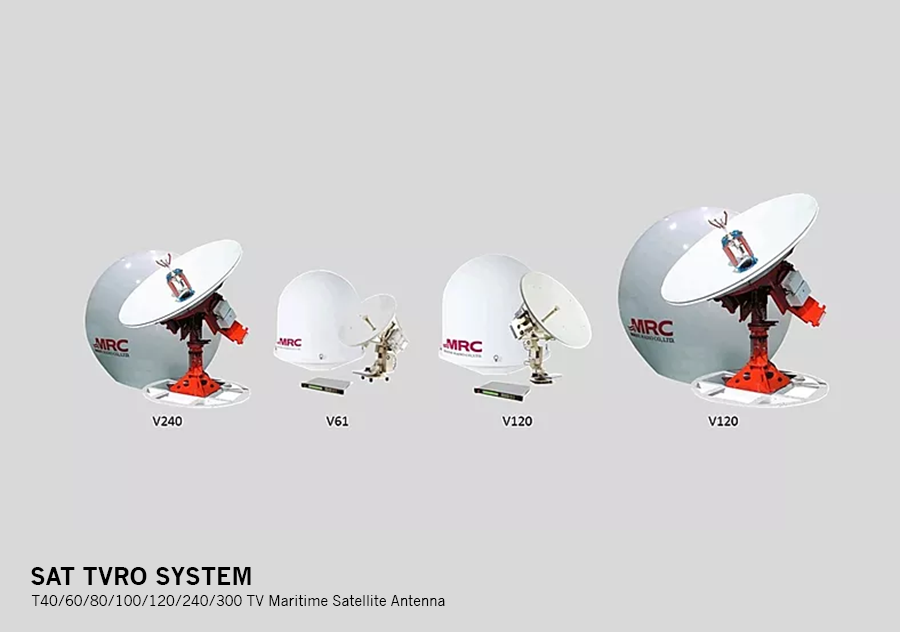

MODEL : T40/60/80/100/120/240/300 TV maritime satellite antenna
The T-Series TVRO is a popular maritime satellite television system, made for high performance and superior quality by Marine Radio Co., Ltd. It has a dish from 40cm to 300cm, which is perfect for vessels yet still maintains a wide coverage range. The ADE has a 3-axis stabilisation system with enhanced reception which many others cannot rival. It has strong frame antenna and built-in GPS for fast satellite acquisition and higher performance to stay locked on, which helps the mariners to receive analogue, digital, and HDTV signals while vessel is cruising in rough sea conditions. In addition to wide coverage range and built-in GPS for fast satellite acquisition, it also includes DVB-S2 (digital video broadcasting) signal identification, and MRC's proprietary antenna control and fast-track signal lock software, plus high-performance stabilisation which can track satellites even in inclement weather. Also the system will support multiple receivers and its programmes have worldwide coverage.-

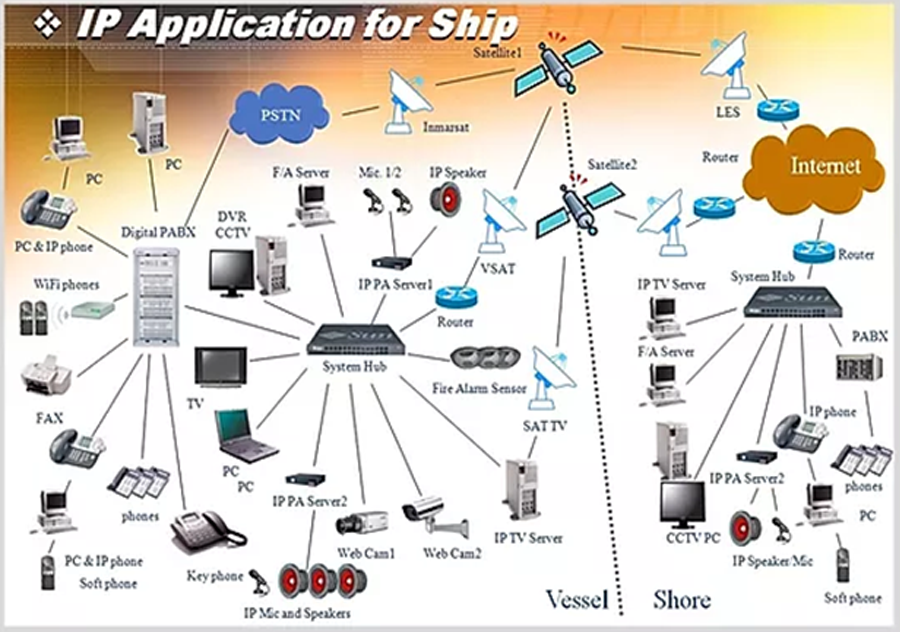

Digital Network Solution (IP/Wi-Fi & soft phone, CCTV, IPTV, PC & wireless network and servers)
DIS is an IP based communication system especially designed for marine uses. All IP based equipment can be connected via a digital network. PABX (Private Automatic Branch eXchange): Internal and external telephone communications are connected through this system. This system contains a combination of VOIP, digital and analogue internal telephones and external lines. VSAT, GSM and Inmarsat can be interfaced to the system. Wireless phones with roaming function are also available.
CCTV (Closed Circuit Television) : Video and audio signal for monitoring purposes are digitised and transmitted through the network and internet connection. The ultimate benefit of digital CCTV over analogue CCTV system is greater flexibility, better performance, and easier installation. IPTV/Internet Radio: This infotainment system contains a media encoder, video server and set top box. Through that, it can distribute IPTV, internet radio as well as any other video data (multimedia) source through the network to provide entertainment on board.-
DIS

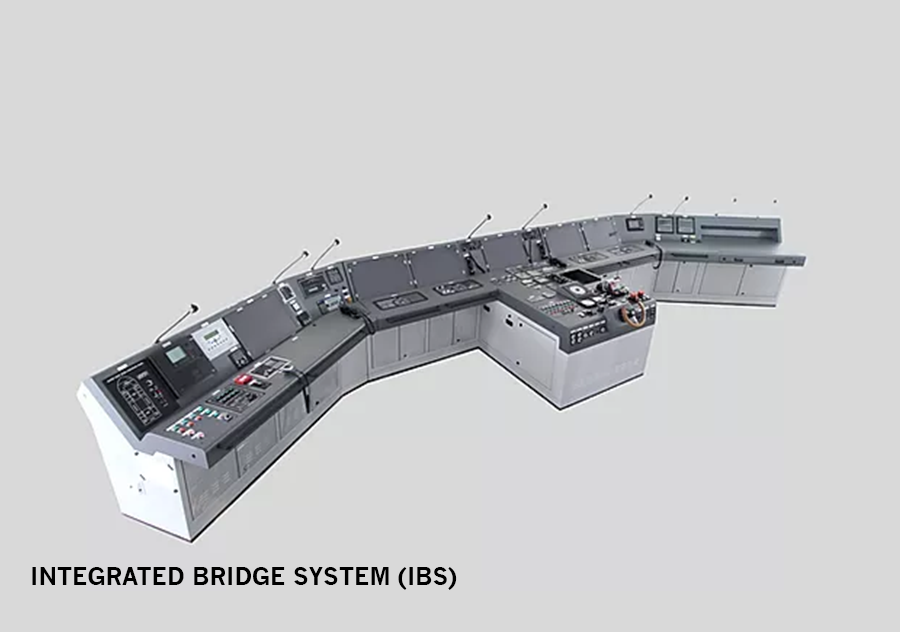

MODEL : ---

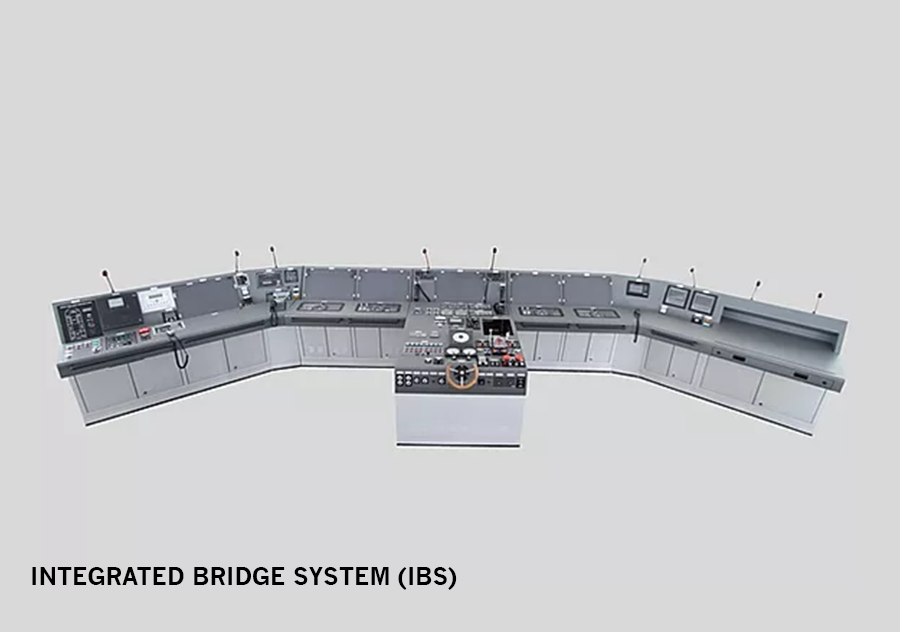

Integrated Bridge System (IBS) is a combination of interconnected systems to centralise access to the sensor information or command/control from workstations. It aims to increase safety and efficiency for the management of ship. The IBS is integrated on a console at bridge with the primary functions of standalone navigational aids and communication instruments. It enables the officers on navigational watch to perform their duty without impairing proper lookout. The IBS has been taking its shape through rapid development of navigation and communication systems in relation with the bridge configuration, the bridge workstation, and the one manned bridge operation system. Marine Radio Co. Ltd. (MRC) has been offering more than 100 IBSs to several Korean shipyards since 2004.-
